TAIL LAMP (MODEL W/X/Y/K1/K2)

GSX600F KATANA 1998 (W) USA (E03)

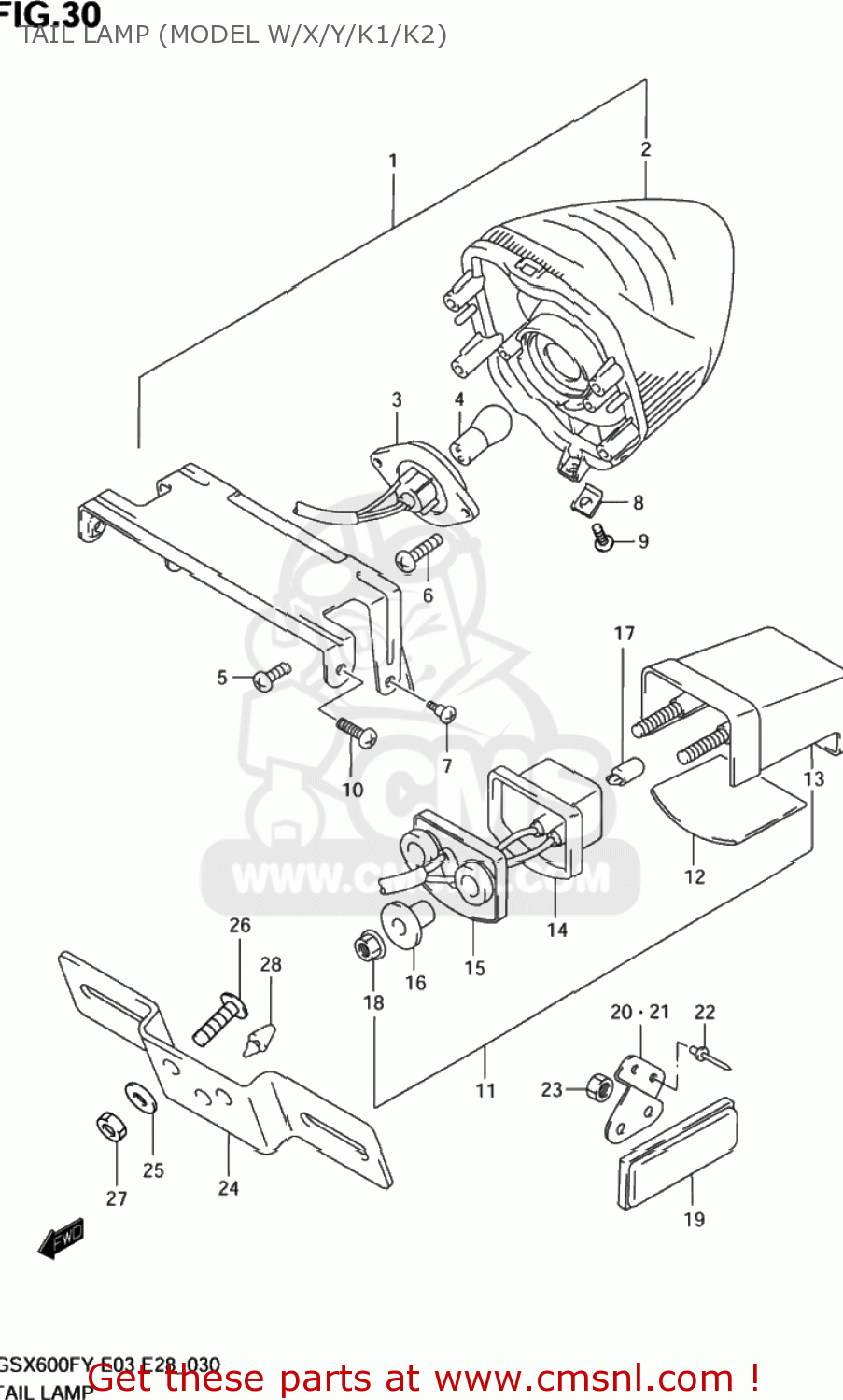

Tail lamp (model w/x/y/k1/k2) diagram GSX600F KATANA 1998 (W) USA (E03)

TAIL LAMP (MODEL W/X/Y/K1/K2) GSX600F KATANA 1998 (W) USA (E03)
TAIL LAMP (MODEL W/X/Y/K1/K2) GSX600F KATANA 1998 (W) USA (E03)
TAIL LAMP (MODEL W/X/Y/K1/K2) GSX600F KATANA 1998 (W) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3571008F30
ref: 1
LAMP ASSY,RR COMBINATION
€ 0.00
2
3572008F30
ref: 2
LAMP UNIT
€ 0.00
3
3571808F00
ref: 3
SOCKET & CORD
3571808F00
€ 38.00
4
0947112083
ref: 4
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
5
0321105163
ref: 5
03211-0516A
SCREW
0321105163
€ 1.50
6
0321104163
ref: 6
03211-0416A
SCREW
0321104163
€ 1.50
7
0913905057
ref: 7
SCREW(5X12.8)
0913905057
€ 3.50
8
0914805038
ref: 8
NUT
0914805038
€ 2.50
9
0324115163
ref: 9
03241-1516A
SCREW
0324115163
€ 2.00
10
0354105163
ref: 10
03541-0516A
SCREW
0354105163
€ 1.50
11
3591008F00
ref: 11
LAMP ASSY,LICENSE PLATE
3591008F00
€ 163.00
12
3591208F00
ref: 12
LENS
3591208F00
€ 8.50
13
3591708F00
ref: 13
COVER
3591708F00
€ 56.00
14
3591508F00
ref: 14
HOUSING
€ 8.50
15
3591808F00
ref: 15
SOCKET & CORD
€ 20.00
16
3576608F00
ref: 16
SPACER
€ 5.50
17
0947112081
ref: 17
BULB(12V5W)
0947112081
€ 1.50
18
0831620063
ref: 18
08316-2006A
NUT
0831620063
€ 2.00
19
3597007F00
ref: 19
35970-07F01
REFLECTOR ASSEMBLY,REAR
€ 20.50
20
3597508F00
ref: 20
BRACKET,RR SIDE REFLECTOR,R
€ 0.00
21
3597608F00
ref: 21
BRACKET,RR SIDE REFLECTOR,L
€ 0.00
22
0922904020
ref: 22
RIVET
0922904020
€ 2.50
23
0831000053
ref: 23
08310-0005A
NUT
€ 2.50
24
3592726E30
ref: 24
BRACKET,LICENSE PLATE
3592726E30
€ 8.00
25
0916006088
ref: 25
WASHER(6.5X20X1.6)
0916006088
€ 2.00
26
0214206163
ref: 26
02142-0616A
SCREW
0214206163
€ 2.50
27
0831000063
ref: 27
08310-0006A
NUT 6MM
0831000063
€ 2.00
28
0932106028
ref: 28
CUSHION
0932106028
€ 3.00
