CRANKCASE
GSX600F KATANA 2001 (K1) USA (E03)

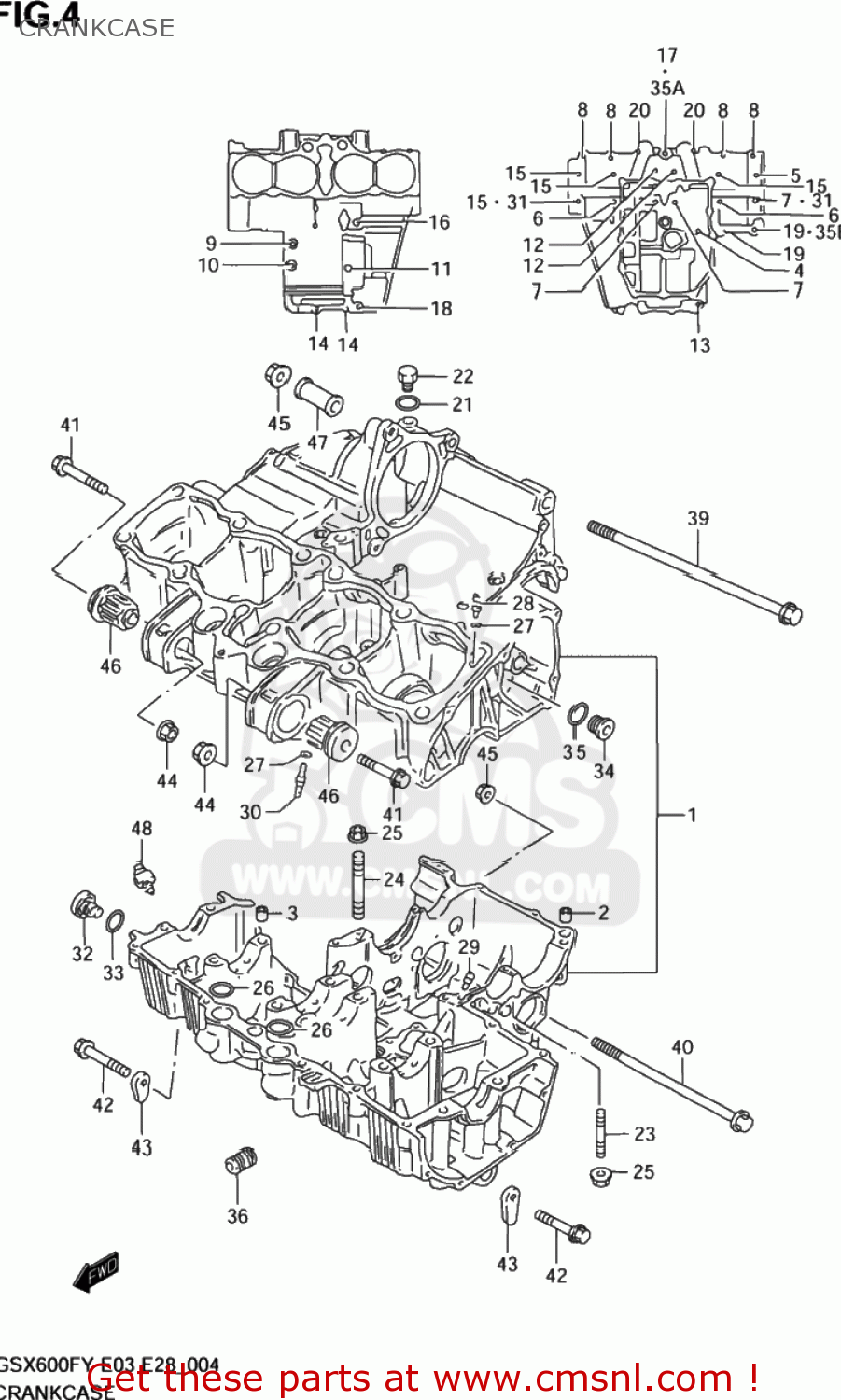

Crankcase diagram GSX600F KATANA 2001 (K1) USA (E03)
CRANKCASE GSX600F KATANA 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130119850
ref: 1-1
11301-19851
CRANKCASE SET
€ 1,581.50
1-2
1130119890
ref: 1-2
11301-19893
CRANKCASE SET
€ 1,521.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611017
ref: 3
PIN(8.4X11X20)
€ 6.50
4
0910306163
ref: 4
BOLT(6X105)
€ 4.00
5
0910308097
ref: 5
BOLT(8X105)
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
€ 3.00
8
0155006353
ref: 8
01550-0635A
BOLT
€ 2.50
9
0713006403
ref: 9
07130-0640B
BOLT
€ 3.50
10
0713006503
ref: 10
07130-0650B
BOLT,CL.COVER
€ 3.00
11
0713006653
ref: 11
07130-0665B
BOLT
€ 4.00
12
0713008653
ref: 12
07130-0865B
BOLT
€ 3.50
13
0155008603
ref: 13
01550-0860A
BOLT
€ 3.50
14
0155006407
ref: 14
BOLT
€ 2.50
15
0910308066
ref: 15
BOLT(8X95)
€ 3.00
16
0155006803
ref: 16
BOLT
€ 2.50
17
0155006503
ref: 17
01550-0650A
BOLT
€ 2.00
18
0155006603
ref: 18
01550-0660A
BOLT
€ 2.50
19
0155006553
ref: 19
01550-0655B
BOLT, HYDRAULIC UNIT NO.2
€ 2.00
20
0155006703
ref: 20
01550-0670B
BOLT
€ 2.50
21
0916812002
ref: 21
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
22
0924712103
ref: 22
PLUG(12X9)
€ 3.50
23
0142106408
ref: 23
01421-0640A
STUD BOLT
€ 2.50
24
0142106608
ref: 24
01421-0660A
STUD BOLT
€ 2.50
25
0831610063
ref: 25
08316-1006B
NUT
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
€ 2.00
28
0949314002
ref: 28
JET,AIR
€ 8.00
29
0949324010
ref: 29
JET
€ 12.00
30
0949326007
ref: 30
JET(13)
€ 13.50
31
0916808021
ref: 31
GASKET(8.5X17X2.3) (NAS)
€ 3.00
32
0924816003
ref: 32
09248-16007
PLUG
€ 16.50
33
0928017002
ref: 33
O RING(D:2.4,ID:16.8)
€ 3.50
34
0924814010
ref: 34
PLUG
€ 5.00
35-1
0916814002
ref: 35-1
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
35-2
0916806023
ref: 35-2
GASKET(5.8X13X1.2) (NAS)
€ 2.00
35-3
0916806023
ref: 35-3
GASKET(5.8X13X1.2) (NAS)
€ 2.00
36
1659106B00
ref: 36
16591-06B01
UNION,OIL STAND
€ 6.00
37
1222843414
ref: 37
PLATE,CRANK THRUST
€ 9.50
37
1222843414
ref: 37
PLATE,CRANK THRUST
€ 9.50
38-1
1222843411
ref: 38-1
PLATE,CRANK THRUST
€ 8.50
38-1
1222843411
ref: 38-1
PLATE,CRANK THRUST
€ 8.50
38-2
1222843412
ref: 38-2
PLATE,CRANK THRUST
€ 8.50
38-3
1222843413
ref: 38-3
PLATE,CRANK THRUST
€ 8.00
38-4
1222843414
ref: 38-4
PLATE,CRANK THRUST
€ 9.50
38-5
1222843415
ref: 38-5
BEARING,THRUST
€ 8.50
38-6
1222843416
ref: 38-6
PLATE,CRANK THRUST
€ 9.50
39
0910310151
ref: 39
BOLT(10X175)
€ 14.50
40
0910310237
ref: 40
BOLT(10X130)
€ 5.50
41
0155010553
ref: 41
01550-1055B
BOLT
€ 3.00
42
0910310298
ref: 42
BOLT(10X50)
€ 5.50
43
0915910020
ref: 43
NUT
€ 7.50
44
0831610103
ref: 44
08316-1010B
NUT
€ 2.00
45
0915910058
ref: 45
09159-10115
NUT
€ 4.00
46
1168106B00
ref: 46
BUSH,ENGINE MOUNTING
€ 26.00
47
1161020C00
ref: 47
SPACER,ENGINE MOUNT(L27)
€ 10.00
48-1
3782033D00
ref: 48-1
37820-33D10
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
48-2
3782033D10
ref: 48-2
SWITCH ASSY,OIL PRESSURE
€ 29.00
