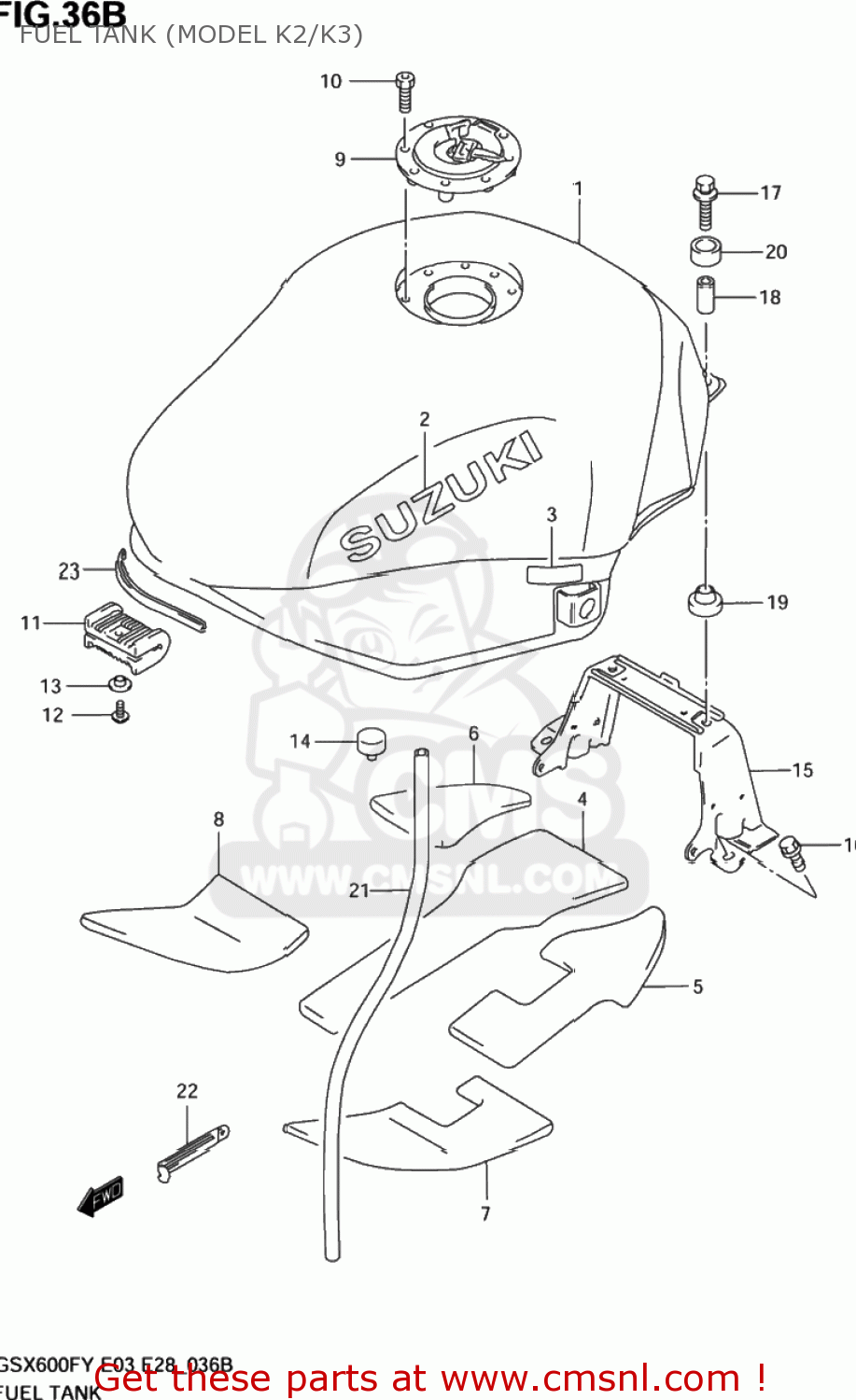

FUEL TANK (MODEL K2/K3)

ref

part #

description

quantity

1-1

4410008F00Y9H
ref: 1-1
44100-08F10-Y9H

TANK ASSY,FUEL

€ 440.50

1-2

4410008F00YC2
ref: 1-2
44100-08F10-YC2

TANK ASSY,FUEL

€ 440.50

1-3

4410008F30Y9H
ref: 1-3

TANK ASSY, FUEL (YELLOW)

€ 407.00

1-4

4410008F30YC2
ref: 1-4

TANK ASSY, FUEL (BLUE)

€ 407.00

1-5

4410008F10YEX
ref: 1-5

TANK ASSY,FUEL(BLUE)

€ 709.00

1-6

4410008F10YU9
ref: 1-6

TANK ASSY,FUEL(YELLOW)

€ 705.00

1-7

4410008F30YEX
ref: 1-7

TANK ASSY,FUEL(BLUE)

€ 0.00

1-8

4410008F30YU9
ref: 1-8

TANK ASSY, FUEL (YELLOW)

€ 0.00

2-1

6811147C10Y7L
ref: 2-1

EMBLEM

€ 10.00

2-2

6811147C10YD8
ref: 2-2

EMBLEM

€ 14.50

2-3

6811147C101ZY
ref: 2-3

EMBLEM

€ 13.00

2-4

6811147C1033J
ref: 2-4

EMBLEM,FUEL TANK

€ 9.50

3

3285110D00
ref: 3

PROTECTOR(12X40)

€ 4.50

4

4419108F00
ref: 4

SHIELD,FUEL TANK HEAT NO.1

€ 35.00

5

4419208F00
ref: 5

SHIELD,FUEL TANK HEAT NO.2

€ 31.50

6

4419308F00
ref: 6

SHIELD,FUEL TANK HEAT NO.3

€ 15.50

7

4419408F00
ref: 7

SHIELD,FUEL TANK HEAT NO.4

€ 17.00

8

4419508F00
ref: 8

SHIELD,FUEL TANK HEAT NO.5

€ 19.00

9-1

4420033870
ref: 9-1

CAP SET,FUEL TANK

€ 253.50

9-2

4420033890
ref: 9-2

CAP ASSY,FUEL TANK FILLER

€ 0.00

10

0910605017
ref: 10

BOLT(5X20)

€ 3.00

11

4451033D00
ref: 11

CUSHION,FUEL TANK FR

€ 23.50

12

0214205123
ref: 12
02142-0512A

SCREW 5X12

€ 1.50

13

0916905012
ref: 13

WASHER

€ 3.00

14

0932110011
ref: 14

CUSHION

€ 3.00

15

4455008F00
ref: 15

BRACKET,FUEL TANK RR

€ 38.50

16

0155008163
ref: 16
01550-0816A

BOLT

€ 3.00

17

0911606172
ref: 17

BOLT(6X30)

€ 2.50

18

0918006271
ref: 18

SPACER(6.5X9X18)

€ 2.00

19

0932010038
ref: 19

CUSHION

€ 4.00

20

0932014017
ref: 20

CUSHION

€ 3.00

21

4442308F00
ref: 21

HOSE,FUEL TANK WATER DRAIN

€ 20.00

22

0940408420
ref: 22

CLAMP(L:120 T:1.0)

€ 3.50

23

6824108F00
ref: 23

MOLDING,FUEL TANK

€ 6.50
