HANDLE LEVER (MODEL K/L/M/N/P/R/S/T)

GSX600FU 1989 (K) GERMANY (E22)

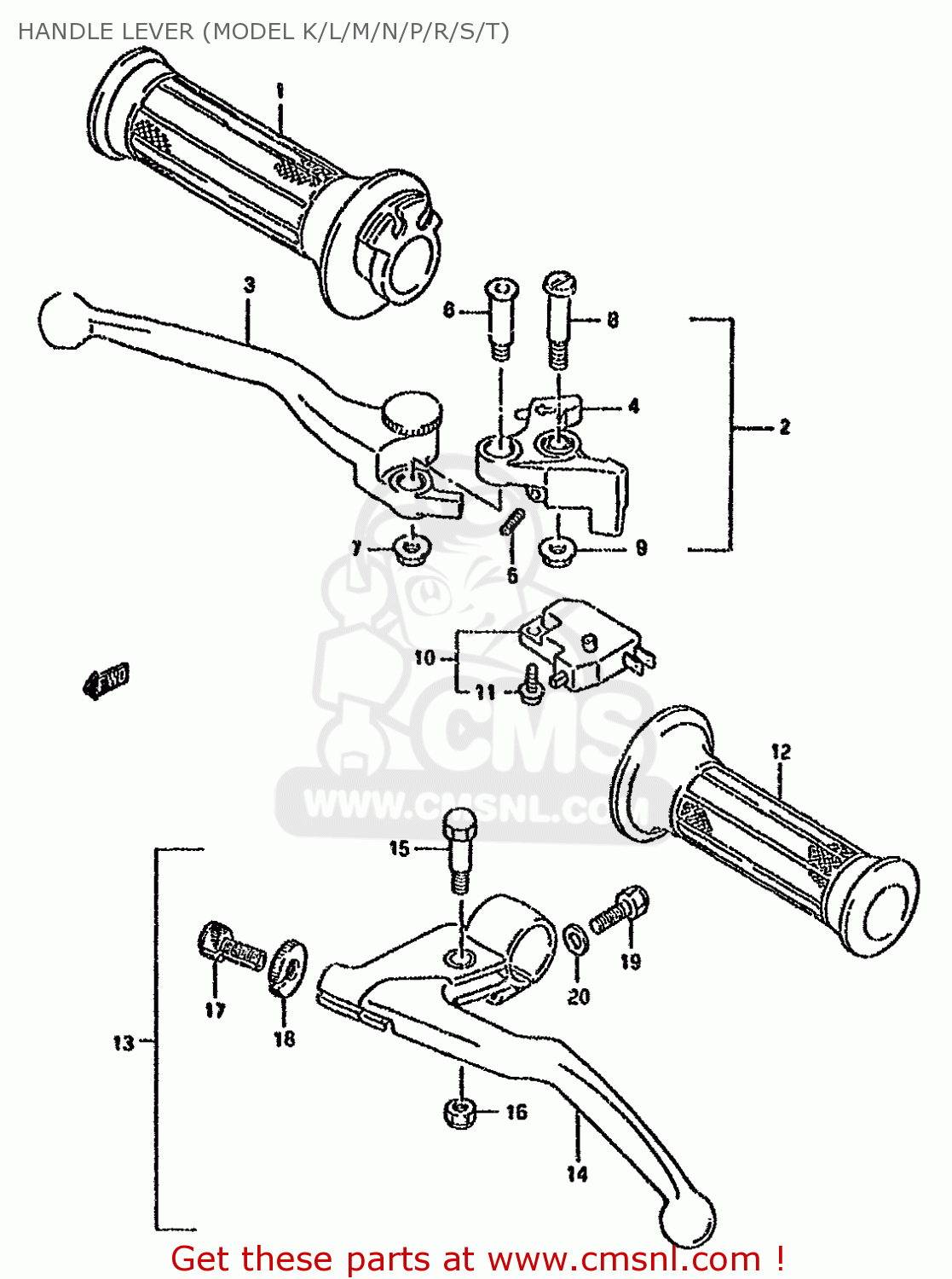

Handle lever (model k/l/m/n/p/r/s/t) diagram GSX600FU 1989 (K) GERMANY (E22)

HANDLE LEVER (MODEL K/L/M/N/P/R/S/T) GSX600FU 1989 (K) GERMANY (E22)
HANDLE LEVER (MODEL K/L/M/N/P/R/S/T) GSX600FU 1989 (K) GERMANY (E22)
HANDLE LEVER (MODEL K/L/M/N/P/R/S/T) GSX600FU 1989 (K) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1
5711049501
ref: 1
GRIP,THROTTLE
5711049501
€ 26.00
2
5730032C01
ref: 2
LEVER ASSEMBLY,BRAKE
€ 88.00
3
5742032C00
ref: 3
LEVER,ADJUST
5742032C00
€ 39.50
4
5743032C00
ref: 4
KNOCKER
5743032C00
€ 45.50
5
5743832C00
ref: 5
SPRING
5743832C00
€ 4.00
6
5743732C00
ref: 6
BOLT,LEVER
5743732C00
€ 6.50
7
0831931065
ref: 7
NUT
0831931065
€ 2.50
8
5743117C00
ref: 8
BOLT,LEVER PIVOT
5743117C00
€ 8.00
9
0831616064
ref: 9
NUT 6MM
0831616064
€ 2.50
10
5746017C00
ref: 10
SWITCH ASSEMBLY,STOP
5746017C00
€ 32.50
11
5746517C00
ref: 11
SCREW
5746517C00
€ 1.50
12
5721149500
ref: 12
GRIP,L
5721149500
€ 9.00
13
5750019C11
ref: 13
LEVER ASSY,CLUTCH
5750019C11
€ 54.00
14
5762019C01
ref: 14
LEVER,CLUTCH
5762019C01
€ 34.00
15
5743149110
ref: 15
BOLT,LEVER PIVOT
5743149110
€ 5.00
16
0831921065
ref: 16
NUT
0831921065
€ 2.50
17
5744144400
ref: 17
ADJUSTER,CABLE
5744144400
€ 5.50
18
5744211010
ref: 18
NUT,CABLE ADJUSTER
5744211010
€ 4.00
19
0120406204
ref: 19
BOLT
0120406204
€ 2.00
20
0832221064
ref: 20
WASHER
0832221064
€ 2.00
