PILLION RIDER HANDLE (MODEL R/S/T)

GSX600FU 1989 (K) GERMANY (E22)

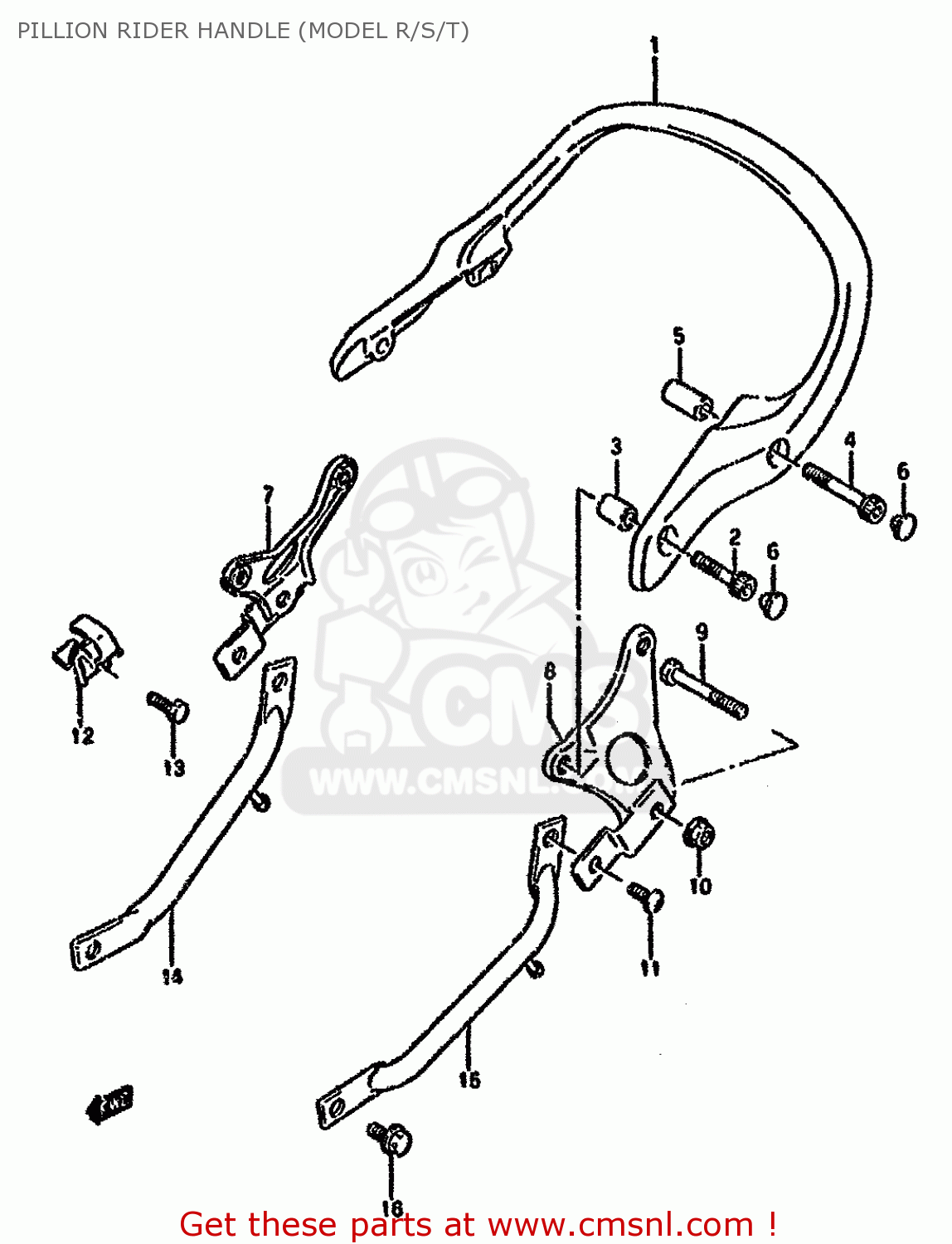

Pillion rider handle (model r/s/t) diagram GSX600FU 1989 (K) GERMANY (E22)

PILLION RIDER HANDLE (MODEL R/S/T) GSX600FU 1989 (K) GERMANY (E22)
PILLION RIDER HANDLE (MODEL R/S/T) GSX600FU 1989 (K) GERMANY (E22)
PILLION RIDER HANDLE (MODEL R/S/T) GSX600FU 1989 (K) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1
4621119C00019
ref: 1
HANDLE,PILLION RIDER
4621119C00019
€ 111.50
2
0713008353
ref: 2
BOLT
€ 4.00
3
0918008125
ref: 3
SPACER (8.6X13.8X21.5)
0918008125
€ 6.50
4
0713008553
ref: 4
BOLT
0713008553
€ 3.50
5
0918008136
ref: 5
SPACER (8.6X13.8X28)
0918008136
€ 9.00
6
0925006004
ref: 6
CAP(OD:14.5)
0925006004
€ 1.50
7
4622019C01
ref: 7
BRACKET,PILLION RIDER HANDLE,R
4622019C01
€ 13.00
8
4623019C01
ref: 8
BRACKET,PILLION RIDER HANDLE,L
€ 11.50
9
0157008553
ref: 9
BOLT
€ 3.50
10
0831620083
ref: 10
NUT
0831620083
€ 1.50
11
0214206203
ref: 11
SCREW
0214206203
€ 2.00
12
9572020C00
ref: 12
HOLDER,HELMET
€ 7.50
13
0157006203
ref: 13
BOLT
0157006203
€ 2.50
14
4397019C02
ref: 14
GRIP,REAR,RIGHT
4397019C02
€ 21.00
15
4398019C02
ref: 15
GRIP,RR,L
4398019C02
€ 14.00
16
0155008163
ref: 16
BOLT
0155008163
€ 3.00
11-1
0831626085
ref: 11-1
MODEL J/K/L/M/N
NUT M8
0831626085
€ 1.50
11-2
0831620087
ref: 11-2
MODEL P
NUT
0831620087
€ 3.00
12-1
0214206205
ref: 12-1
MODEL J/K/L/M/N
SCREW, CENTER
0214206205
€ 2.00
12-2
0214206207
ref: 12-2
MODEL P
SCREW
0214206207
€ 2.00
13
9572019C00
ref: 13
HOLDER,HELMET
€ 7.50
14-1
0110706205
ref: 14-1
MODEL J/K/L/M
BOLT
0110706205
€ 2.00
14-2
0113706205
ref: 14-2
MODEL N/P
BOLT
€ 2.50
15
0832121064
ref: 15
WASHER,LOCK
0832121064
€ 2.00
16-1
4397019C00
ref: 16-1
MODEL J/K
GRIP,REAR,RIGHT
4397019C00
€ 21.00
16-2
4397019C01
ref: 16-2
MODEL L/M/N/P
GRIP,REAR,RIGHT
€ 21.00
17-1
4398019C00
ref: 17-1
MODEL J/K
GRIP,REAR
4398019C00
€ 14.00
17-2
4398019C01
ref: 17-2
MODEL L/M/N/P
GRIP,REAR
€ 14.00
18
0151708165
ref: 18
BOLT, LOWER
0151708165
€ 3.00
