CRANKCASE COVER
GSX600FU2 1990 (L) GERMANY (E22)

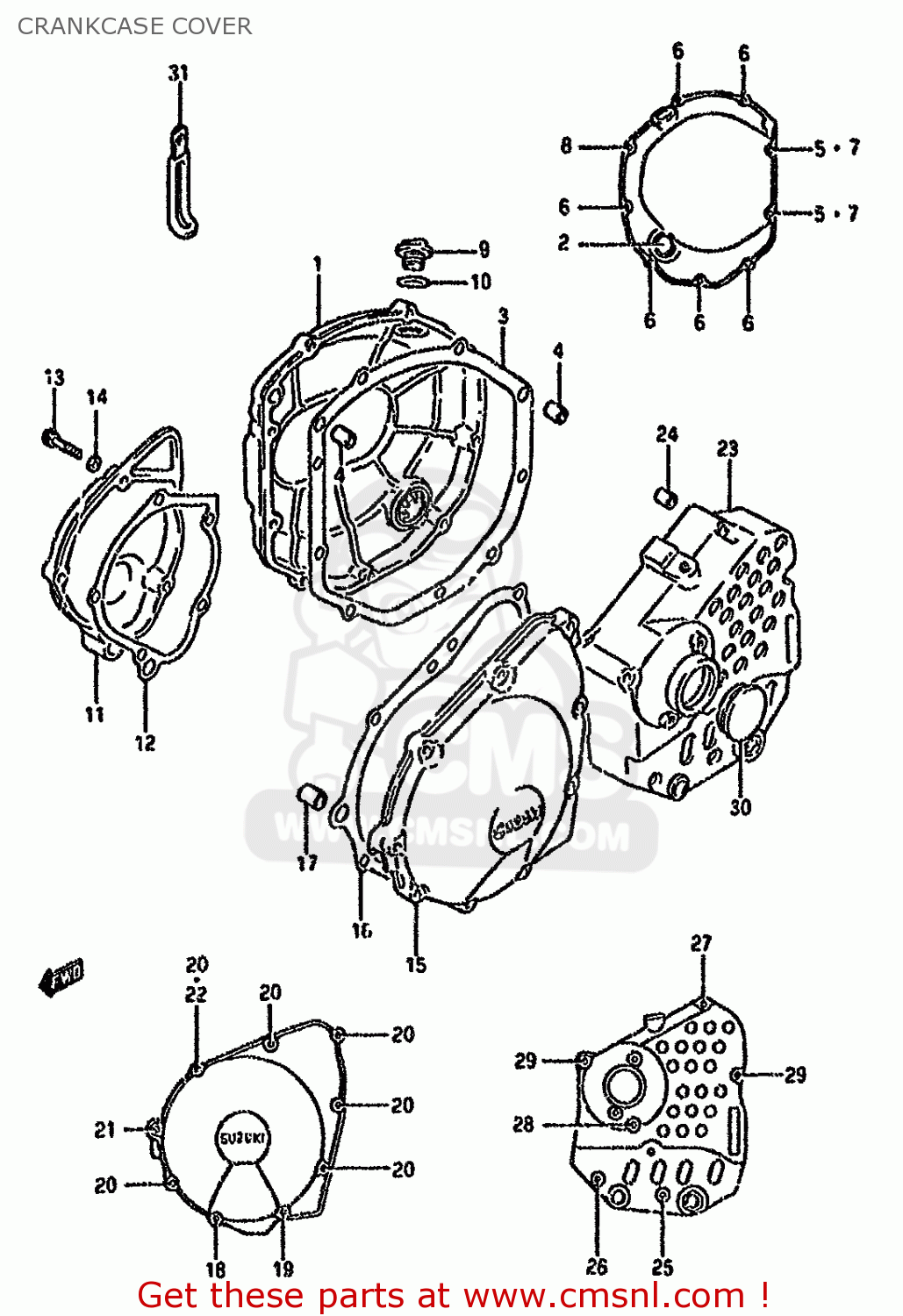

Crankcase cover diagram GSX600FU2 1990 (L) GERMANY (E22)
CRANKCASE COVER GSX600FU2 1990 (L) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134027A00
ref: 1-1
MODEL J
COVER,CLUTCH
€ 183.50
1-2
1134020C00
ref: 1-2
MODEL K/L/M/N/P/R/S/
COVER COMP,CLUTCH
€ 183.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3-1
1148227A10
ref: 3-1
MODEL J/K/L/M/N
GASKET,CLUTCH COVER (NAS)
€ 18.00
3-2
1148227A20
ref: 3-2
MODEL P/R/S/T
GASKET,CL COVER (NAS)
€ 18.00
4
0421109189
ref: 4
PIN
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
€ 2.00
6-1
0711006255
ref: 6-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
6-2
0713006253
ref: 6-2
MODEL R/S/T
BOLT,CL.COVER
€ 3.00
7-1
0711006305
ref: 7-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
7-2
0713006303
ref: 7-2
MODEL R/S/T
BOLT
€ 3.00
8-1
0711006355
ref: 8-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
8-2
0713006353
ref: 8-2
MODEL R/S/T
BOLT
€ 3.50
9-1
0925920012
ref: 9-1
MODEL J/K
PLUG
€ 6.50
9-2
0925920015
ref: 9-2
MODEL L/M/N/P/R/S/T
PLUG
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
€ 2.00
11-1
1138127A02
ref: 11-1
MODEL J
COVER,SIGNAL GENERATOR
€ 94.50
11-2
1138148B01
ref: 11-2
MODEL K/L/M/N/P/R/S/
COVER,SIGNAL GENERATOR
€ 72.00
12-1
1149127A10
ref: 12-1
MODEL J/K/L/M/N
GASKET,SIGNAL GENERATOR COVER (NAS)
€ 8.00
12-2
1149127A20
ref: 12-2
MODEL P/R/S/T
GASKET,SIGNAL GENERATOR COVER (NAS)
€ 8.00
13-1
0910606059
ref: 13-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
13-2
0910606082
ref: 13-2
MODEL R/S/T
BOLT(6X22)
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
€ 2.00
15-1
1135117C00
ref: 15-1
MODEL J
COVER,STARTER GEAR
€ 160.00
15-2
1135120C00
ref: 15-2
MODEL K/L/M/N/P/R/S/
COVER,STARTER GEAR
€ 159.50
16-1
1148327A10
ref: 16-1
MODEL J/K/L/M/N
GASKET,STARTER GEAR COVER (NAS)
€ 14.50
16-2
1148327A20
ref: 16-2
MODEL P/R/S/T
GASKET,STARTER GEAR COVER (NAS)
€ 14.50
17-1
0920611005
ref: 17-1
MODEL J/K/L/M/N/P/R/
PIN (11X20)(SUS)
€ 6.50
17-2
0920611017
ref: 17-2
MODEL T
PIN(8.4X11X20)
€ 6.50
18-1
0711006165
ref: 18-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
18-2
0713006163
ref: 18-2
MODEL R/S/T
BOLT,OIL FILLE
€ 3.00
19-1
0711006205
ref: 19-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
19-2
0713006203
ref: 19-2
MODEL R/S/T
BOLT,CRKCASE,R
€ 3.00
20-1
0711006255
ref: 20-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
20-2
0713006253
ref: 20-2
MODEL R/S/T
BOLT,CL.COVER
€ 3.00
21-1
0711006405
ref: 21-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
21-2
0713006403
ref: 21-2
MODEL R/S/T
BOLT
€ 3.50
22
0916806024
ref: 22
GASKET(5.8X11X1.2) (NAS)
€ 2.00
23-1
1136119C03
ref: 23-1
MODEL J
COVER,ENGINE SPROCKET
€ 165.00
23-2
1136120C01
ref: 23-2
MODEL K/L/M/N/P/R/S/
COVER,ENGINE SPROCKET
€ 136.00
24
0421109129
ref: 24
PIN
€ 2.00
25-1
0711006405
ref: 25-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
25-2
0713006403
ref: 25-2
MODEL R/S/T
BOLT
€ 3.50
26-1
0711006305
ref: 26-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
26-2
0713006303
ref: 26-2
MODEL R/S/T
BOLT
€ 3.00
27-1
0711006505
ref: 27-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
27-2
0713006503
ref: 27-2
MODEL R/S/T
BOLT,CL.COVER
€ 3.00
28-1
0711006655
ref: 28-1
MODEL J/K/L/M/N/P
BOLT
€ 4.00
28-2
0713006653
ref: 28-2
MODEL R/S/T
BOLT
€ 4.00
29-1
0711006705
ref: 29-1
MODEL J/K/L/M/N/P
BOLT
€ 4.00
29-2
0713006703
ref: 29-2
MODEL R/S/T
BOLT
€ 4.00
30
0925030003
ref: 30
CAP(OD:36)
€ 4.00
31
0940406426
ref: 31
MODEL J/K
CLAMP
€ 3.00
