REAR CUSHION LEVER (MODEL K/L/M/N/P/R/S/T)

GSX600FU2 1990 (L) GERMANY (E22)

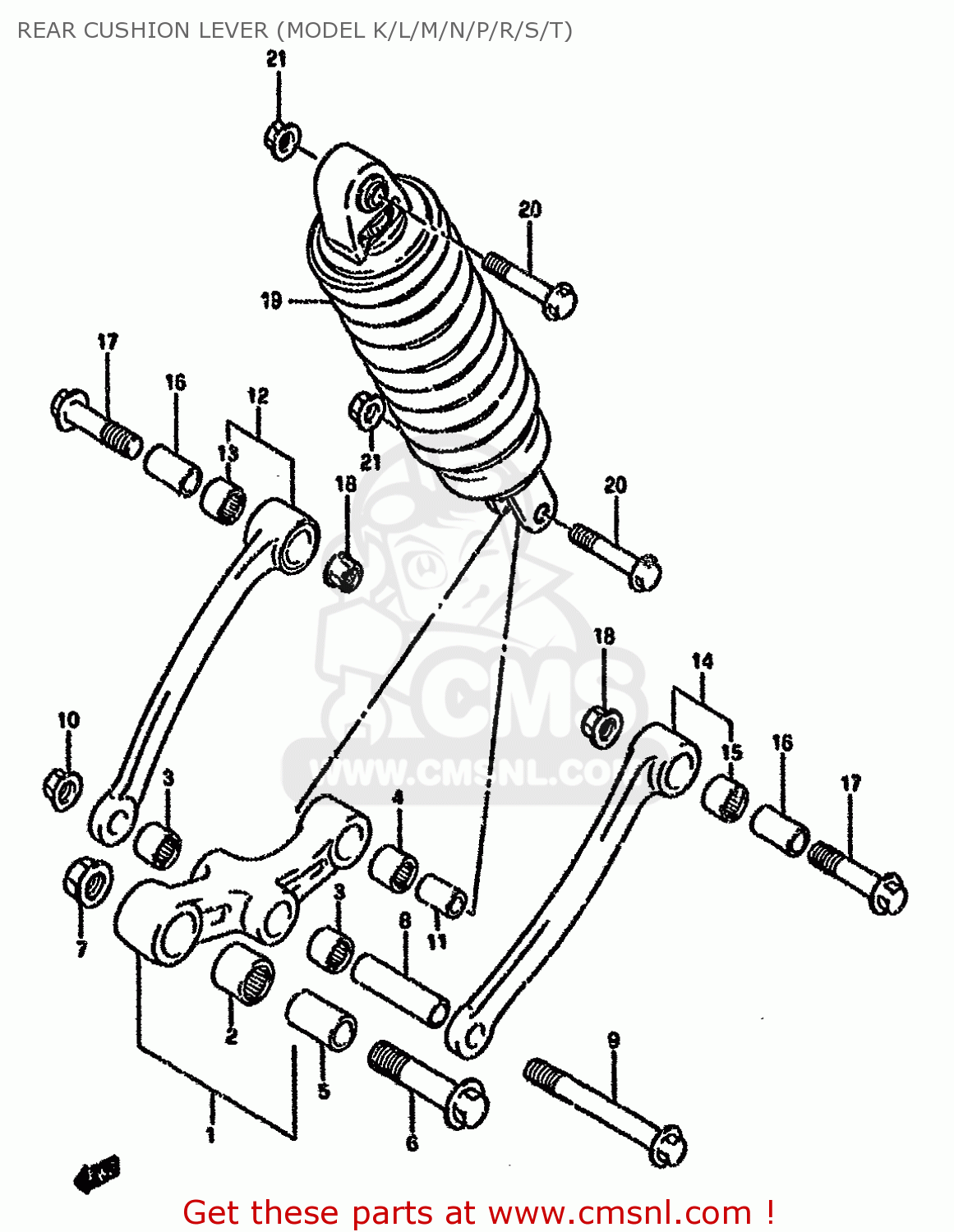

Rear cushion lever (model k/l/m/n/p/r/s/t) diagram GSX600FU2 1990 (L) GERMANY (E22)

REAR CUSHION LEVER (MODEL K/L/M/N/P/R/S/T) GSX600FU2 1990 (L) GERMANY (E22)
REAR CUSHION LEVER (MODEL K/L/M/N/P/R/S/T) GSX600FU2 1990 (L) GERMANY (E22)
REAR CUSHION LEVER (MODEL K/L/M/N/P/R/S/T) GSX600FU2 1990 (L) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1
6260019830
ref: 1
LEVER SET,RR CUSHION
€ 575.50
2
0926320070
ref: 2
BEARING(20X27X30)
0926320070
€ 21.00
3
0926317037
ref: 3
BEARING(17X24X25)
0926317037
€ 19.00
4
0926317034
ref: 4
BEARING(17X24X26)
0926317034
€ 21.50
5
0918014014
ref: 5
SPACER(14X20X34)
0918014014
€ 11.50
6
0910314012
ref: 6
BOLT(14X62)
0910314012
€ 6.00
7
0831931145
ref: 7
NUT 14MM
€ 9.00
8
0918012121
ref: 8
SPACER(12X17X60)
0918012121
€ 12.00
9
0910312034
ref: 9
BOLT(12X96)
0910312034
€ 6.00
10
0831931125
ref: 10
NUT 12MM
€ 3.00
11
6268440A10
ref: 11
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
12
6260019840
ref: 12
ROD SET,RR CUSHION,R
€ 203.00
13
0926317034
ref: 13
BEARING(17X24X26)
0926317034
€ 21.50
14
6260019850
ref: 14
ROD SET,RR CUSHION,L
€ 198.50
15
0926317034
ref: 15
BEARING(17X24X26)
0926317034
€ 21.50
16
0918012120
ref: 16
SPACER(12X17X29)
0918012120
€ 10.00
17
0910312035
ref: 17
BOLT L:52
€ 7.00
18
0831931125
ref: 18
NUT 12MM
€ 3.00
19
6210019C21
ref: 19
ABSORBER ASSY,RR SHOCK
€ 583.50
20
0910310197
ref: 20
BOLT(10X52)
0910310197
€ 5.00
21
0831931105
ref: 21
NUT 10MM
€ 3.00
