BATTERY (MODEL T)
GSX600FU2 1993 (P) GERMANY (E22)

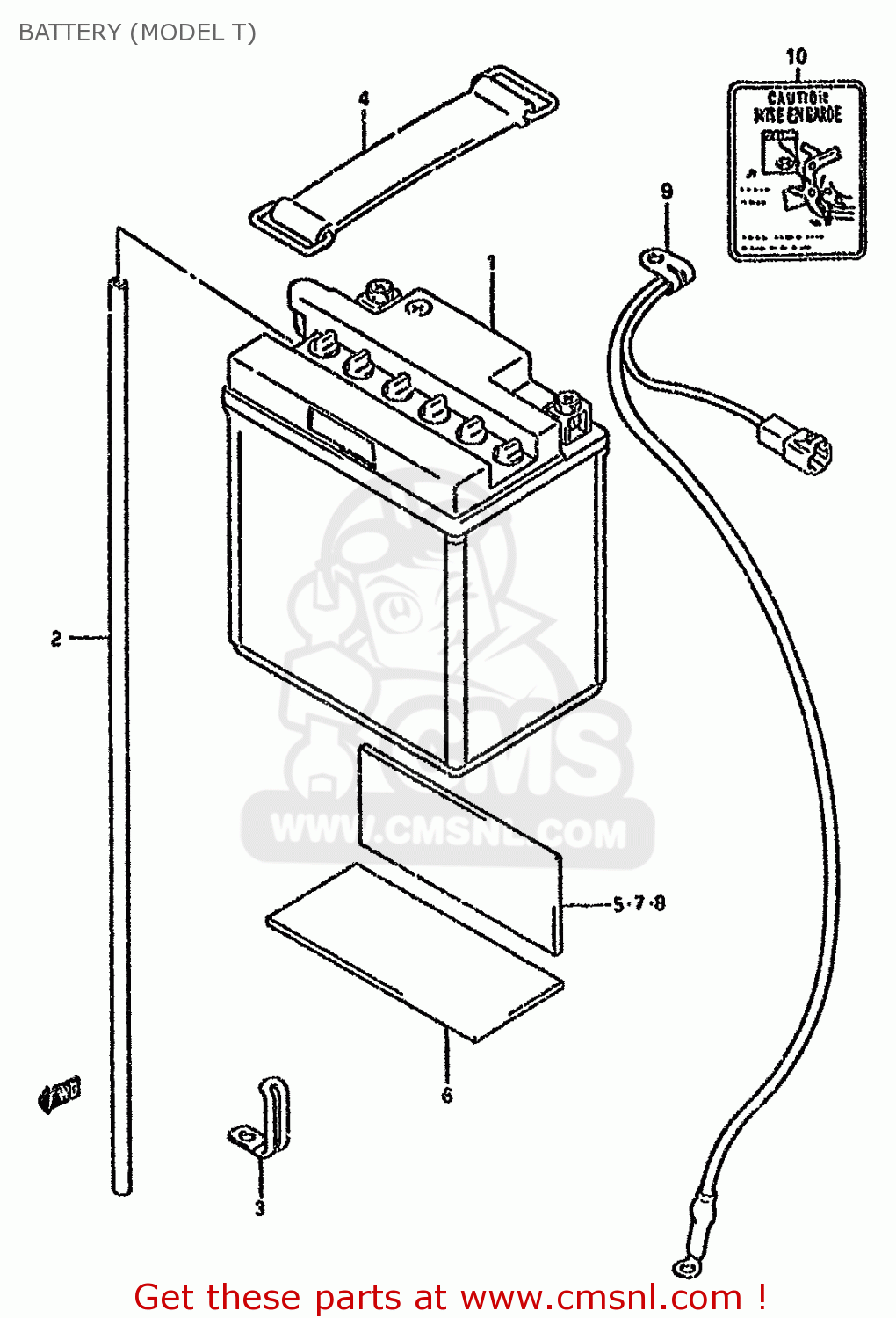

Battery (model t) diagram GSX600FU2 1993 (P) GERMANY (E22)
BATTERY (MODEL T) GSX600FU2 1993 (P) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3361004A20
ref: 1
BATTERY(YB10L-B2,12V11.6AH)
€ 78.50
2
3368016A10
ref: 2
MODEL R/S
HOSE,BATTERY EXHAUST(L:780)
€ 4.50
3
0940406206
ref: 3
CLAMP(L:45)
€ 2.50
4
0946200043
ref: 4
BAND
€ 4.50
5
3365137000
ref: 5
CUT REQUIRED PROFILE
PROTECTOR(170X95X3.0)
€ 5.00
6
3365220C00
ref: 6
PROTECTOR(50X50X5)
€ 2.50
7
3365137000
ref: 7
CUT REQUIRED PROFILE
PROTECTOR(170X95X3.0)
€ 5.00
8
3365137000
ref: 8
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
€ 5.00
9
3386044B01
ref: 9
WIRE,BATTERY MINUS LEAD
€ 17.50
10
3369019C10
ref: 10
PLATE,BATTERY CAUTION
€ 3.00
10
3369019C10
ref: 10
PLATE,BATTERY CAUTION
€ 3.00
