CYLINDER HEAD COVER

GSX750F 1991 (M) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

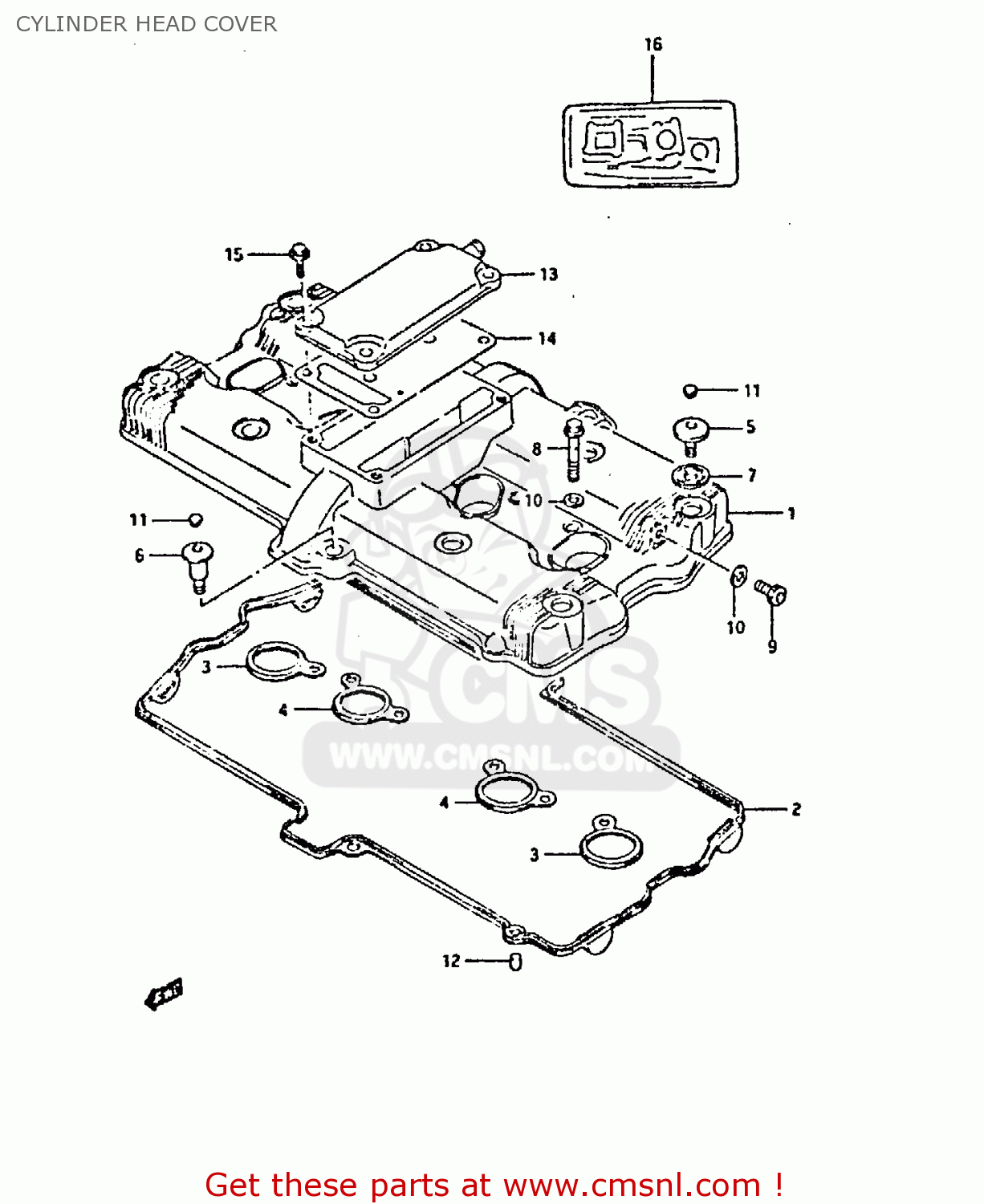

Cylinder head cover diagram GSX750F 1991 (M) (E01 E02 E04 E15 E16 17 18 21 22 24 25 34 39 53

prices are in EUR

ref

part #

description

quantity

1117148B03
ref: 1

COVER,CYLINDER HEAD

€ 422.00

1117306802
ref: 2

GASKET, HEAD COVER NO.1

€ 0.00

1117827A01
ref: 3

GASKET,HEAD COVER NO.2 (NAS)

€ 5.50

1117927A02
ref: 4

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

0910607010
ref: 6

BOLT(7X31)

€ 4.50

0916111008
ref: 7

WASHER(10.6X25.5X2.3)

€ 4.50

0936008009
ref: 8

BOLT,UNION 8X35

€ 26.50

9-1

0711008125
ref: 9-1
MODEL K/L/M/N/P

PLUG, HEAD COVER

€ 2.50

9-2

0713008123
ref: 9-2
MODEL R/S

PLUG

€ 2.50

0916808008
ref: 10

GASKET 8.2X14X1 (NAS)

€ 1.00

0925006008
ref: 11
MODEL K/L

CAP(OD:10)

€ 3.00

0422108129
ref: 12

PIN

€ 2.00

1117631301
ref: 13

COVER,BREATHER

€ 31.50

1117748B00H17
ref: 14
11177-48800

GASKET,BREATHER (NAS)

€ 10.50

15-1

0151706204
ref: 15-1
~E.NO.132070

BOLT 6X20

€ 2.50

15-2

0155006207
ref: 15-2
E.NO.132071~

BOLT

€ 2.50

15-3

0155006203
ref: 15-3
MODEL R/S

BOLT

€ 2.50

16-1

1140017857
ref: 16-1
MODEL K/L/M/N 11400

GASKET SET

€ 296.50

16-2

1140017859
ref: 16-2
MODEL P/R/S

GASKET SET (NAS)

€ 296.50
