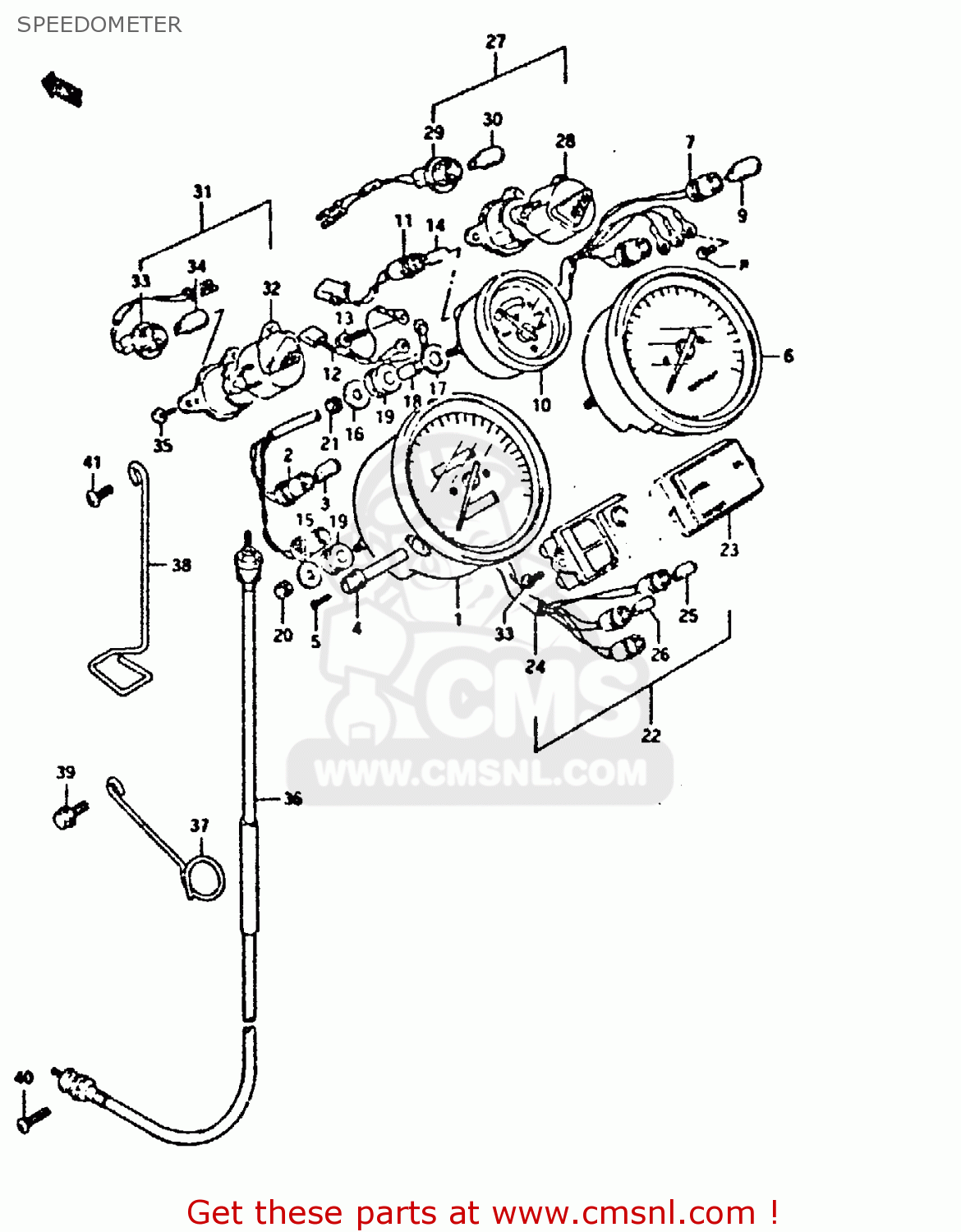

SPEEDOMETER

ref

part #

description

quantity

1-1

3410020C20
ref: 1-1

SPEEDOMETER ASSY

€ 397.50

1-2

3410020C30
ref: 1-2

SPEEDOMETER ASSEMBLY

€ 0.00

2

3417120C20
ref: 2

SOCKET

€ 16.50

3

0947112077
ref: 3

BULB(12V1.7W,T10,WB121)

€ 1.00

4

3412420C00
ref: 4

KNOB,TRIP

€ 4.00

5-1

3498113A00
ref: 5-1
MODEL K/L/M/N/P/R

ROTOR,SPEED

€ 2.00

5-2

0913902003
ref: 5-2
MODEL S

SCREW(2X6)

€ 2.00

6

3420020C00
ref: 6

TACHOMETER ASSEMBLY

€ 385.50

7

3427520C00
ref: 7

SOCKET

€ 25.50

8

0211233123
ref: 8

SCREW

€ 1.50

9

0947112077
ref: 9

BULB(12V1.7W,T10,WB121)

€ 1.00

10

3430020C00
ref: 10

METER ASSY,FUEL

€ 166.00

11

3437120C00
ref: 11

SOCKET

€ 15.50

12

3437120C10
ref: 12

CORD ASSEMBLY

€ 14.50

13

3438309400
ref: 13

SCREW(3X22)

€ 2.50

14

0947112108
ref: 14

BULB(12V1.7W,T6.5)

€ 2.00

15-1

0916005017
ref: 15-1
MODEL K/L/M/N/P/R

WASHER (5.5X16X1.2)

€ 2.50

15-2

0916005037
ref: 15-2
MODEL S

WASHER(5.5X16X1.2)

€ 1.50

16

0916004014
ref: 16

WASHER (4X16X1.2)

€ 1.50

17

0916108011
ref: 17

WASHER(8.2X18X1.2)

€ 2.50

18

0918004014
ref: 18

SPACER (4.5X7.5X15)

€ 2.00

19

3418920C00
ref: 19

CUSHION,TACHOMETER

€ 4.00

20

0831000053
ref: 20

NUT

€ 2.50

21

0831000043
ref: 21

NUT

€ 2.00

22

3630020C10
ref: 22

BOX ASSY, PILOT LAMP

€ 0.00

23

3638120C10
ref: 23

CASE,PILOT LAMP UPR

€ 13.50

24

3417020C10
ref: 24

CORD ASSY

€ 25.00

25

0947112108
ref: 25

BULB(12V1.7W,T6.5)

€ 2.00

26

0947112103
ref: 26

BULB(12V3W,T6.5)

€ 2.50

27-1

3634020C10
ref: 27-1

LAMP ASSY, TURNSIGNAL PILOT RH

€ 14.00

27-2

3634020C00
ref: 27-2
E2

LAMP ASSEMBLY,TURN SIGNAL P

€ 0.00

28-1

3634220C10
ref: 28-1

LENS

€ 6.50

28-2

3634220C00
ref: 28-2
E2

LENS,PILOT LAMP,R

€ 0.00

29-1

3634820C00
ref: 29-1
MODEL K/L/M/N/P/R

SOCKET

€ 9.50

29-2

3561810802
ref: 29-2
MODEL S

SOCKET

€ 0.00

30

0947112082
ref: 30

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

31-1

3635020C10
ref: 31-1

LAMP ASSY,TURNSIGNAL PILOT,L

€ 19.00

31-2

3635020C00
ref: 31-2
E2

LAMP ASSY,TURNSIGNAL PILOT,L

€ 0.00

32-1

3635220C10
ref: 32-1

LENS

€ 7.00

32-2

3635220C00
ref: 32-2
E2

LENS,PILOT LAMP,LEFT

€ 0.00

33-1

3634820C00
ref: 33-1
MODEL K/L/M/N/P/R

SOCKET

€ 9.50

33-2

3561810B02
ref: 33-2
MODEL S

SOCKET,TURN SIGNAL

€ 9.50

34

0947112082
ref: 34

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

35

0354104163
ref: 35

SCREW

€ 1.50

36

3491019C01
ref: 36

CABLE ASSY,SPEEDOMETER

€ 27.50

37

3493845100
ref: 37

CLAMP,SPEEDOMETER CABLE

€ 14.50

38

3493834C01
ref: 38

CLAMP,SPEEDOMETER CABLE

€ 4.50

39-1

0155006107
ref: 39-1
MODEL K/L/M/N/P

BOLT

€ 2.50

39-2

0155006163
ref: 39-2
MODEL R/S

BOLT

€ 2.50

40-1

0211205164
ref: 40-1
MODEL K/L/M/N/P

SCREW

€ 2.00

40-2

0211205163
ref: 40-2
MODEL R/S

SCREW

€ 2.00

41-1

0214205124
ref: 41-1
MODEL K/L/M/N/P

SCREW, FRONT & REAR

€ 1.50

41-2

0214205123
ref: 41-2
MODEL R/S

SCREW 5X12

€ 1.50
