FRAME COVER (MODEL N)

GSX750F KATANA 1991 (M) USA (E03)

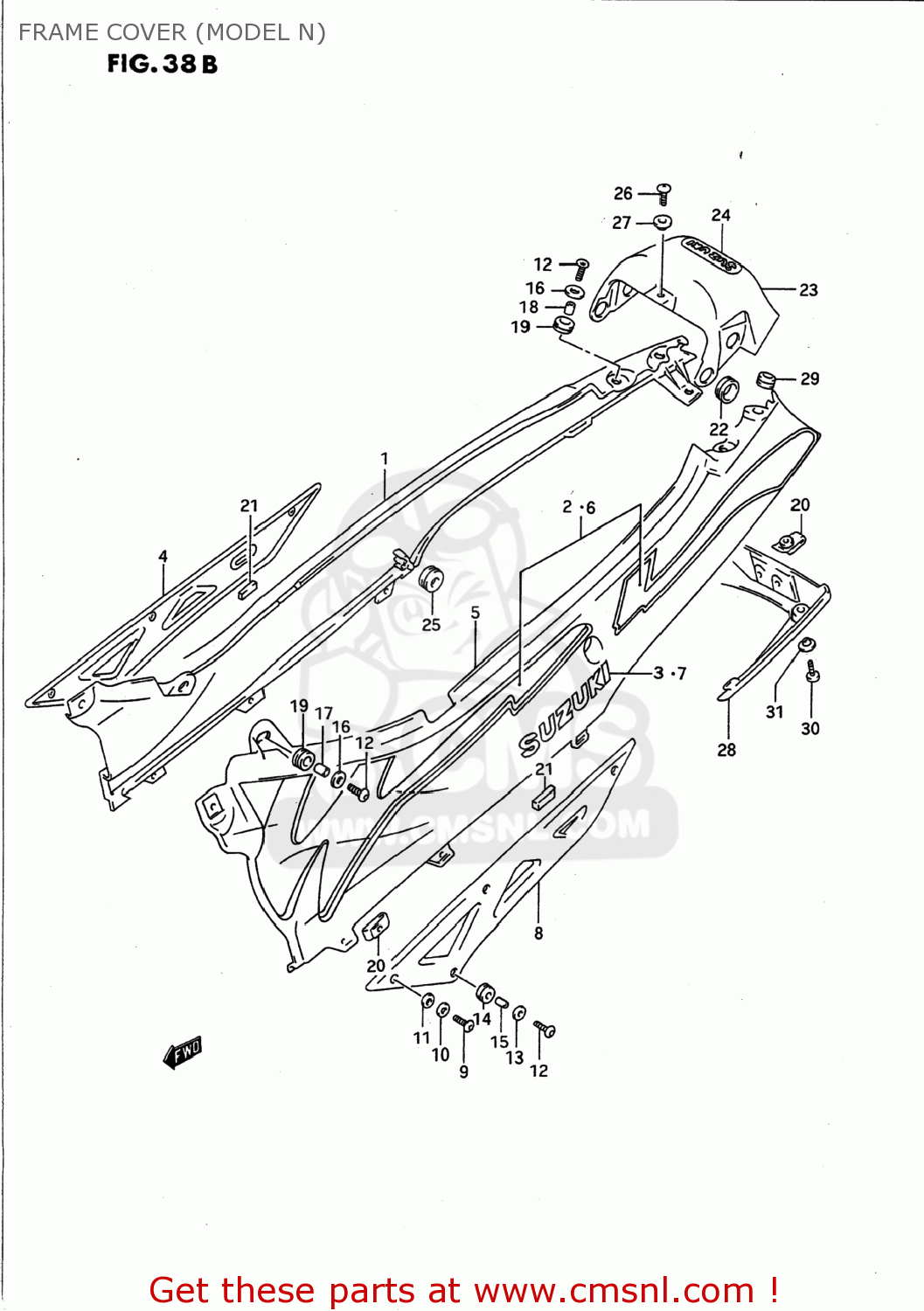

Frame cover (model n) diagram GSX750F KATANA 1991 (M) USA (E03)

FRAME COVER (MODEL N) GSX750F KATANA 1991 (M) USA (E03)
FRAME COVER (MODEL N) GSX750F KATANA 1991 (M) USA (E03)
FRAME COVER (MODEL N) GSX750F KATANA 1991 (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4711021C3012F
ref: 1-1
COVER COMP,FRAME,RIGHT
€ 0.00
1-2
4711021C301MW
ref: 1-2
COVER,FRAME,RIGHT
€ 344.00
2-1
6813020C30K53
ref: 2-1
TAPE SET,FRAME COVER STRIPE
€ 0.00
2-2
6813020C30K52
ref: 2-2
TAPE SET,FRAME COVER STRIPE
€ 0.00
3
6818132B000FP
ref: 3
EMBLEM,RIGHT (SILVER)
€ 10.50
4
4713120C00
ref: 4
COVER,FRAME LWR,R
€ 72.00
5-1
4721021C3012F
ref: 5-1
47211-20C01
COVER COMP,FRAME,LEFT
€ 243.00
5-2
4721021C301MW
ref: 5-2
47211-20C01
COVER,FRAME,LEFT
€ 243.00
6-1
6814020C30K53
ref: 6-1
TAPE SET,FRAME COVER STRIPE
€ 0.00
6-2
6814020C30K52
ref: 6-2
TAPE SET,FRAME COVER STRIPE
€ 87.00
7
6818132B000FP
ref: 7
EMBLEM,RIGHT (SILVER)
€ 10.50
8
4723120C00
ref: 8
COVER,FRAME LWR,L
€ 66.50
9
0912006005
ref: 9
SCREW(6X16)
0912006005
€ 2.50
10
0916006003
ref: 10
09160-06129
WASHER (6.7X16X1.8)
€ 2.00
11
0916105016
ref: 11
09320-06501
WASHER (5.5X16X1)
€ 2.00
12
0913906030
ref: 12
SCREW(6X16)
0913906030
€ 3.50
13
0916006054
ref: 13
WASHER(6.5X22X1.6)
0916006054
€ 2.00
14
0932008013
ref: 14
CUSHION
0932008013
€ 4.00
15
0918006092
ref: 15
SPACER(6.2X8.3X6.1)
0918006092
€ 4.00
16
0916006057
ref: 16
09160-06109
WASHER
€ 2.00
17
0918006011
ref: 17
09180-06263
SPACER (6.1X9X9)
0918006011
€ 2.00
18
0918006038
ref: 18
SPACER(6.1X9X7.5)
0918006038
€ 2.00
19
0932009016
ref: 19
CUSHION
0932009016
€ 2.50
20
4715319C01
ref: 20
PLATE,FRAME COVER
4715319C01
€ 4.00
21
4716120C00
ref: 21
CUSHION,FRAME COVER LWR
€ 3.00
22
0930816006
ref: 22
GROMMET
0930816006
€ 3.00
23-1
4731021C0012F
ref: 23-1
COVER COMP,FRAME,CENTER
€ 0.00
23-2
4731021C001MW
ref: 23-2
47311-20C01
COVER,FRAME,CENTER
€ 36.00
24
6827134A000FP
ref: 24
EMBLEM,FRAME COVER,CENTER
€ 3.00
25
0932008018
ref: 25
CUSHION
0932008018
€ 4.00
26
0214206103
ref: 26
02142-0610A
SCREW 6X10
0214206103
€ 2.00
27
0916906037
ref: 27
WASHER
0916906037
€ 6.50
28
4732120C00
ref: 28
COVER,FRAME RR
4732120C00
€ 23.00
29
9443326B00
ref: 29
CUSHION
9443326B00
€ 4.00
30
0214206164
ref: 30
02142-0616A
SCREW
0214206164
€ 2.50
31
0916906037
ref: 31
WASHER
0916906037
€ 6.50
