OIL PAN
GSX750F KATANA 1991 (M) USA (E03)

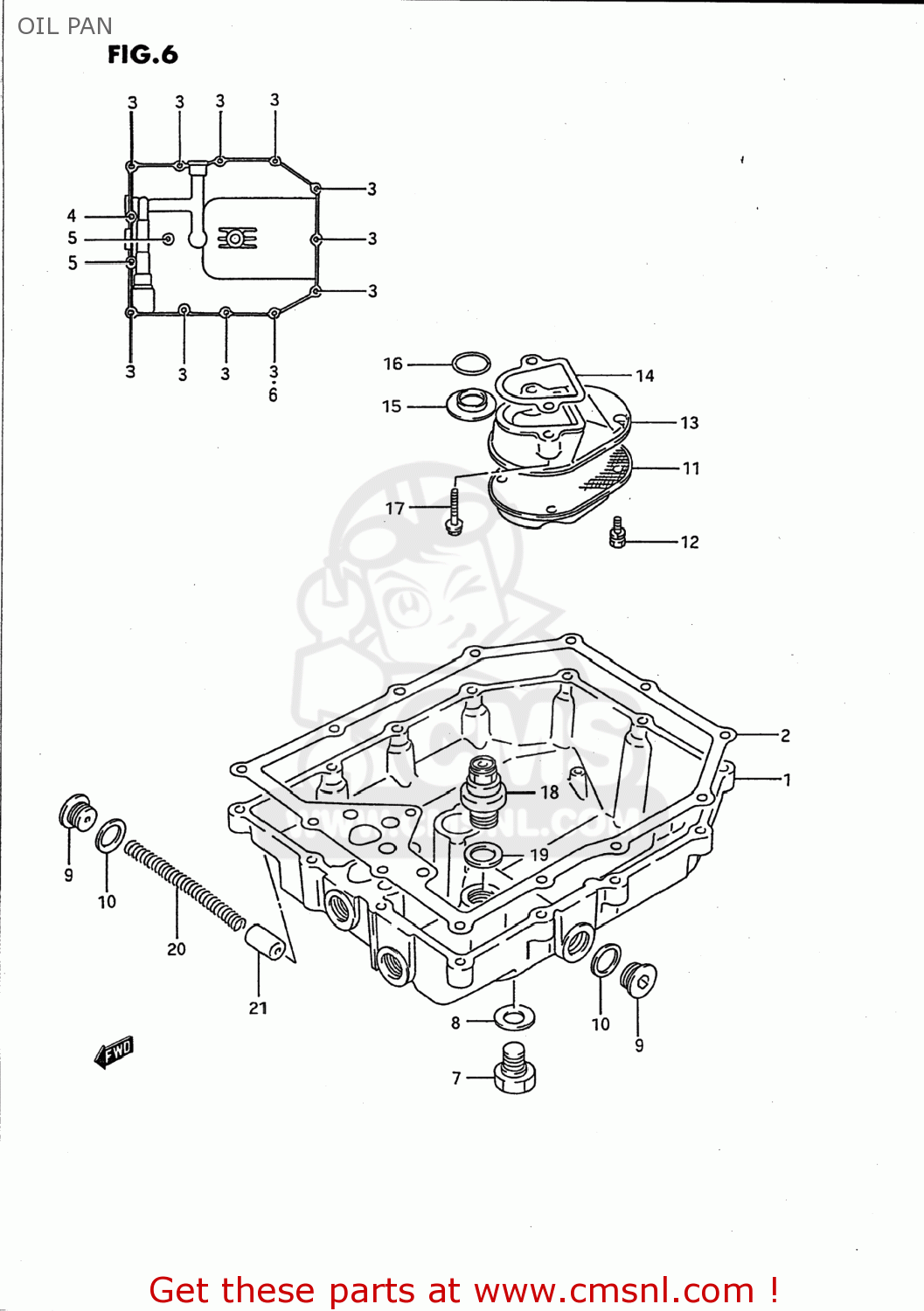

Oil pan diagram GSX750F KATANA 1991 (M) USA (E03)
OIL PAN GSX750F KATANA 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151120C00
ref: 1
PAN,OIL
€ 131.00
2-1
1148927A00
ref: 2-1
11489-27A21
GASKET,OIL PAN (NAS)
€ 23.00
2-2
1148927A10
ref: 2-2
11489-27A21
GASKET,OIL PAN (NAS)
€ 23.00
2-3
1148927A20
ref: 2-3
11489-27A21
GASKET,OIL PAN (NAS)
€ 23.00
3-1
0154706257
ref: 3-1
BOLT
€ 2.50
3-2
0154706253
ref: 3-2
01547-0625B
SCREW
€ 2.50
4-1
0154706507
ref: 4-1
BOLT
€ 2.50
4-2
0154706503
ref: 4-2
01547-0650B
BOLT
€ 3.50
5-1
0154706457
ref: 5-1
BOLT
€ 2.50
5-2
0154706453
ref: 5-2
01547-0645B
BOLT
€ 3.00
6
0916806024
ref: 6
GASKET(5.8X11X1.2) (NAS)
€ 2.00
7
0924714001
ref: 7
09247-14002
PLUG
€ 5.00
8
0916814002
ref: 8
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
9
0924816010
ref: 9
09248-16012
PLUG
€ 4.50
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
€ 2.00
11
1652017C00
ref: 11
STRAINER,ENGINE OIL
€ 13.00
12-1
0113706128
ref: 12-1
01570-06127
BOLT
€ 2.50
12-2
0157006123
ref: 12-2
01570-0612A
BOLT
€ 1.50
13
1652517C00
ref: 13
PROTECTOR,OIL STRAINER
€ 21.00
14-1
1652827A02
ref: 14-1
16528-27A21
GASKET,OIL STRAINER PROTECTOR (NAS)
€ 9.00
14-2
1652827A10
ref: 14-2
16528-27A21
O-RING
€ 9.00
14-3
1652827A20
ref: 14-3
16528-27A21
GASKET,OIL STRAINER PROTECTOR (NAS)
€ 9.00
15
1652927A01
ref: 15
GASKET,OIL OUTLET (NAS)
€ 2.00
16
0928018009
ref: 16
O RING(D:3.2,ID:17.8)
€ 8.00
17-1
0151706257
ref: 17-1
01550-06257
BOLT 6X25
€ 2.50
17-2
0155006253
ref: 17-2
01550-0625A
BOLT
€ 2.50
18
1644017C00
ref: 18
16440-17C10
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
€ 2.00
20
0944009027
ref: 20
SPRING
€ 4.50
21
1644234301
ref: 21
PLUNGER,OIL CONTROLL
€ 16.00
