ALTERNATOR
GSX750F KATANA 1992 (N) USA (E03)

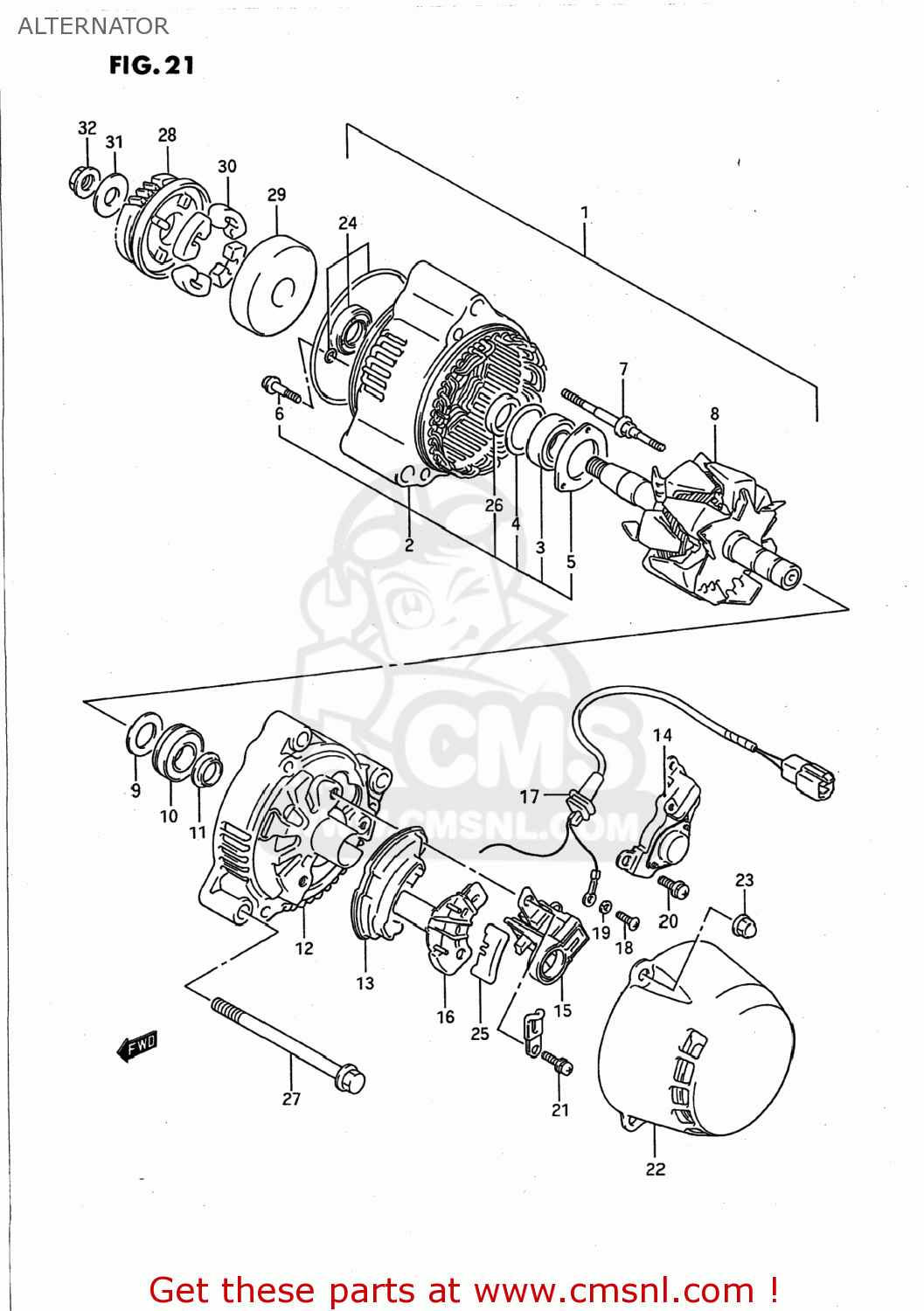

Alternator diagram GSX750F KATANA 1992 (N) USA (E03)
ALTERNATOR GSX750F KATANA 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3140048B03
ref: 1-1
31400-17C04
GENERATOR ASSEMBLY
€ 1,063.50
1-2
3140019C02
ref: 1-2
31400-17C04
ALTERNATOR ASSEMBLY
€ 1,063.50
1-3
3140017C03
ref: 1-3
31400-17C04
ALTERNATOR ASSEMBLY
€ 1,063.50
1-4
3140017C04
ref: 1-4
ALTERNATOR ASSY
€ 1,063.50
2
3158048B00
ref: 2
FRAME,DRIVE END
€ 248.50
3
3161206B00
ref: 3
BEARING
€ 36.50
4
3161348B00
ref: 4
COVER,BEARING
€ 5.50
5
3158548B00
ref: 5
RETAINER
€ 9.00
6
3158648B00
ref: 6
SCREW,BEARING RETAINER
€ 3.50
7-1
3158785250
ref: 7-1
STUD BOLT
€ 9.00
7-2
3158719C00
ref: 7-2
31587-85250
STUD BOLT
€ 9.00
8-1
3171048B03
ref: 8-1
31710-48B04
ROTOR ASSEMBLY
€ 277.50
8-2
3171048B04
ref: 8-2
ALTERNATOR ASSY
€ 277.50
9
3161382610
ref: 9
COVER,BEARING
€ 3.50
10
3161248B00
ref: 10
BEARING
€ 42.50
11
3161327A10
ref: 11
COVER(2)
€ 5.50
12
3161148B00
ref: 12
FRAME,END
€ 83.00
13
3162127A00
ref: 13
HOLDER,RECTIFIER
€ 225.50
14
3250027A00
ref: 14
REGULATOR
€ 321.00
15
3165648B00
ref: 15
HOLDER,BRUSH
€ 55.50
16-1
3168727A00
ref: 16-1
31687-17E00
COVER,RECTIFIER
€ 4.50
16-2
3168717E00
ref: 16-2
COVER,RECTIFIER
€ 4.50
17
3148048B00
ref: 17
WIRE,LEAD
€ 22.00
18-1
0211204086
ref: 18-1
02112-0408A
SCREW
€ 2.00
18-2
3151685250
ref: 18-2
02112-0406B
SCREW
€ 2.00
18-3
0211204063
ref: 18-3
02112-0406B
SCREW 4X6
€ 2.00
19
0832101043
ref: 19
08321-0104A
WASHER,LOCK
€ 2.00
20
3168827A00
ref: 20
SCREW
€ 2.50
21
3168806B00
ref: 21
31688-27A00
SCREW
€ 2.50
22
3161448B00
ref: 22
COVER
€ 67.50
23-1
3169248B00
ref: 23-1
08313-2005A
NUT
€ 1.50
23-2
0831616055
ref: 23-2
NUT ,5MM
€ 2.00
23-3
0831610053
ref: 23-3
08316-1005A
NUT
€ 2.50
24-1
3178048B00
ref: 24-1
31780-27X50
SEAL SET,OIL
€ 47.50
24-2
3178027X50
ref: 24-2
SERVICE KIT(A)
€ 47.50
25
3151427A00
ref: 25
31687-17E00
BUSH
€ 4.50
26
3177606B00
ref: 26
SPACER
€ 22.00
27-1
0151708908
ref: 27-1
01550-08907
BOLT 8X90
€ 3.50
27-2
0157008903
ref: 27-2
BOLT
€ 4.50
27-3
0155008903
ref: 27-3
01550-0890B
BOLT
€ 3.50
28
2273020C00
ref: 28
22730-19C02
GEAR,GENERATOR DRIVEN
€ 112.50
29
2273327A04
ref: 29
22733-27A05
HOUSING,GENERATOR GEAR
€ 95.00
30
2123106B00
ref: 30
DAMPER,GENERATOR DRIVEN
€ 5.50
31
0821110283
ref: 31
WASHER
€ 3.00
32-1
0831626106
ref: 32-1
08316-2010B
NUT
€ 3.50
32-2
0831620103
ref: 32-2
08316-2010B
NUT
€ 3.50
