FUEL TANK (MODEL K/L)
GSX750F KATANA 1992 (N) USA (E03)

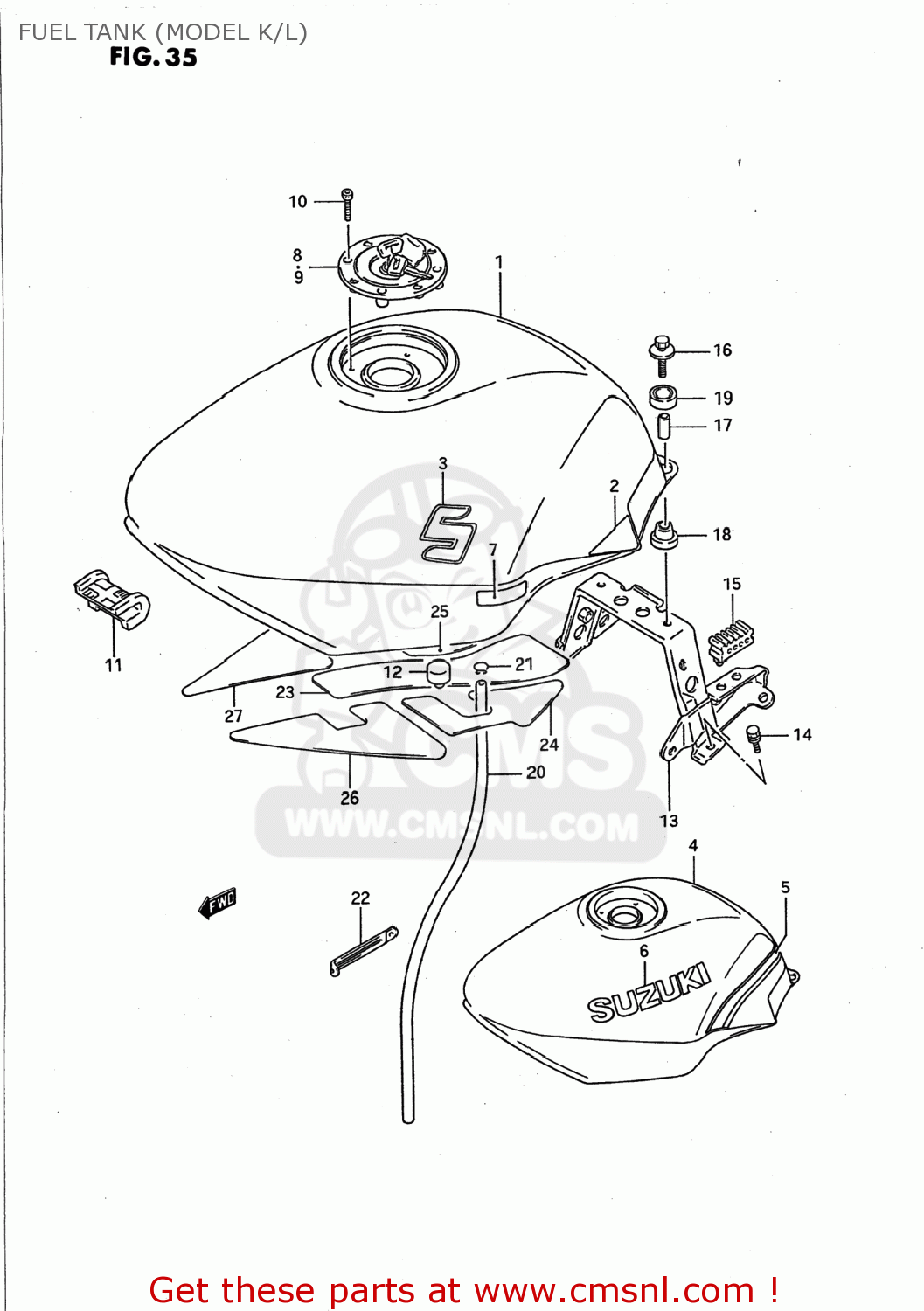

Fuel tank (model k/l) diagram GSX750F KATANA 1992 (N) USA (E03)
FUEL TANK (MODEL K/L) GSX750F KATANA 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410020C1024V
ref: 1-1
44110-19C22-YD8
TANK ASSEMBLY,FUEL
€ 421.00
1-2
4410020C3024V
ref: 1-2
44110-19C11-YD8
TANK ASSEMBLY,FUEL
€ 585.50
1-3
4410020C100FP
ref: 1-3
44110-19C22-YD8
TANK ASSEMBLY,FUEL
€ 421.00
1-4
4410020C300FP
ref: 1-4
TANK ASSEMBLY,FUEL (SILVER)
€ 366.50
2-1
6811020C0013L
ref: 2-1
TAPE SET,FUEL TANK
€ 10.00
2-2
6811020C00019
ref: 2-2
TAPE SET,FUEL TANK
€ 9.00
3-1
6811119C00742
ref: 3-1
EMBLEM
€ 9.50
3-2
6811119C00019
ref: 3-2
EMBLEM
€ 8.50
4-1
4410020C403CH
ref: 4-1
44110-19C22-YD8
TANK ASSEMBLY,FUEL
€ 421.00
4-2
4410020C703CH
ref: 4-2
TANK ASSEMBLY,FUEL
€ 370.50
4-3
4410020C403WC
ref: 4-3
44110-19C22-YD8
TANK ASSEMBLY,FUEL
€ 421.00
4-4
4410020C703WC
ref: 4-4
TANK ASSEMBLY,FUEL
€ 370.50
5-1
6811520C003CG
ref: 5-1
68115-20C01-3CG
TAPE,FUEL TANK
€ 47.00
5-2
6811520C003VV
ref: 5-2
68115-20C01-3VV
TAPE,FUEL TANK
€ 35.00
6-1
6811143400742
ref: 6-1
68111-43400-13L
EMBLEM
€ 11.50
6-2
681114340017U
ref: 6-2
EMBLEM,FUEL TANK
€ 7.50
7-1
4428319C00
ref: 7-1
PROTECTOR,FUEL TANK,RIGHT
€ 7.00
7-2
4429319C00
ref: 7-2
PROTECTOR,FUEL TANK,LEFT
€ 7.00
8-1
4420019C00KEY
ref: 8-1
44201-01832
CAP SET,FUEL TANK
€ 204.00
8-2
4420101830
ref: 8-2
44201-01832
CAP SET,FUEL TANK
€ 204.00
9-1
4420019C10KEY
ref: 9-1
44201-01842
CAP SET,FUEL TANK
€ 160.50
9-2
4420101840
ref: 9-2
44201-01842
CAP SET,FUEL TANK
€ 160.50
10
0910605017
ref: 10
BOLT(5X20)
€ 3.00
11
4451119C00
ref: 11
CUSHION,FUEL TANK FR
€ 8.00
12
0932110011
ref: 12
CUSHION
€ 3.00
13
4455019C00
ref: 13
BRACKET,FUEL TANK RR
€ 54.50
14
0913706017
ref: 14
01570-0620A
SCREW
€ 2.50
15
4514931300
ref: 15
CUSHION,SEAT(40X20X15)
€ 2.00
16
0911606078
ref: 16
09116-06172
BOLT
€ 2.50
17
0918006072
ref: 17
09180-06271
SPACER
€ 2.00
18
0932010038
ref: 18
CUSHION
€ 4.00
19
0932014017
ref: 19
CUSHION
€ 3.00
20
4442319C00
ref: 20
HOSE,FUEL TANK WATER DRAIN
€ 13.00
21
0940108402
ref: 21
CLIP
€ 1.50
22
0940408420
ref: 22
CLAMP(L:120 T:1.0)
€ 3.50
23
4913120C00
ref: 23
HEATSHIELD,CTR
€ 17.00
24
4913220C00
ref: 24
HEATSHIELD,RR,L
€ 17.00
25
4913320C00
ref: 25
HEATSHIELD,RR,R
€ 17.00
26
4913420C00
ref: 26
HEATSHIELD,FR,L
€ 17.00
27
4913520C00
ref: 27
HEATSHIELD,FR,R
€ 13.50
