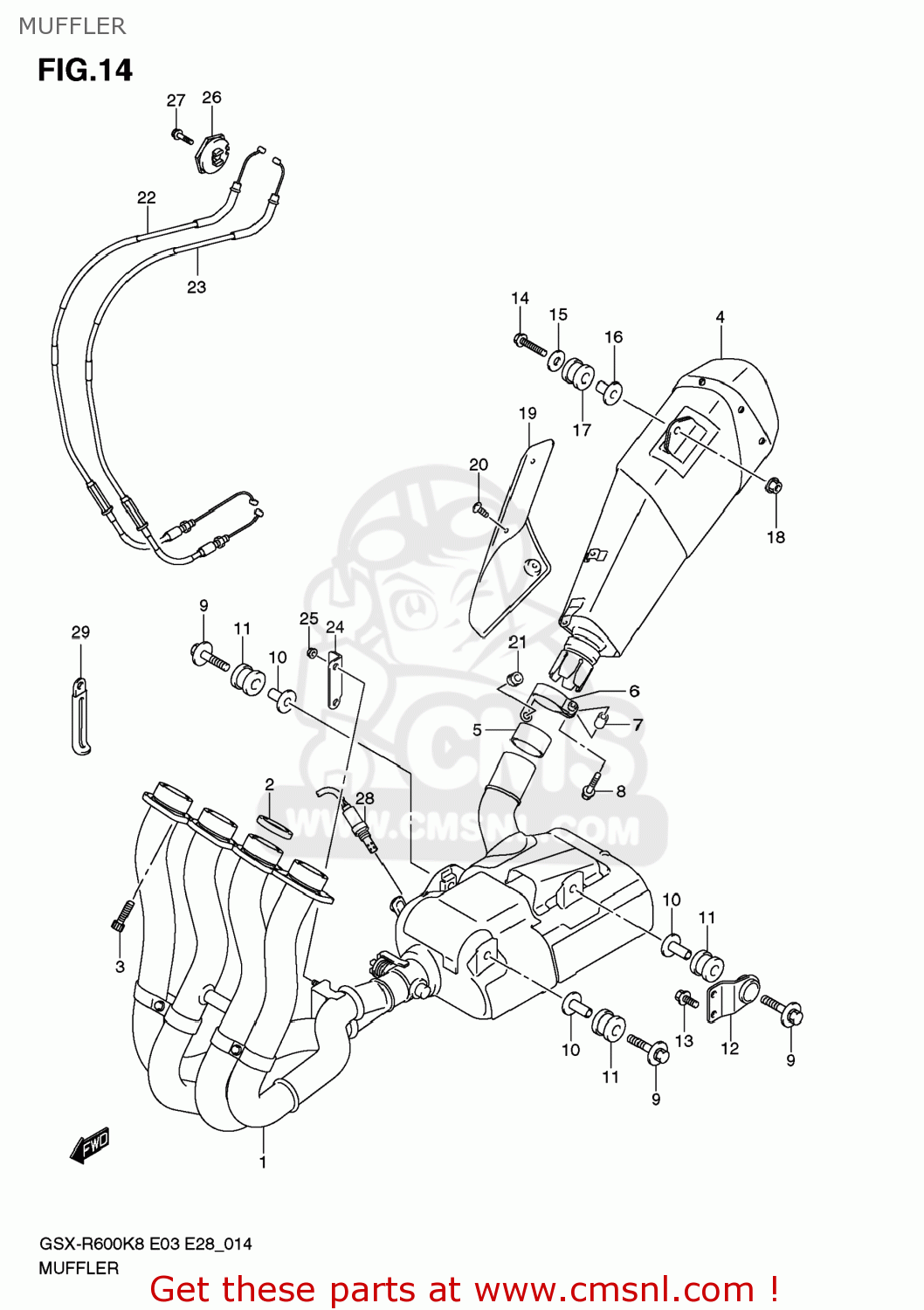

MUFFLER

ref

part #

description

quantity

1

1410037H00
ref: 1

EXHAUST

€ 1,265.50

2

1418146E00
ref: 2

GASKET,EXHAUST PIPE

€ 6.50

3

071300825A
ref: 3

BOLT

€ 3.00

4

1431037H00H01
ref: 4

BODY,MUFFLER

€ 1,341.00

5

1477142F10
ref: 5

CONNECTOR,MUFFLER

€ 13.00

6

1445942F60
ref: 6

CLAMP,MUFFLER CONNECTOR

€ 21.00

7

1445806H00
ref: 7

SPACER,MUFFLER

€ 3.00

8

0910308392
ref: 8

BOLT(8X40)

€ 4.00

9

0911808152A05
ref: 9

BOLT(8X45)

€ 5.00

10

0918008152A05
ref: 10
09180-08152

SPACER (8.6X12

€ 6.00

11

0932012077
ref: 11

CUSHION

€ 6.50

12

1477001H00
ref: 12

BRACKET,CHAMBER SPRT

€ 15.00

13

071200816A
ref: 13

BOLT

€ 3.00

14

0910308358
ref: 14

BOLT(8X45)

€ 3.50

15

0916008142
ref: 15

WASHER(8.5X28X1.5)

€ 2.50

16

0918008152
ref: 16

SPACER(8.6X12X24.2)

€ 6.00

17

0932012048
ref: 17

CUSHION

€ 5.00

18

083612508A
ref: 18

NUT

€ 2.50

19

1478037H00
ref: 19

COVER,MUFFLER FR

€ 314.50

20

0913906078
ref: 20

SCREW(6X10)

€ 3.00

21

0932008066
ref: 21

CUSHION

€ 7.50

22

1127637H00
ref: 22

CABLE,EXHAUST VALVE NO.1

€ 50.50

23

1127737H00
ref: 23

CABLE,EXHAUST VALVE NO.2

€ 49.00

24

1425001H00
ref: 24

BRACKET,EXHAUST VALVE CABLE

€ 7.00

25

083161006A
ref: 25

NUT

€ 2.50

26

1126918G00
ref: 26
11269-18G01

PULLEY CONTROL

€ 17.00

27

071200516A
ref: 27

BOLT

€ 1.50

28

1821318H00
ref: 28
18213-18H10

SENSOR,OXYGEN

€ 336.00

29

0940406429
ref: 29

CLAMP(L:45)

€ 2.50
