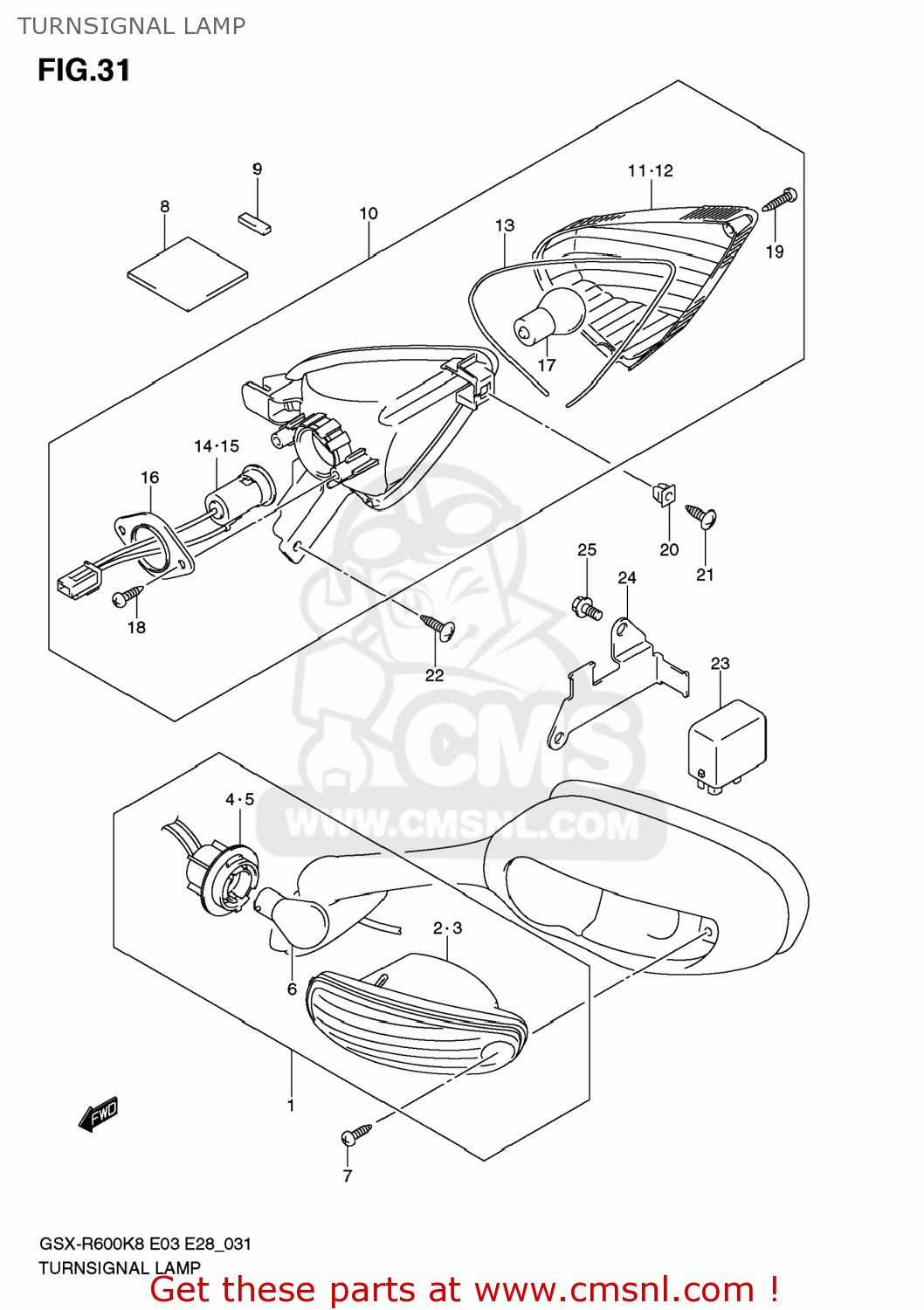

TURNSIGNAL LAMP

ref

part #

description

quantity

1-1

3560141G00
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 34.00

1-2

3560241G00
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,L

€ 34.00

2

3561041G00
ref: 2

LAMP UNIT,R

€ 28.50

3

3563041G00
ref: 3

LAMP UNIT,L

€ 23.00

4

3561810G50
ref: 4

SOCKET,R

€ 18.50

5

3563810G50
ref: 5

SOCKET,L

€ 19.00

6

0947112186
ref: 6

BULB(12V21W,AMBER)

€ 2.50

7

0913204032
ref: 7

SCREW(4X20)

€ 2.00

8

3365220C00
ref: 8

PROTECTOR(50X50X5)

€ 2.50

8

3365220C00
ref: 8

PROTECTOR(50X50X5)

€ 2.50

9

9444321H00
ref: 9

TAPE,FR TURNSIGNAL

€ 2.00

10-1

3560321H00
ref: 10-1

LAMP ASSY,RR TURNSIGNAL,R

€ 60.50

10-2

3560421H00
ref: 10-2

LAMP ASSY,RR TURNSIGNAL,L

€ 67.50

11

3565221H00
ref: 11

LENS,R

€ 20.00

12

3567221H00
ref: 12

LENS,L

€ 32.00

13

3565321H00
ref: 13

GASKET (NAS)

€ 19.00

14

3565841G00
ref: 14

SOCKET & CORD,R

€ 20.00

15

3567841G00
ref: 15

SOCKET & CORD,L

€ 41.50

16

3571607A30
ref: 16

PLATE,RR COMBINATION

€ 5.50

17

0947112186
ref: 17

BULB(12V21W,AMBER)

€ 2.50

18

032110412A
ref: 18

SCREW

€ 1.50

19

0321204169
ref: 19

SCREW

€ 1.50

20

0914804021
ref: 20

NUT

€ 2.00

21

035410412A
ref: 21

SCREW

€ 2.00

22

035410512A
ref: 22

SCREW

€ 2.00

23

3861003F00
ref: 23

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50

24

3862137H00
ref: 24

BRACKET,RELAY

€ 8.00

25

015500612A
ref: 25

BOLT

€ 2.50

all assemblies
