RADIATOR

GSXR600 2011 (L1) USA (E03)

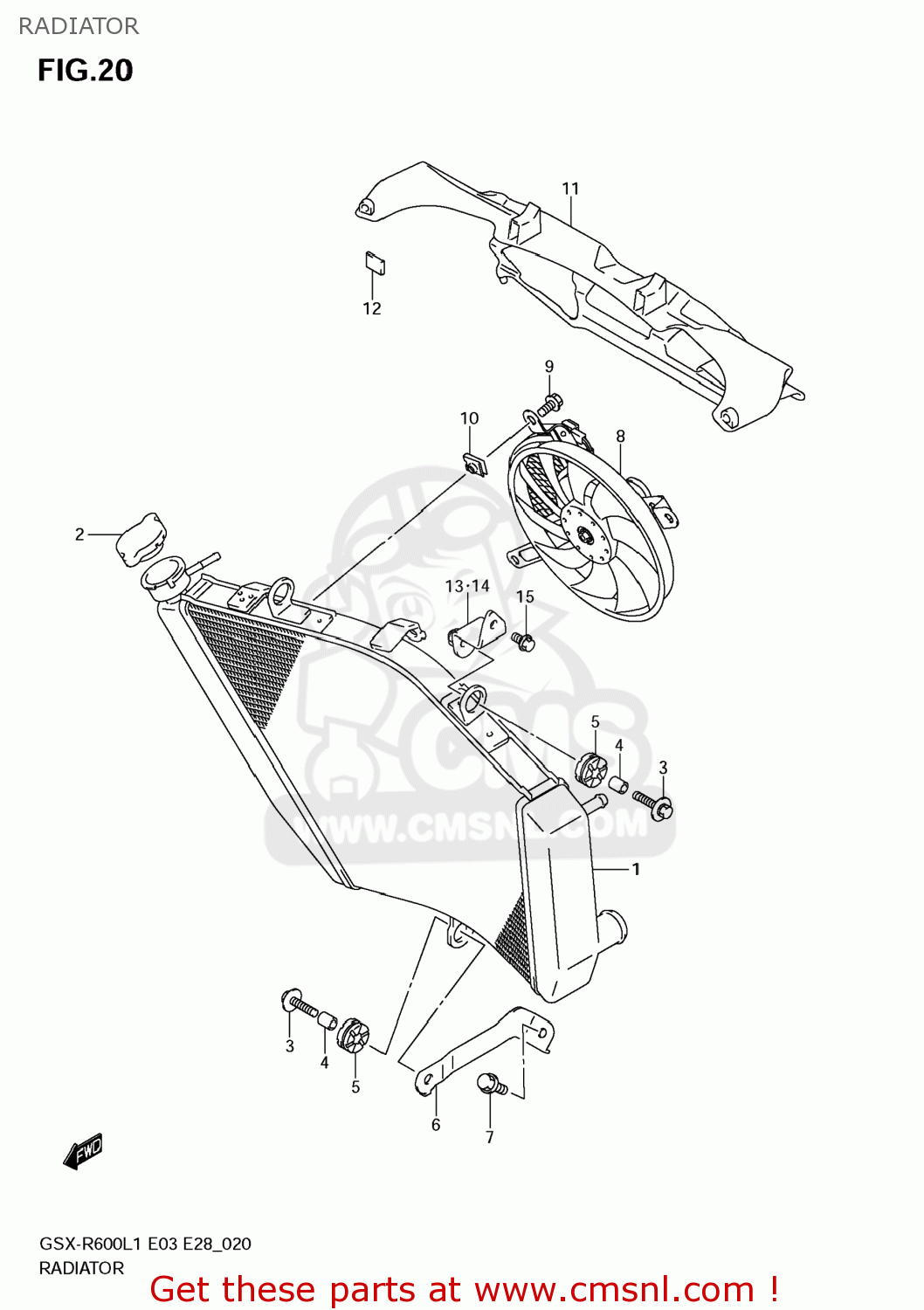

Radiator diagram GSXR600 2011 (L1) USA (E03)

RADIATOR GSXR600 2011 (L1) USA (E03)

RADIATOR GSXR600 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1771014J00
ref: 1

RADIATOR ASSY,WATER

€ 691.50

2

1773014G00
ref: 2

CAP,RADIATOR(1.1)

€ 36.00

3

0911806097
ref: 3

BOLT(6X25)

€ 2.50

4

0918006290
ref: 4

SPACER(6.5X10X12)

€ 2.50

5

0932010051
ref: 5

CUSHION

€ 3.50

6

1775014J00
ref: 6

BRACKET,RADIATOR

€ 7.00

7

015500612A
ref: 7

BOLT

€ 2.50

8

1780014J00
ref: 8

FAN ASSY,RADIATOR

€ 427.50

9

1771114G00
ref: 9

BOLT,FAN ASSY

€ 2.50

10

1780214F00
ref: 10

NUT,RADIATOR FAN

€ 3.00

11

1777114J00
ref: 11

SHIELD,RADIATOR HEAT

€ 32.00

12

6154494500
ref: 12

PAD

€ 2.00

13

1774114J00
ref: 13

BRACKET,RADIATOR UPR,R

€ 6.50

14

1774214J00
ref: 14

BRACKET,RADIATOR UPR,L

€ 6.50

15

015500616A
ref: 15

BOLT

€ 2.50
