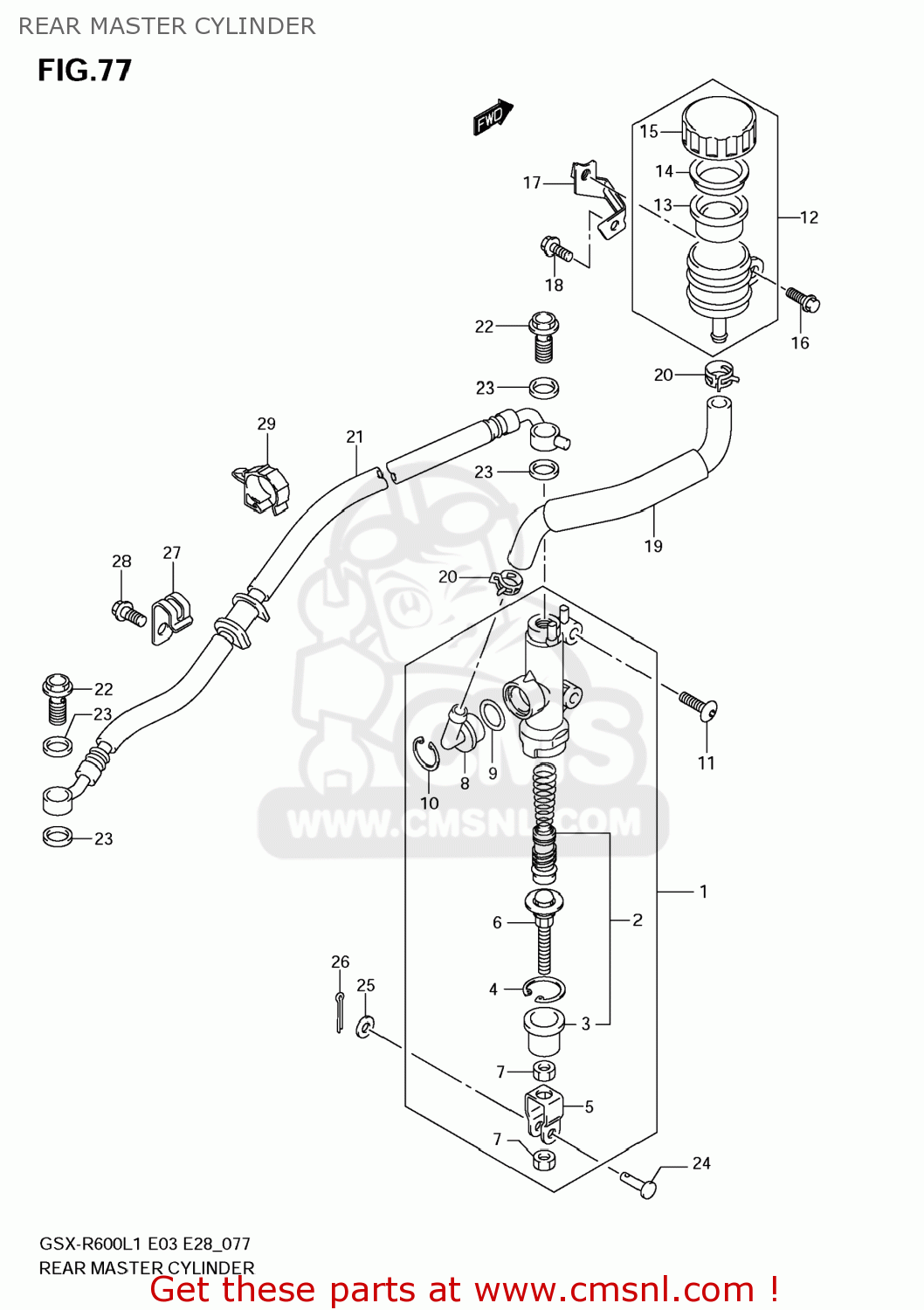

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960047H10
ref: 1

CYLINDER ASSY,RR MASTER

€ 154.00

2

6960034810
ref: 2

PISTON/CUP SET

€ 36.50

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6966547H00
ref: 4

CIRCLIP

€ 3.50

5

6969244H00
ref: 5

YOKE

€ 10.50

6

6967040A00
ref: 6

ROD,PUSH

€ 12.50

7

6969305A00
ref: 7

NUT

€ 1.50

8

6967200B20
ref: 8

CONNECTOR

€ 5.00

9

6968634200
ref: 9

O RING

€ 3.50

10

6967400B20
ref: 10

CIRCLIP

€ 3.00

11

0913906125
ref: 11

SCREW(6X20)

€ 3.00

12

6974047H00
ref: 12

TANK ASSY,RR RESERVOIR

€ 49.50

13

6966700B20
ref: 13

DIAPHRAGM

€ 9.50

14

6966800B20
ref: 14

PLATE

€ 4.00

15

6966947H00
ref: 15

CAP

€ 6.50

16

015470616A
ref: 16

BOLT

€ 2.00

17

6975014J00
ref: 17

BRACKET,RR RESERVOIR TANK

€ 5.50

18

015470612A
ref: 18

BOLT

€ 2.00

19

6973014J00
ref: 19

HOSE,RR RESERVOIR TANK

€ 18.50

20

0940112404
ref: 20

CLIP

€ 2.50

21

6948014J00
ref: 21

HOSE,RR BRAKE

€ 59.00

22

0936010062
ref: 22

BOLT UNION

€ 5.00

23

0916110009
ref: 23

WASHER(10X15X1.5)

€ 2.00

24

0920006068
ref: 24

PIN(6X18.2)

€ 5.00

25

083220106A
ref: 25

WASHER

€ 2.00

26

041112015A
ref: 26

PIN

€ 1.50

27

6926821H00
ref: 27

CLAMP,RR BRAKE HOSE

€ 5.00

28

015470612A
ref: 28

BOLT

€ 2.00

29

0940317306
ref: 29

CLAMP

€ 2.50
