ELECTRICAL (MODEL W/X)
GSXR750 1999 (X) USA (E03)

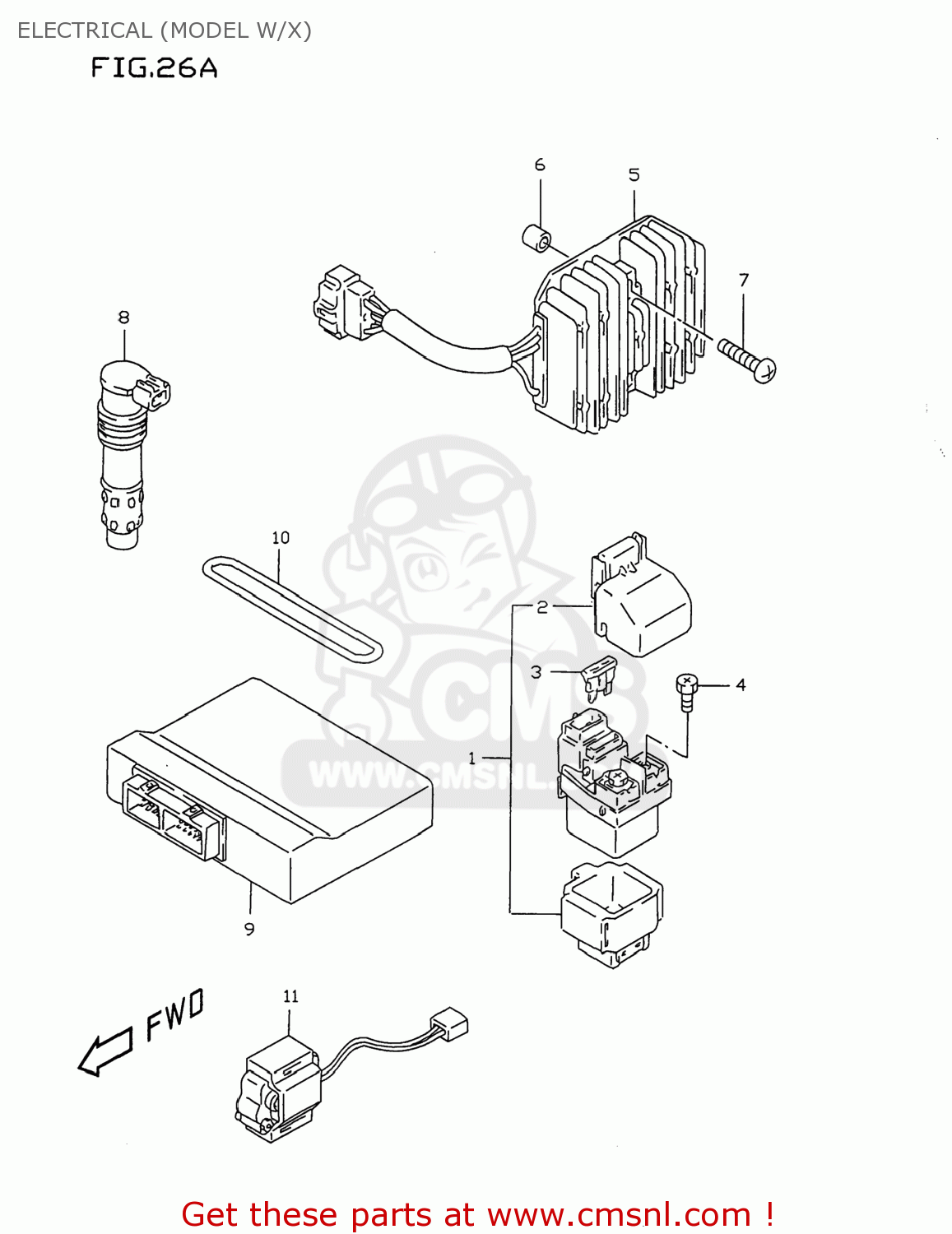

Electrical (model w/x) diagram GSXR750 1999 (X) USA (E03)
ELECTRICAL (MODEL W/X) GSXR750 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 77.50
2
3186126E00
ref: 2
COVER,STARTER RELAY
€ 3.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3280033E10
ref: 5
32800-33E21
RECTIFIER ASSEMBLY
€ 371.00
6
0918006283
ref: 6
SPACER(6.5X10X7)
€ 2.00
7
0214206353
ref: 7
02142-0635A
SCREW
€ 2.00
8
3341034E00
ref: 8
COIL ASSY,IGNITION
€ 146.00
9
3292033E40
ref: 9
CONTROL UNIT,EPI
€ 0.00
10
3365112910
ref: 10
BAND,BATTERY
€ 6.00
11
3396002F00
ref: 11
SENSOR ASSY,FUEL CUT
€ 85.00
