OIL PAN - OIL PUMP - FUEL PUMP (MODEL W)

GSXR750 1999 (X) USA (E03)

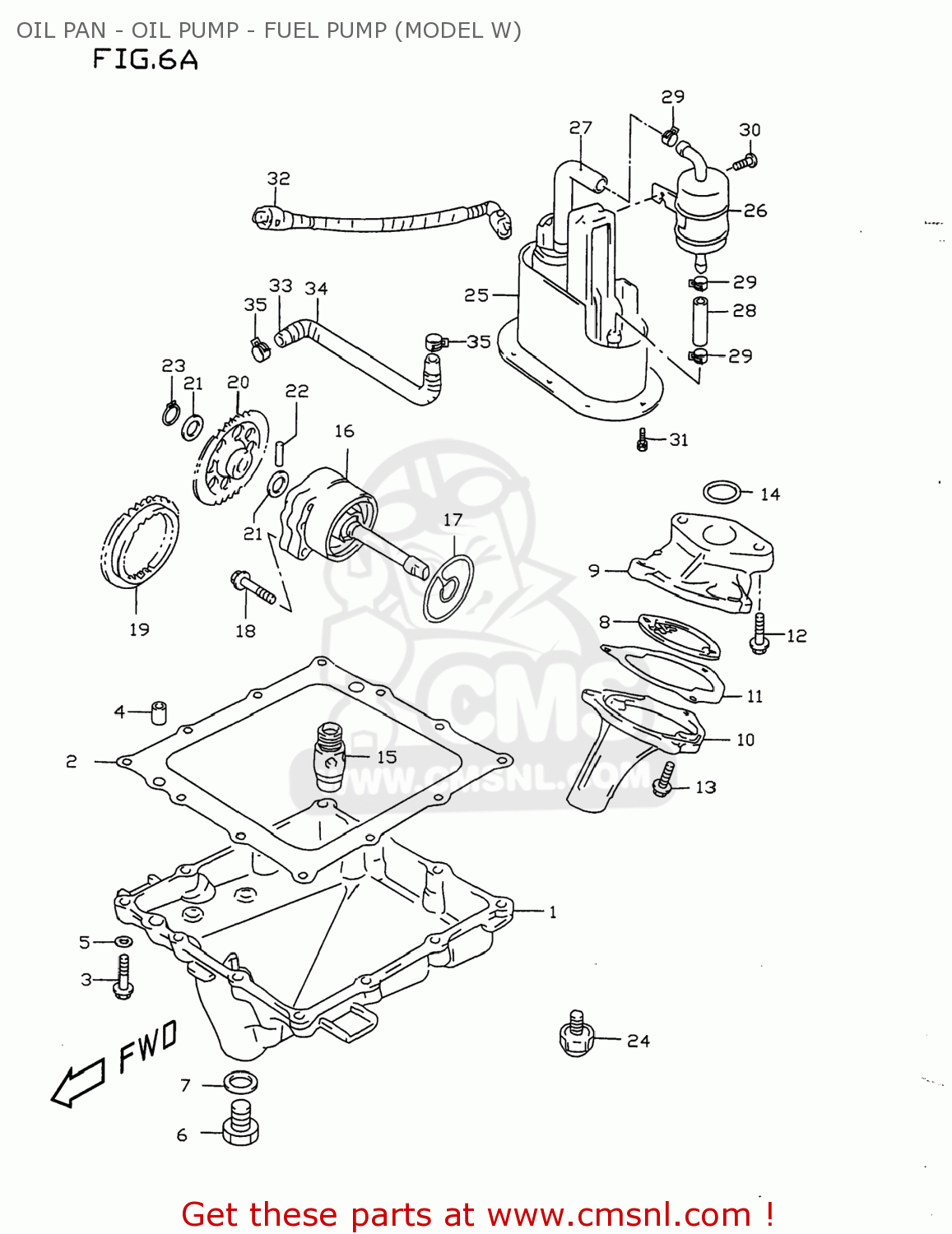

Oil pan - oil pump - fuel pump (model w) diagram GSXR750 1999 (X) USA (E03)

OIL PAN - OIL PUMP - FUEL PUMP (MODEL W) GSXR750 1999 (X) USA (E03)
OIL PAN - OIL PUMP - FUEL PUMP (MODEL W) GSXR750 1999 (X) USA (E03)
OIL PAN - OIL PUMP - FUEL PUMP (MODEL W) GSXR750 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1151133E00
ref: 1
PAN,OIL
1151133E00
€ 174.00
2
1148933E00
ref: 2
GASKET,OIL PAN (NAS)
1148933E00
€ 28.00
3
0154706303
ref: 3
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6
0924714001
ref: 6
09247-14002
PLUG
0924714001
€ 5.00
7
0916814002
ref: 7
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
8
1652037400
ref: 8
STRAINER,ENGINE OIL
1652037400
€ 7.00
9
1652533E00
ref: 9
PROTECTOR,OIL STRAINER
1652533E00
€ 21.50
10
1652633E00
ref: 10
COVER,OIL STRAINER
1652633E00
€ 20.50
11
1652733E00
ref: 11
GASKET,OIL STRAINER
1652733E00
€ 7.50
12
0155006253
ref: 12
01550-0625A
BOLT
0155006253
€ 2.50
13
0155006163
ref: 13
01550-0616A
BOLT
0155006163
€ 2.50
14
0928019008
ref: 14
O RING(D:2.62,ID:20.3)
0928019008
€ 5.50
15
1644033E00
ref: 15
VALVE ASSY,OIL RELIEF
1644033E00
€ 51.50
16
1640033E00
ref: 16
PUMP ASSY,ENGINE OIL
€ 188.50
17
1649133E00
ref: 17
O RING,OIL PUMP
1649133E00
€ 5.50
18
0155006303
ref: 18
01550-0630A
BOLT
0155006303
€ 2.50
19
1632133E00
ref: 19
16321-33E10
GEAR,OIL PUMP DRIVE (NT
€ 37.00
20
1633133E00
ref: 20
GEAR,OIL PUMP DRIVEN
1633133E00
€ 39.50
21
0918112158
ref: 21
SHIM(12X20X0.5)
0918112158
€ 2.00
22
0926105006
ref: 22
PIN(5X18)
0926105006
€ 1.50
23
0833131126
ref: 23
08331-3112A
CIRCLIP,12 MM
0833131126
€ 2.00
24
3782033D00
ref: 24
37820-33D10
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
25
1510033E50
ref: 25
15100-33E60
PUMP ASSEMBLY,FUEL
€ 826.50
26
1541002FA0
ref: 26
FILTER,FUEL
1541002FA0
€ 47.50
27
1581233E50
ref: 27
HOSE,FUEL
€ 61.50
27
1581233E50
ref: 27
HOSE,FUEL
€ 61.50
28
0935676145600
ref: 28
HOSE(7.6X14X600)
0935676145600
€ 30.50
29
0940113410
ref: 29
09401-12409
CLIP
€ 3.00
30
0211234083
ref: 30
02112-3408A
SCREW
€ 2.00
31
0157005103
ref: 31
01570-0510B
BOLT
0157005103
€ 2.00
32
1581033E00
ref: 32
HOSE,FUEL
1581033E00
€ 58.50
33
0935554115600
ref: 33
HOSE(5.4X11.4X600)
0935554115600
€ 20.00
34
0944013040
ref: 34
09440-13040-XC0
(CA) SPRING
€ 4.50
35
0940111411
ref: 35
CLIP
0940111411
