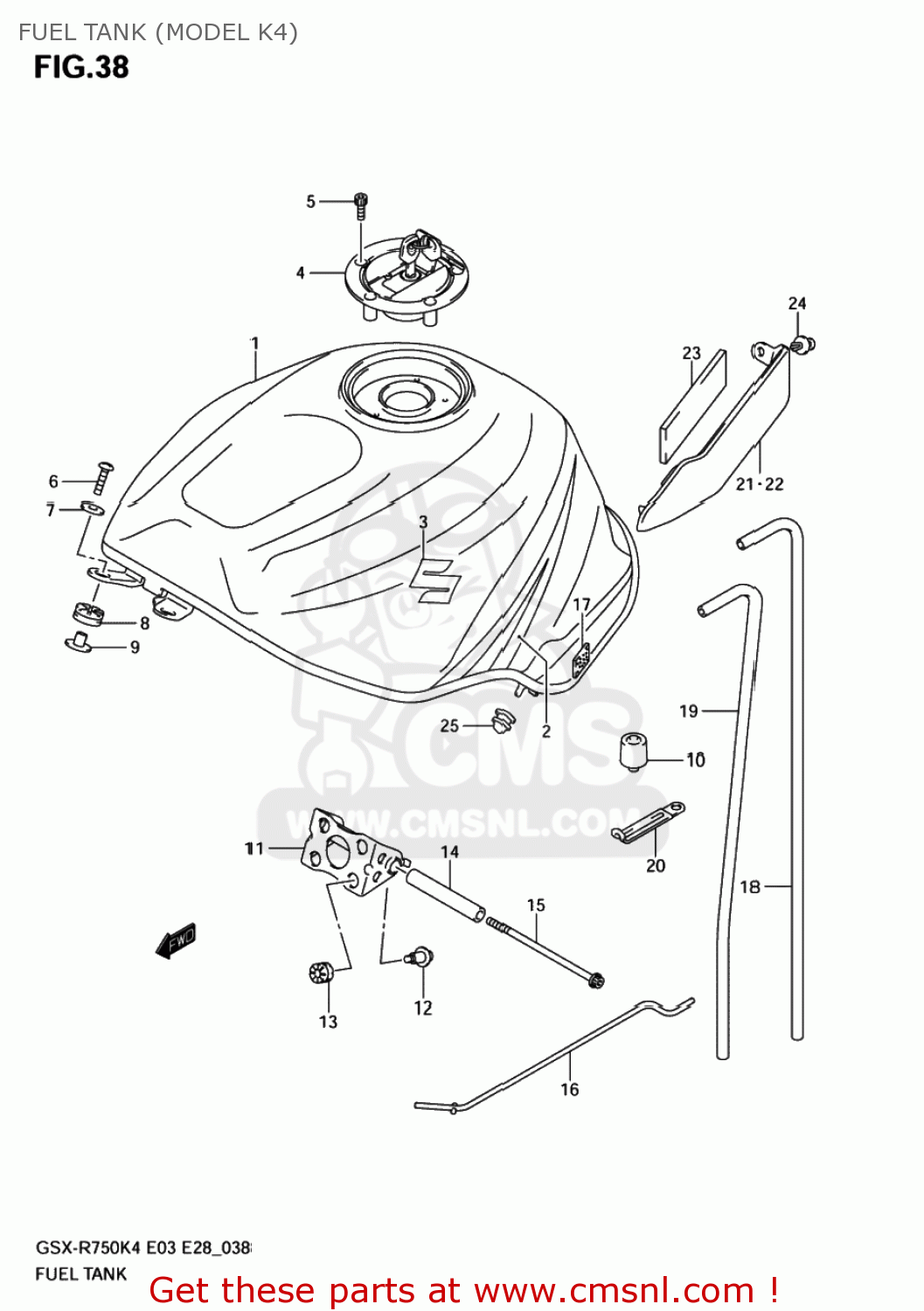

FUEL TANK (MODEL K4)

ref

part #

description

quantity

1-1

4410030G00YBA
ref: 1-1

TANK ASSY, FUEL (BLUE)

€ 513.00

1-2

4410030G00YEC
ref: 1-2

TANK ASSY,FUEL(YELLOW)

€ 0.00

1-3

4410030G00YU8
ref: 1-3

TANK ASSY,FUEL(GRAY)

€ 0.00

1-4

4410030G20YBA
ref: 1-4

TANK ASSY, FUEL (BLUE)

€ 0.00

1-5

4410030G20YEC
ref: 1-5

TANK ASSY,FUEL(YELLOW)

€ 0.00

1-6

4410030G20YU8
ref: 1-6

TANK ASSY, FUEL (GRAY) E33 FOR AGR

€ 0.00

2-1

6811030G00AWW
ref: 2-1

TAPE SET,FUEL TANK

€ 34.50

2-2

6811030G00ATP
ref: 2-2

TAPE SET,FUEL TANK

€ 34.50

2-3

6811030G00ATR
ref: 2-3

TAPE SET,FUEL TANK

€ 34.50

3-1

6811118G00ABF
ref: 3-1
68111-18G01-0AT

EMBLEM,FUEL TA

€ 14.00

3-2

6811118G00ATF
ref: 3-2

EMBLEM

€ 7.00

3-3

6811118G00ANA
ref: 3-3
68111-18G01-0AT

EMBLEM,FUEL TA

€ 14.00

4-1

4420016850
ref: 4-1

CAP SET,FUEL TANK

€ 155.50

4-2

4420016860
ref: 4-2

CAP SET,FUEL TANK

€ 0.00

5

0910605017
ref: 5

BOLT(5X20)

€ 3.00

6

0913906029
ref: 6

SCREW(6X25)

€ 5.00

7

0916006054
ref: 7

WASHER(6.5X22X1.6)

€ 2.00

8

4451116G00
ref: 8

CUSHION,FUEL TANK FR

€ 4.00

9

4451216G00
ref: 9

SPACER,FUEL TANK FR

€ 6.50

10

4454229G00
ref: 10

CUSHION,FUEL TANK RR

€ 6.00

11

4453029G00
ref: 11

BRACKET,FUEL TANK NO.1

€ 27.00

12

0913906132
ref: 12
09139-06191

SCREW,FUEL TAN

€ 4.50

13

0932008071
ref: 13

CUSHION

€ 3.50

14

4456118G00
ref: 14

SPACER,FUEL TANK RR

€ 14.00

15

0910606103
ref: 15

BOLT(6X110)

€ 5.50

16

4457435F00
ref: 16

STAY,FUEL TANK

€ 8.00

17

4457213G00
ref: 17

FASTENER

€ 6.00

18

4442316G01
ref: 18

HOSE,WATER DRAIN

€ 15.50

19

4442418G00
ref: 19

HOSE,FUEL TANK BREATHER

€ 13.50

20

0940406431
ref: 20
09404-06432

CLAMP(L:65)

€ 2.50

21

4417129G00291
ref: 21

COVER,FUEL TANK,R

€ 27.00

22

4418129G00291
ref: 22

COVER,FUEL TANK,L

€ 27.00

23

4427729G00
ref: 23

CUSHION,FUEL TANK SIDE

€ 6.50

24

09409083146GS
ref: 24

CLIP(GRAY)

€ 3.50

25

4427629G00
ref: 25

CUSHION,FUEL TANK COVER

€ 3.50

all assemblies
