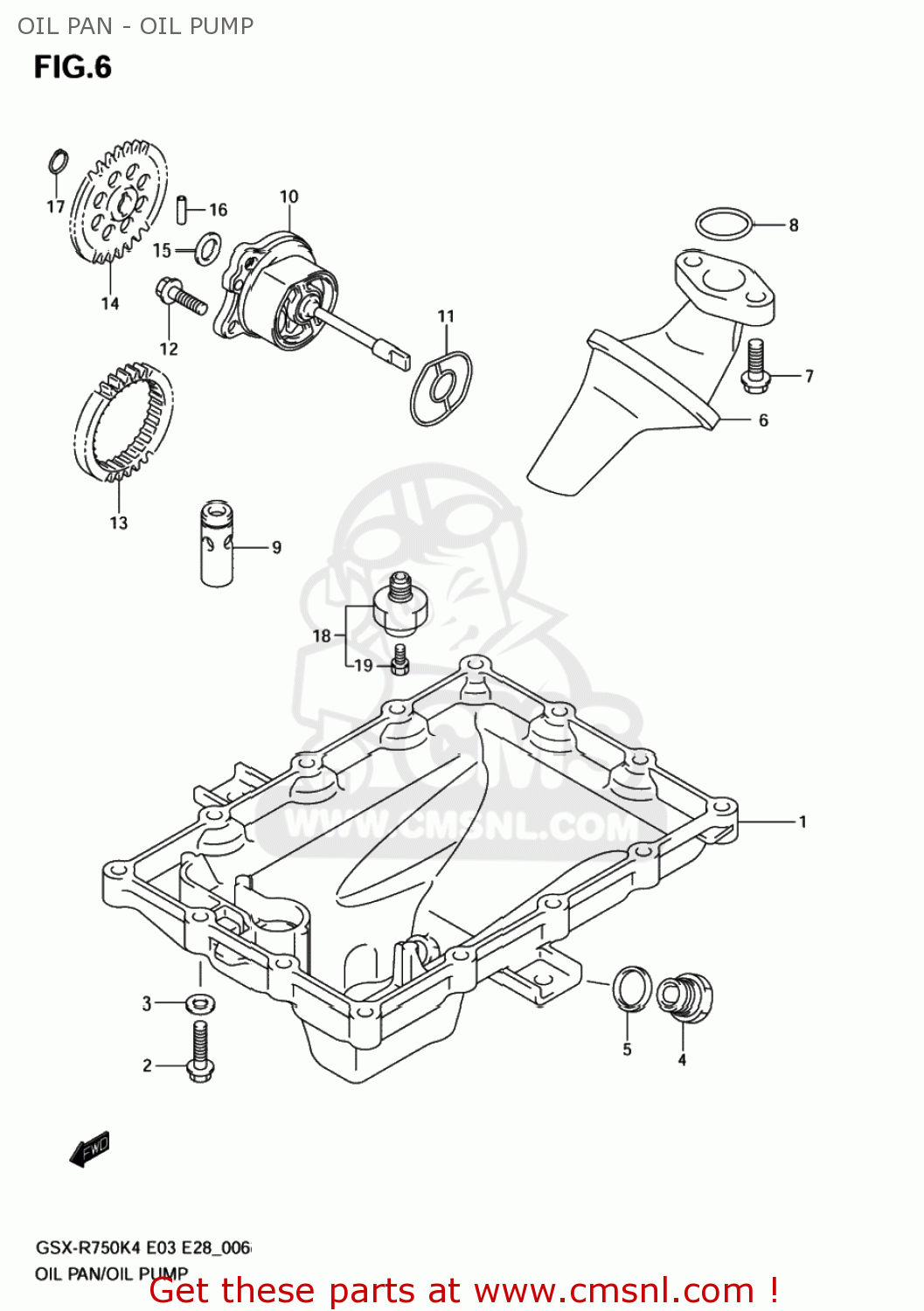

OIL PAN - OIL PUMP - GSXR750 2004 (K4) USA (E03)

ref

part #

description

quantity

1

1151129G00
ref: 1

PAN,OIL

€ 254.00

2

0154706253
ref: 2
01547-0625B

SCREW

€ 2.50

3

0916806023
ref: 3

GASKET(5.8X13X1.2) (NAS)

€ 2.00

4

0924714036
ref: 4

PLUG(14X20)

€ 5.50

5

0916814002
ref: 5
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

6

1652029G00
ref: 6

STRAINER ASSY,ENGINE OIL

€ 26.00

7

0155006203
ref: 7
01550-0620A

BOLT

€ 2.50

8

0928019008
ref: 8

O RING(D:2.62,ID:20.3)

€ 5.50

9

1644024F00
ref: 9

VALVE ASSY,OIL RELIEF(7K)

€ 41.50

10

1640035F00
ref: 10

PUMP ASSY,ENGINE OIL

€ 155.50

11

1649135F00
ref: 11

O RING,OIL PUMP

€ 4.50

12

0154706203
ref: 12
01547-0620B

SCREW

€ 2.50

13

1632135F01
ref: 13

GEAR,OIL PUMP DRIVE

€ 36.50

14

1633135F00
ref: 14

GEAR,OIL PUMP DRIVEN

€ 37.50

15

0918110158
ref: 15

SHIM(10X18X0.5)

€ 2.50

16

0926104009
ref: 16

PIN(4X15.8)

€ 1.50

17

0833131106
ref: 17
08331-3110A

CIRCLIP,10MM

€ 2.00

18

3782033D10
ref: 18

SWITCH ASSY,OIL PRESSURE

€ 29.00

19

3782233D00
ref: 19

BOLT,OIL PRESSURE SWITCH

€ 3.00

OIL PAN - OIL PUMP

all assemblies
