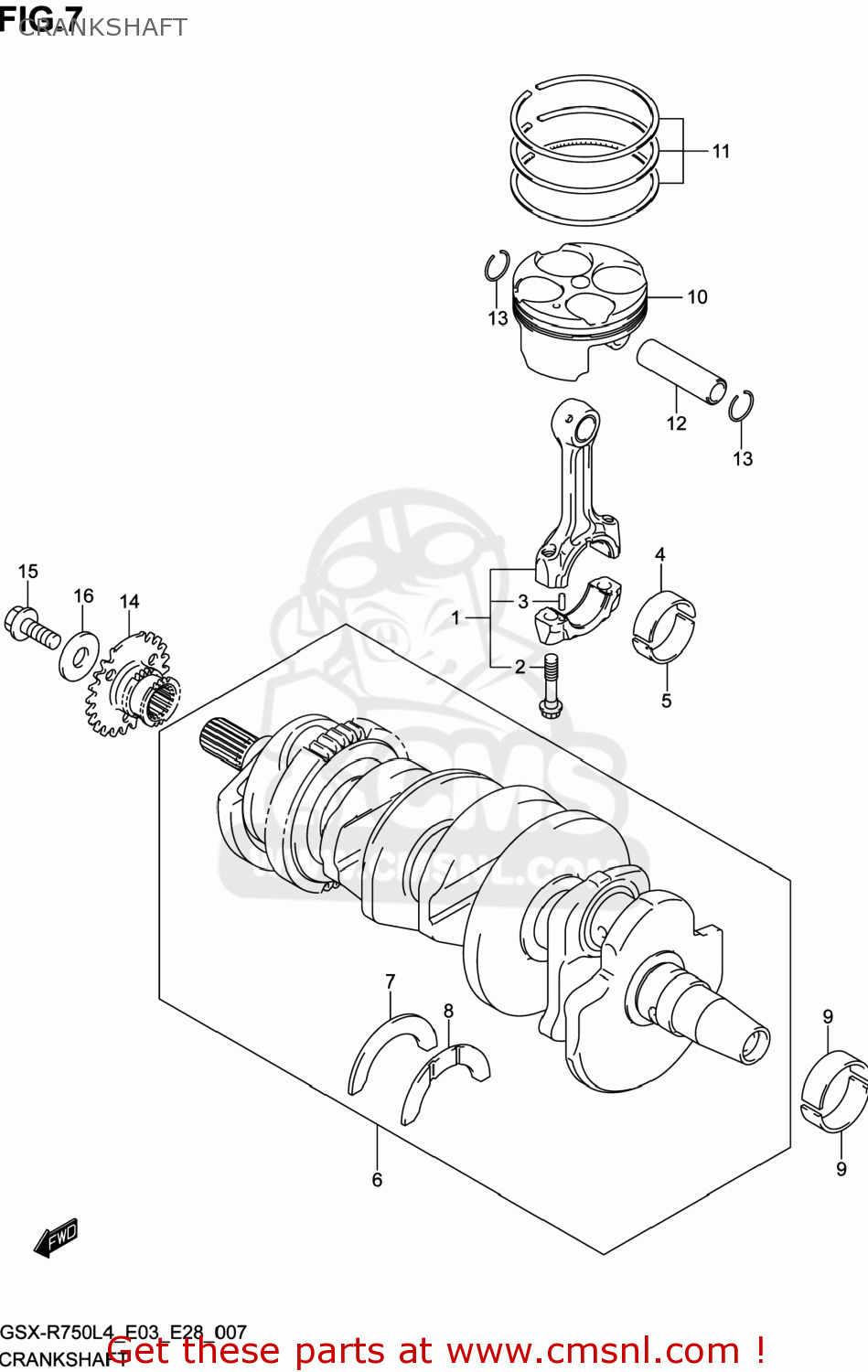

CRANKSHAFT

ref

part #

description

quantity

1

1216015J00
ref: 1

CONNECTING ROD ASSY

€ 148.00

2

1216335F00
ref: 2

BOLT,CONNECTING ROD

€ 9.00

3

0422104089
ref: 3

PIN

€ 1.50

4-1

1216415J000A0
ref: 4-1

BEARING,CRANK PIN

€ 33.00

4-2

1216415J000B0
ref: 4-2

BEARING,CRANK PIN

€ 33.00

4-3

1216415J000C0
ref: 4-3

BEARING,CRANK PIN

€ 35.00

4-4

1216415J000D0
ref: 4-4

BEARING,CRANK PIN

€ 34.50

5-1

1216430G000A0
ref: 5-1

BEARING,CRANK PIN GREEN

€ 12.50

5-2

1216430G000B0
ref: 5-2

BEARING,CRANK PIN BLACK

€ 12.50

5-3

1216430G000C0
ref: 5-3

BEARING,CRANK PIN BROWN

€ 12.50

5-4

1216430G000D0
ref: 5-4

BEARING,CRANK PIN YELLOW

€ 12.50

6

1200002850
ref: 6

CRANKSHAFT SET

€ 994.00

7

1222817E000D0
ref: 7

BEARING,CRANK THRUST(GREEN)

€ 8.00

8-1

1222817E000A0
ref: 8-1

BEARING,CRANK THRUST(RED)

€ 7.50

8-2

1222817E000B0
ref: 8-2

BEARING,CRANK THRUST(BLACK)

€ 7.50

8-3

1222817E000C0
ref: 8-3

BEARING,CRANK THRUST(BLUE)

€ 7.50

8-4

1222817E000D0
ref: 8-4

BEARING,CRANK THRUST(GREEN)

€ 8.00

8-5

1222817E000E0
ref: 8-5

BEARING,CRANK THRUST(YELLOW)

€ 7.50

8-6

1222817E000F0
ref: 8-6

BEARING,CRANK THRUST(WHITE)

€ 7.50

9-1

1222902H000A0
ref: 9-1

BEARING,CRANKSHAFT

€ 15.50

9-2

1222902H000B0
ref: 9-2

BEARING,CRANKSHAFT

€ 15.50

9-3

1222902H000C0
ref: 9-3

BEARING,CRANKSHAFT

€ 15.50

9-4

1222902H000D0
ref: 9-4

BEARING,CRANKSHAFT

€ 15.50

9-5

1222902H000E0
ref: 9-5

BEARING,CRANKSHAFT

€ 14.50

10

1211102H100F0
ref: 10

PISTON

€ 107.50

11

1214002H00
ref: 11

RING SET,PISTON

€ 63.00

12

1215141G00
ref: 12

PIN,PISTON

€ 12.00

13

0938115001
ref: 13

CIRCLIP

€ 1.50

14

1273101H00
ref: 14

SPROCKET,CAM CHAIN DRIVE

€ 79.00

15

0910310189
ref: 15

BOLT(10X23)

€ 4.50

16

0821110285
ref: 16

WASHER

€ 2.50
