FRAME COVER
GSXR750 2014 (L4) USA (E03)

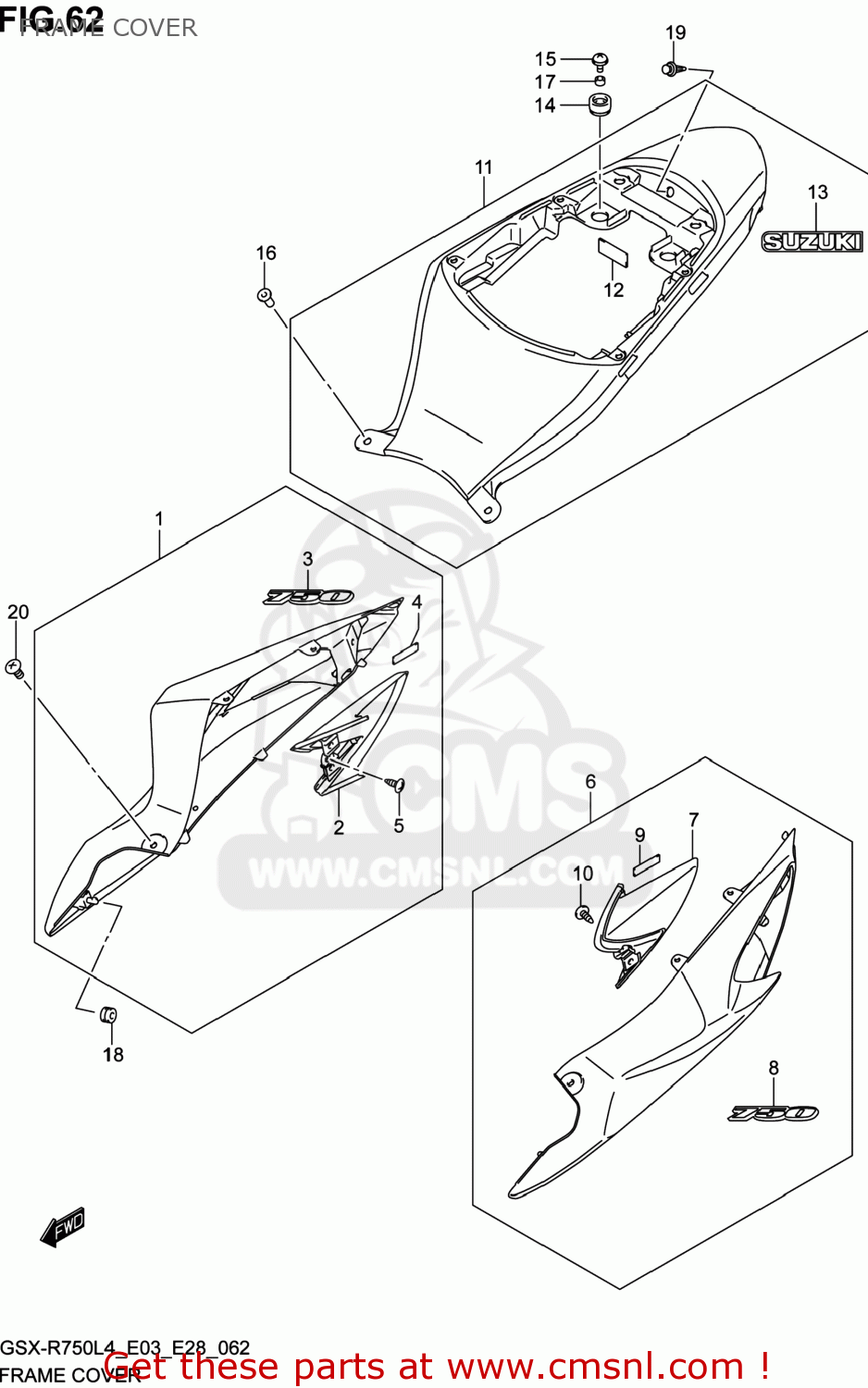

Frame cover diagram GSXR750 2014 (L4) USA (E03)
FRAME COVER GSXR750 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4710015J10YWW
ref: 1-1
COVER ASSY,FRAME,R
€ 84.50
1-2
4710015J10YVZ
ref: 1-2
COVER ASSY,FRAME,R
€ 84.50
1-3
4710015J10RB5
ref: 1-3
COVER ASSY,FRAME,R
€ 87.50
2
4761114J00
ref: 2
COVER,FRAME RR,R
€ 10.00
3-1
6813115J00JWH
ref: 3-1
EMBLEM,750
€ 12.00
3-2
6813115J00G3S
ref: 3-2
EMBLEM,750
€ 13.00
3-3
6813115J00CVR
ref: 3-3
EMBLEM,750
€ 10.50
4
9444306G00
ref: 4
TAPE(6X25X0.13)
€ 2.00
5
035410512A
ref: 5
SCREW
€ 2.00
6-1
4720015J10YWW
ref: 6-1
COVER ASSY,FRAME,L
€ 87.50
6-2
4720015J10YVZ
ref: 6-2
COVER ASSY,FRAME,L
€ 93.50
6-3
4720015J10RB5
ref: 6-3
COVER ASSY,FRAME,L
€ 87.50
7
4762114J00
ref: 7
COVER,FRAME RR,L
€ 10.00
8-1
6813115J00JWH
ref: 8-1
EMBLEM,750
€ 12.00
8-2
6813115J00G3S
ref: 8-2
EMBLEM,750
€ 13.00
8-3
6813115J00CVR
ref: 8-3
EMBLEM,750
€ 10.50
9
9444306G00
ref: 9
TAPE(6X25X0.13)
€ 2.00
10
035410512A
ref: 10
SCREW
€ 2.00
11
4730014J00
ref: 11
COVER ASSY,FRAME CTR
€ 50.50
12
4812814FA0
ref: 12
CUSHION
€ 3.00
13
9444306G00
ref: 13
TAPE(6X25X0.13)
€ 2.00
14
4731237H00
ref: 14
CUSHION,FRAME COVER RR
€ 2.00
15
0913606056
ref: 15
SCREW(6X16)
€ 2.00
16
0915905019
ref: 16
NUT
€ 5.50
17
0918006283
ref: 17
SPACER(6.5X10X7)
€ 2.00
18
0932006504
ref: 18
CUSHION
€ 4.00
19
09409063145PK
ref: 19
CLIP(BLACK)
€ 3.50
20
021421520B
ref: 20
SCREW
€ 2.00
