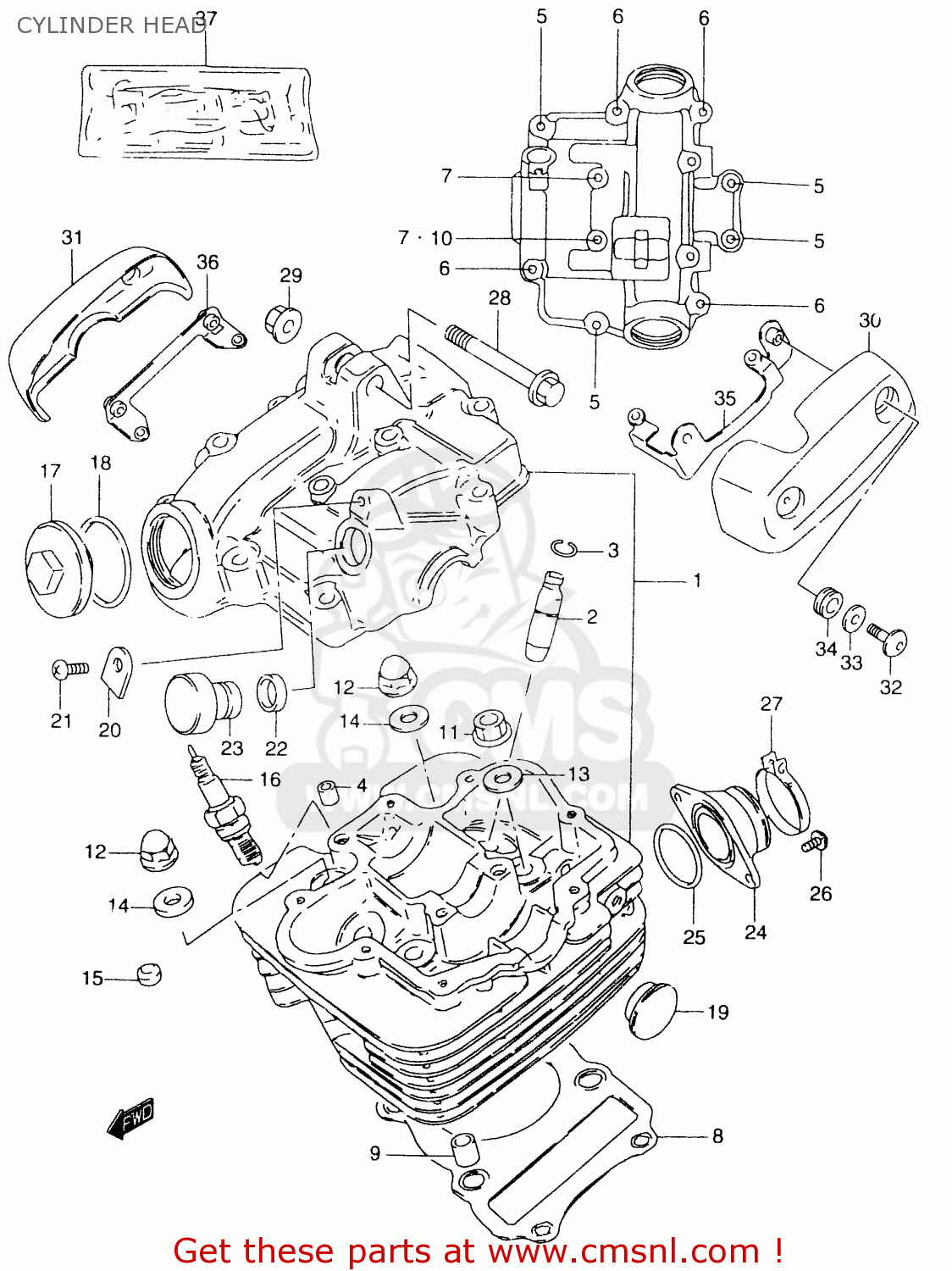

CYLINDER HEAD

ref

part #

description

quantity

1

1110005263
ref: 1

HEAD ASSY,CYLINDER

€ 727.50

2

1111505270
ref: 2

GUIDE,VALVE

€ 18.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0920608001
ref: 4

PIN(6.2X8X11)

€ 2.00

5

0155006357
ref: 5

BOLT

€ 2.50

6

0155006407
ref: 6

BOLT

€ 2.50

7

0155006607
ref: 7

BOLT

€ 2.50

8

1114105201
ref: 8

GASKET,CYLINDER HEAD (NAS)

€ 7.50

9

0421111169
ref: 9

PIN

€ 2.00

10

0916806023
ref: 10

GASKET(5.8X13X1.2) (NAS)

€ 2.00

11

0831610083
ref: 11

NUT

€ 3.00

12

0915908049
ref: 12

NUT

€ 7.00

13

0916008053
ref: 13

WASHER (8.5X19X2.3)

€ 2.00

14

0916808021
ref: 14

GASKET(8.5X17X2.3) (NAS)

€ 3.00

15

1115145000
ref: 15

PAD,CYLINDER HEAD

€ 3.00

16

0948200399
ref: 16

PLUG,SPARK(DR8EA)

€ 3.50

16

0948200223
ref: 16

PLUG,SPARK(X24ESR-U)

€ 3.50

17

1117518900
ref: 17

CAP,INSPECTION

€ 14.00

18

0928030001
ref: 18

O RING(D:3,ID:29.5)

€ 2.00

19

0924122002
ref: 19

PLUG(OD:22.5)

€ 5.50

20

2644933000
ref: 20

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

21

0912805101
ref: 21

SCREW(5X12)

€ 1.50

22

2645145000A
ref: 22

SEAL,TACHOMETER DRIVEN

€ 4.50

23

2644245000
ref: 23

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

24

1311012F00
ref: 24

PIPE ASSY,INT.

€ 38.00

24

1311012F10
ref: 24
GZ125UW E22

PIPE,INTAKE

€ 41.00

25

0928032006
ref: 25

O RING(D:2.4,ID:31.7)

€ 2.50

26

0212206163
ref: 26

SCREW ,6X16

€ 2.00

26

0913906014
ref: 26
GZ125UW E22

SCREW(6X16)

€ 2.50

27

0940246208
ref: 27

CLAMP

€ 4.50

28

0910308081
ref: 28

BOLT(8X50)

€ 3.50

29

0831931087
ref: 29

NUT

€ 2.50

30

1117112F00
ref: 30

CAP,CYLINDER HEAD COVER,L

€ 110.50

31

1117212F00
ref: 31

CAP,CYLINDER HEAD COVER,R

€ 62.00

32

1117812F00
ref: 32

BOLT

€ 5.50

33

0916006134
ref: 33

WASHER(6.5X24X1.6)

€ 1.50

34

0932013015
ref: 34

CUSHION

€ 3.00

35

1117912F00
ref: 35

BRACKET, CAP

€ 138.00

36

1117912F10
ref: 36

BRACKET, HEAD CAP RH

€ 132.00

37

1140105863
ref: 37

GASKET SET (NAS)

€ 79.50
