CAM CHAIN

GZ125 2000 (Y) (E01)

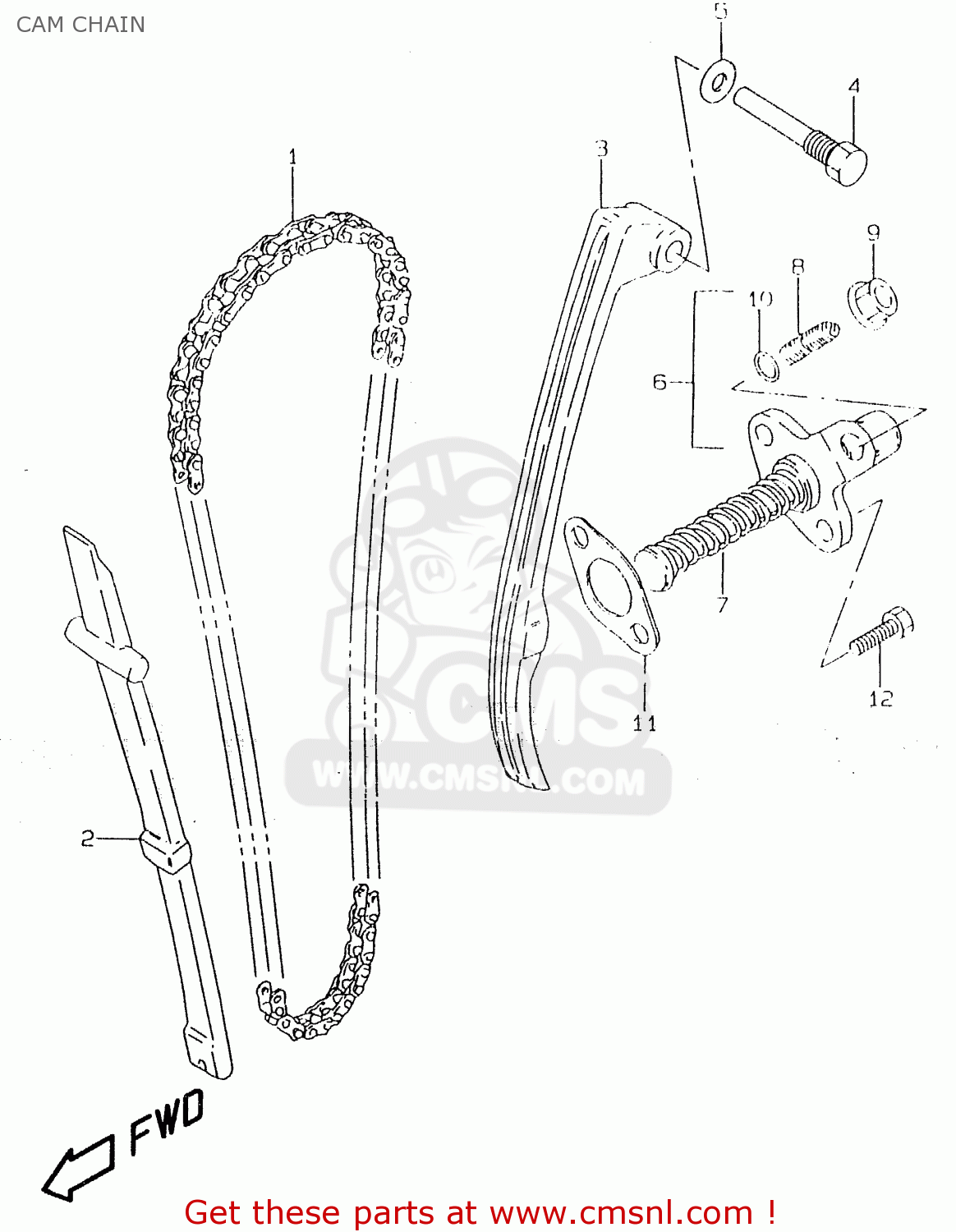

Cam chain diagram GZ125 2000 (Y) (E01)

prices are in EUR

ref

part #

description

quantity

1276044A00
ref: 1
98LE

CHAIN,CAMSHAFT DRIVE

€ 54.00

1277105200
ref: 2

GUIDE,CAM CHAIN

€ 20.50

1281105220
ref: 3

TENSIONER,CAM CHAIN

€ 24.50

1281232400
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

1283032452
ref: 6

ADJUSTER ASSY,TENSIONER

€ 48.00

0944011018
ref: 7

SPRING

€ 2.00

1283845001
ref: 8

SCREW

€ 6.00

0831610083
ref: 9

NUT

€ 3.00

0928006005
ref: 10

O RING(D:1.9,ID:5.7)

€ 2.50

1283732410
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.50

0150006203
ref: 12

BOLT

€ 2.00
