FRAME

GZ125 2000 (Y) (E01)

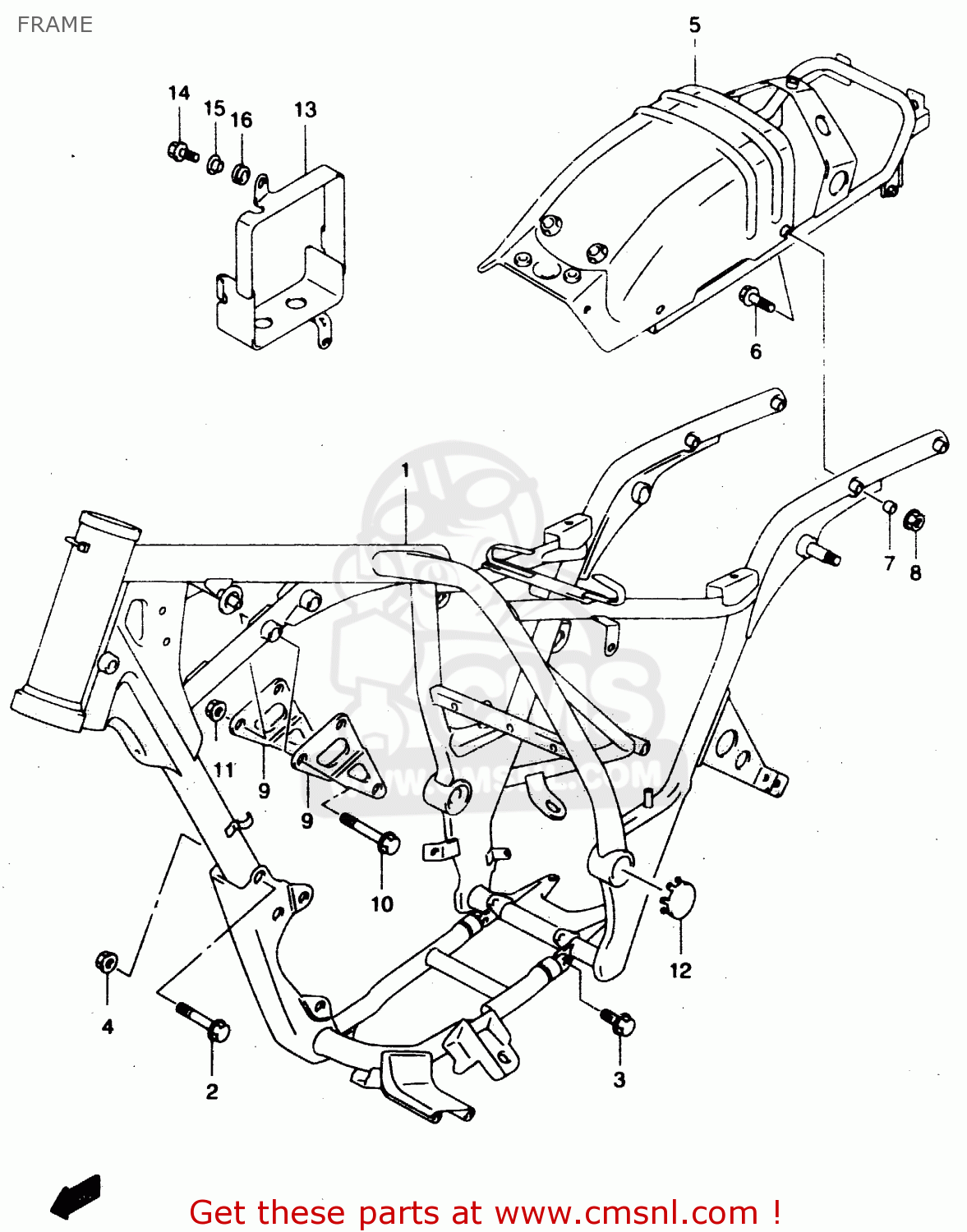

Frame diagram GZ125 2000 (Y) (E01)

FRAME GZ125 2000 (Y) (E01)

FRAME GZ125 2000 (Y) (E01)

prices are in EUR

ref

part #

description

quantity

1

4110012F01019
ref: 1

FRAME (BLACK)

€ 1,121.00

2

0155008603
ref: 2

BOLT

€ 3.50

3

0155008253
ref: 3

BOLT

€ 2.50

4

0831320087
ref: 4

NUT

€ 2.50

5

4158012F00
ref: 5

BRACE,RR FRAME

€ 115.50

6

0155008553
ref: 6

BOLT

€ 3.00

7

0918008208
ref: 7

SPACER(8.5X16X10)

€ 7.50

8

0831610083
ref: 8

NUT

€ 3.00

9

4199112F00
ref: 9

PLATE,ENG MTG UPR

€ 5.00

10

0910308289
ref: 10

BOLT(8X50)

€ 5.00

11

0831931087
ref: 11

NUT

€ 2.50

12

6122238A01
ref: 12

CAP,RR SWINGING ARM PIVOT,R

€ 6.50

13

4154012F00
ref: 13

HOLDER,BATTERY

€ 24.50

14

0155006163
ref: 14

BOLT

€ 2.50

15

0916906065
ref: 15

WASHER

€ 3.50

16

0932008021
ref: 16

CUSHION

€ 4.00
