CYLINDER

GZ125C 2000 (Y) (E01)

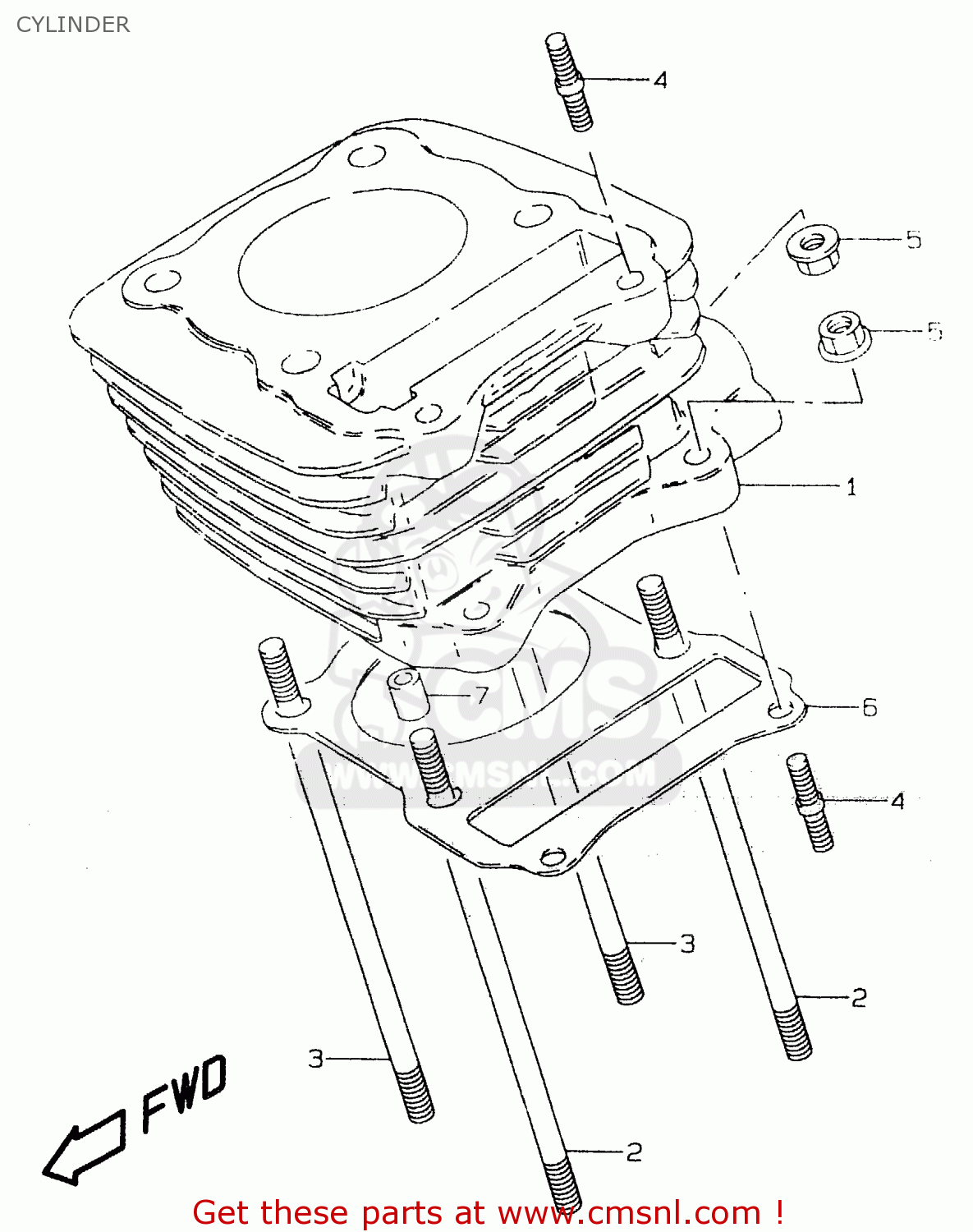

Cylinder diagram GZ125C 2000 (Y) (E01)

CYLINDER GZ125C 2000 (Y) (E01)

CYLINDER GZ125C 2000 (Y) (E01)

prices are in EUR

ref

part #

description

quantity

1

11210052020F0
ref: 1

CYLINDER

€ 255.50

2

0910808062
ref: 2

BOLT,STUD

€ 4.50

3

0910808089
ref: 3

BOLT,STUD

€ 6.00

4

0142106257
ref: 4

BOLT,STUD

€ 2.50

5

0831610067
ref: 5

NUT

€ 2.00

6

1124105311
ref: 6

GASKET,CYLINDER (NAS)

€ 4.50

7

0421111149
ref: 7

PIN

€ 2.00
