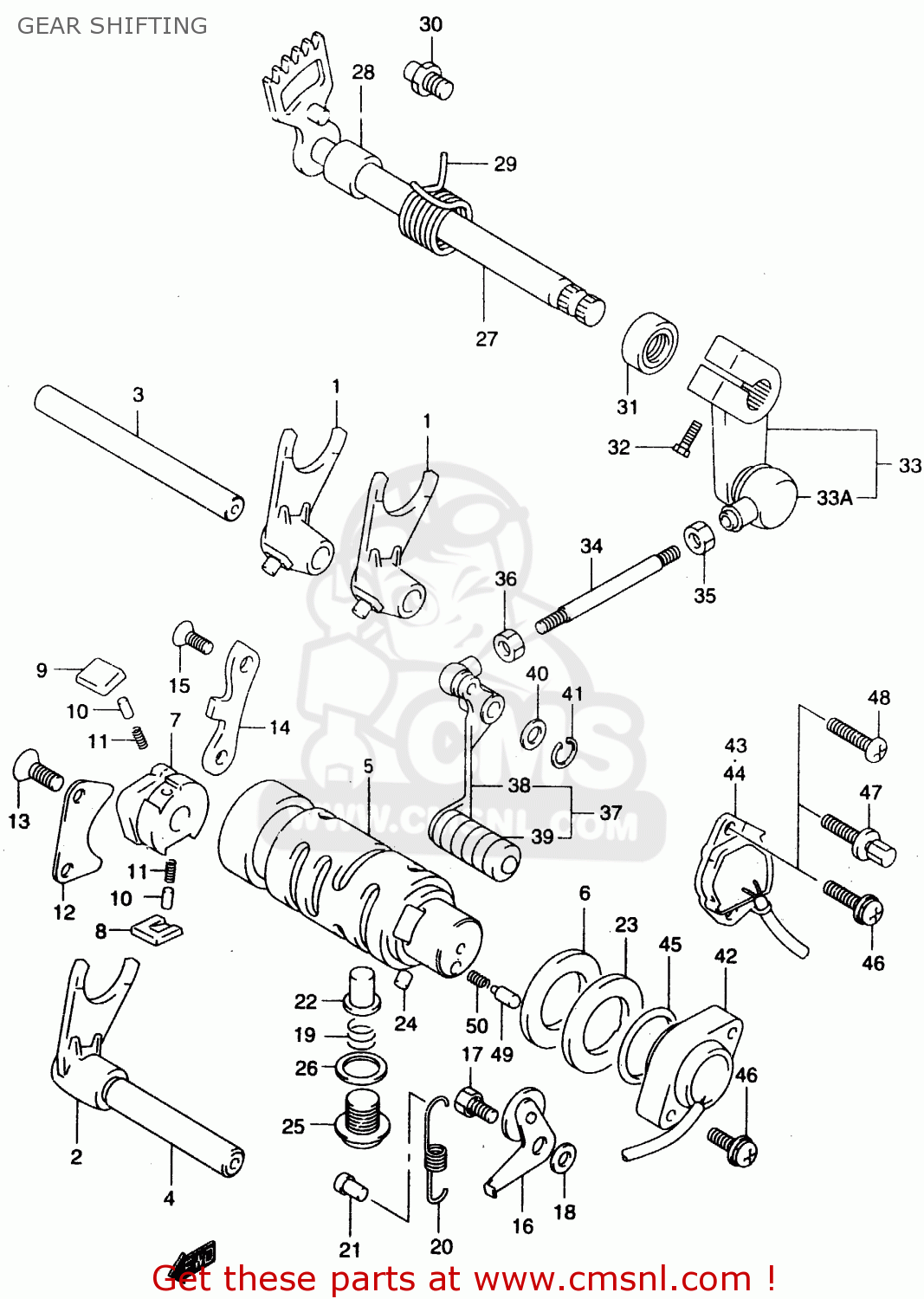

GEAR SHIFTING

ref

part #

description

quantity

1

2522108300
ref: 1

FORK,GEAR SHIFT NO.2

€ 54.50

2

2523105201
ref: 2

FORK,GEAR SHIFT NO.3

€ 54.50

3

2541116701
ref: 3

SHAFT,GEAR SHIFT FORK(L:109)

€ 11.50

4

2542135403
ref: 4

SHAFT,GEAR SHIFT FORK

€ 19.00

5

2531012F00
ref: 5

CAM,GEAR SHIFT

€ 70.00

6

0918125251
ref: 6

SHIM(25X40X1)

€ 2.50

7

2532231310
ref: 7

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

8

2532334201
ref: 8

PAWL,GEAR SHIFT NO.1

€ 6.00

9

2532434201
ref: 9

PAWL,GEAR SHIFT NO.2

€ 6.00

10

0926105003
ref: 10

PIN(5X8)

€ 1.50

11

0944004003
ref: 11

SPRING

€ 1.50

12

2533130001
ref: 12

LIFTER,GEAR SHIFT POLE

€ 3.50

13

0212206123
ref: 13

SCREW

€ 3.00

14

2534105200
ref: 14

GUIDE,GEAR SHIFT CAM

€ 6.50

15

0212206123
ref: 15

SCREW

€ 3.00

16

2535044A00
ref: 16

STOPPER,GEAR SHIFT CAM

€ 8.00

17

0911106054
ref: 17

BOLT(6X14.6)

€ 1.50

18

0821106141
ref: 18

WASHER

€ 2.50

19

0944011016
ref: 19
L:27

SPRING

€ 7.50

20

0944308044
ref: 20

SPRING

€ 1.50

21

0922304001
ref: 21

RIVET

€ 1.50

22

2535130010
ref: 22

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

23

2538145400
ref: 23

PLATE,GEAR SHIFT CAM STOPPER

€ 10.50

24

0422104069
ref: 24

PIN

€ 2.00

25

0924714026
ref: 25

PLUG(14X12)

€ 3.50

26

0916814002
ref: 26

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

27

2551005201
ref: 27

SHAFT,GEAR SHIFT

€ 42.50

28

0918012068
ref: 28

SPACER(12X20X15.3)

€ 3.00

29

0944426013
ref: 29

SPRING

€ 3.50

30

2567101000
ref: 30

STOPPER,GEAR SHIFT CAM

€ 3.00

31

0928512002
ref: 31

OIL SEAL

€ 7.00

32

0150006203
ref: 32

BOLT

€ 2.00

33

2552022A00
ref: 33

ARM,GEAR SHIFT LINK

€ 46.50

33A

2552647000
ref: 33A

COVER,DUST

€ 3.50

34

2552512F00
ref: 34

ROD,GEAR SHIFT LINK

€ 18.00

35

0914006011
ref: 35

NUT

€ 1.50

36

0831000067
ref: 36

NUT

€ 2.50

37

2560013F00
ref: 37

LEVER ASSY,GEAR SHIFT

€ 53.00

38

2552647000
ref: 38

COVER,DUST

€ 3.50

39

2565220C00
ref: 39

RUBBER,GEAR SHIFT PEDAL

€ 8.00

40

0916012011
ref: 40

WASHER(12.5X20X1)

€ 1.50

41

0833131126
ref: 41

CIRCLIP,12 MM

€ 2.00

42

3772012F00
ref: 42

BASE ASSY,GEAR SHIFT TERMINAL

€ 47.00

43

3773012F10
ref: 43
GZ125 E22

BASE ASSY,GEAR SHIFT TERMINAL

€ 119.50

44

3773012F00
ref: 44
GZ125U E22

BASE ASSY,GEAR SHIFT TERMINAL

€ 118.50

45

0928026003
ref: 45

O-RING (D:2.4 ID:26.2)

€ 2.50

46

0211275203
ref: 46

SCREW

€ 3.00

47

0911905022
ref: 47
GZ125U E22

BOLT

€ 2.00

48

0214205203
ref: 48
GZ125 E22

SCREW 5X20

€ 2.00

49

0920905011
ref: 49

PIN(5X15.5)

€ 2.00

49

0920905011
ref: 49
E22

PIN(5X15.5)

€ 2.00

50

0944004010
ref: 50

SPRING

€ 1.50

50

0944004010
ref: 50
E22

SPRING

€ 1.50

all assemblies
