FUEL TANK (MODEL K7)

GZ250 MARAUDER 2004 (K4) USA (E03)

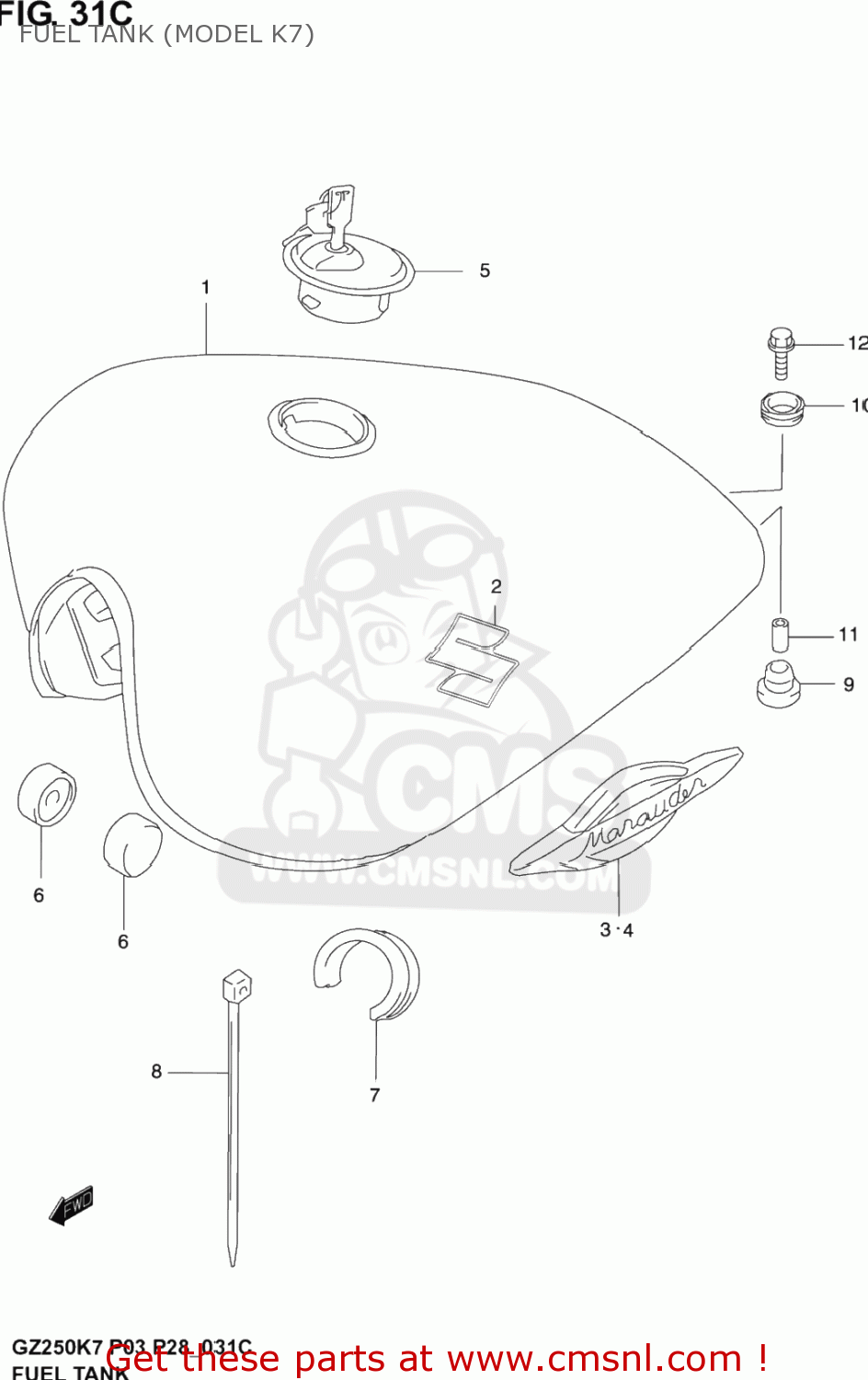

Fuel tank (model k7) diagram GZ250 MARAUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410012FL0YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 0.00

1-2

4410012FL0YBA
ref: 1-2

TANK ASSY,FUEL(BLUE)

€ 0.00

1-3

4410012FP0YAY
ref: 1-3

TANK ASSY,FUEL(BLACK)

€ 0.00

1-4

4410012FP0YBA
ref: 1-4

TANK ASSY,FUEL(BLUE)

€ 0.00

6811118G20
ref: 2

EMBLEM,S

€ 22.50

68111C12F00J00
ref: 3

EMBLEM,TANK

€ 18.00

68121C12F00J000
ref: 4

EMBLEM. FUEL TANK LH

€ 18.00

5-1

4420012870
ref: 5-1

CAP SET,FUEL TANK

€ 105.00

5-2

4420038850
ref: 5-2

CAP SET,FUEL TANK

€ 135.50

0932910007
ref: 6

CUSHION

€ 3.00

4454103F00
ref: 7

CUSHION,FUEL TANK SIDE

€ 17.50

0940720405
ref: 8
09407-25402

CLAMP

€ 4.50

0932910007
ref: 9

CUSHION

€ 3.00

4451242E00
ref: 10

CUSHION,FUEL TANK RR

€ 3.50

0918006271
ref: 11

SPACER(6.5X9X18)

€ 2.00

0155006303
ref: 12
01550-0630A

BOLT

€ 2.50
