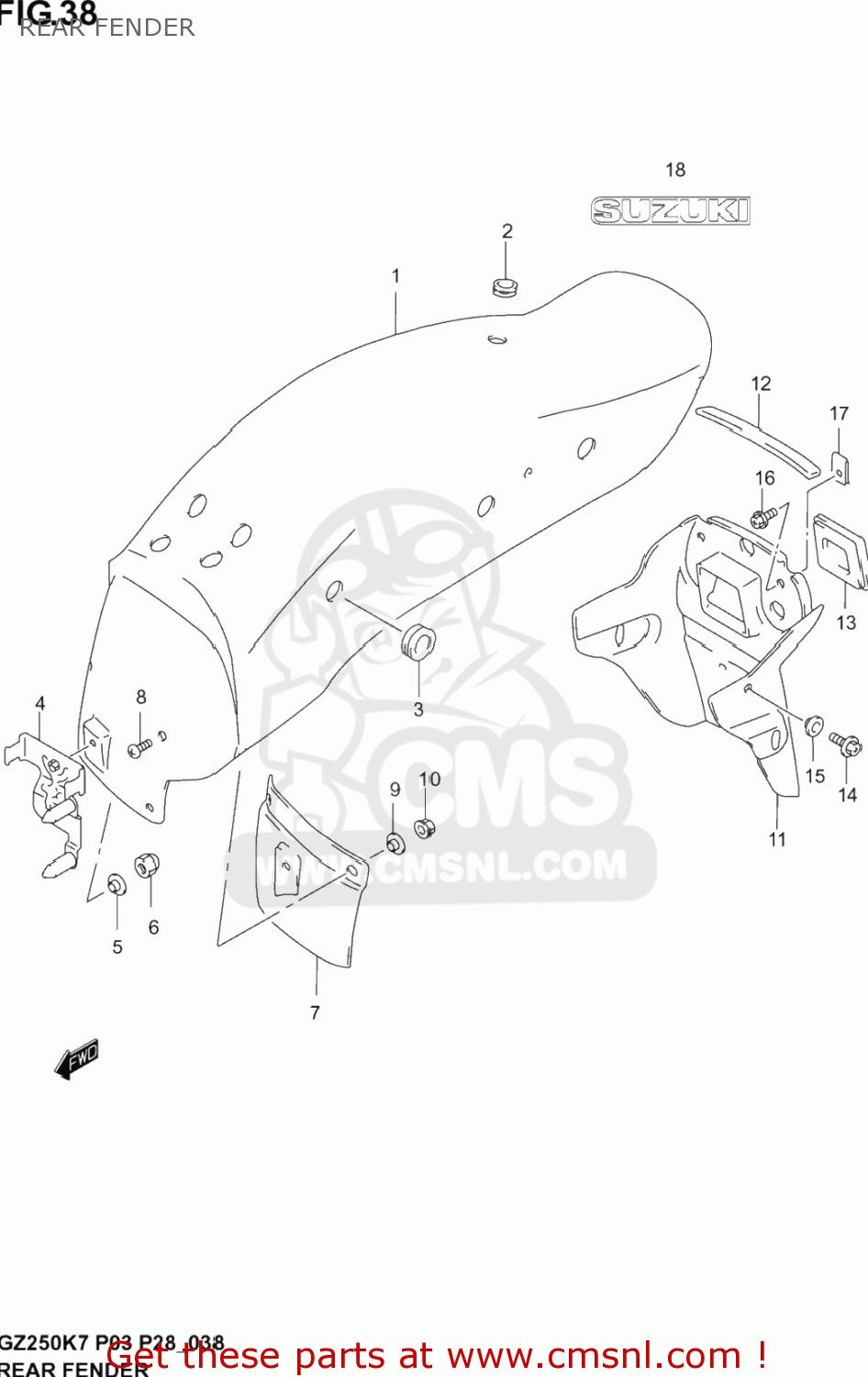

REAR FENDER

ref

part #

description

quantity

1-1

6311112F00Y7L
ref: 1-1

FENDER,RR

€ 23.50

1-2

6311112F00Y7H
ref: 1-2
63111-12F00-NE2

FENDER, REAR (BLUE)

€ 23.50

1-2

6311112F00Y7H
ref: 1-2
63111-12F00-NE2

FENDER, REAR (BLUE)

€ 23.50

1-3

6311112F00YC2
ref: 1-3

FENDER, REAR (BLUE) MODEL K5 E28

€ 0.00

1-4

6311112F00YLV
ref: 1-4

FENDER, REAR (SILVER)

€ 0.00

1-5

6311112F00YAY
ref: 1-5

FENDER,REAR(BLA

€ 102.00

1-6

6311112F00YBA
ref: 1-6

FENDER,REAR(BLU

€ 0.00

2

0932013015
ref: 2

CUSHION

€ 3.00

3

6311812F00
ref: 3

CUSHION,RR FENDER

€ 14.50

4

6314013F00
ref: 4

BRACKET,RR FENDER

€ 11.00

5

0916906071
ref: 5

WASHER

€ 2.50

6

0831310063
ref: 6
08313-1006A

NUT

€ 2.00

7

63331C12F00J000
ref: 7

MUD GUARD, REAR FENDER

€ 5.50

8

0214206163
ref: 8
02142-0616A

SCREW

€ 2.50

9

0916906055
ref: 9

WASHER

€ 2.00

10

0831610063
ref: 10
08316-1006B

NUT

€ 2.50

11

63311C12F00J000
ref: 11

EXTENSION, REAR FENDER

€ 13.50

12

6331248E00
ref: 12

CUSHION,RR FENDER EXTENSION

€ 5.50

13

6319148E00
ref: 13

CAP,RR FENDER EXTENSION

€ 8.00

14

0216206123
ref: 14
02162-0612A

BOLT

€ 1.50

15

0916906071
ref: 15

WASHER

€ 2.50

16

0216206163
ref: 16
02162-0616B

SCREW

€ 2.50

17

4715319C01
ref: 17

PLATE,FRAME COVER

€ 4.00

18-1

6817112F00YD8
ref: 18-1

EMBLEM "SUZUKI" (SILVER)

€ 3.00

18-2

6817112F00YU8
ref: 18-2

EMBLEM "SUZUKI" (GRAY)

€ 4.00

18-3

6817112F00YD8
ref: 18-3

EMBLEM "SUZUKI" (SILVER)

€ 3.00
