HANDLEBAR - CABLE
JR50 1979 (N) USA (E03)

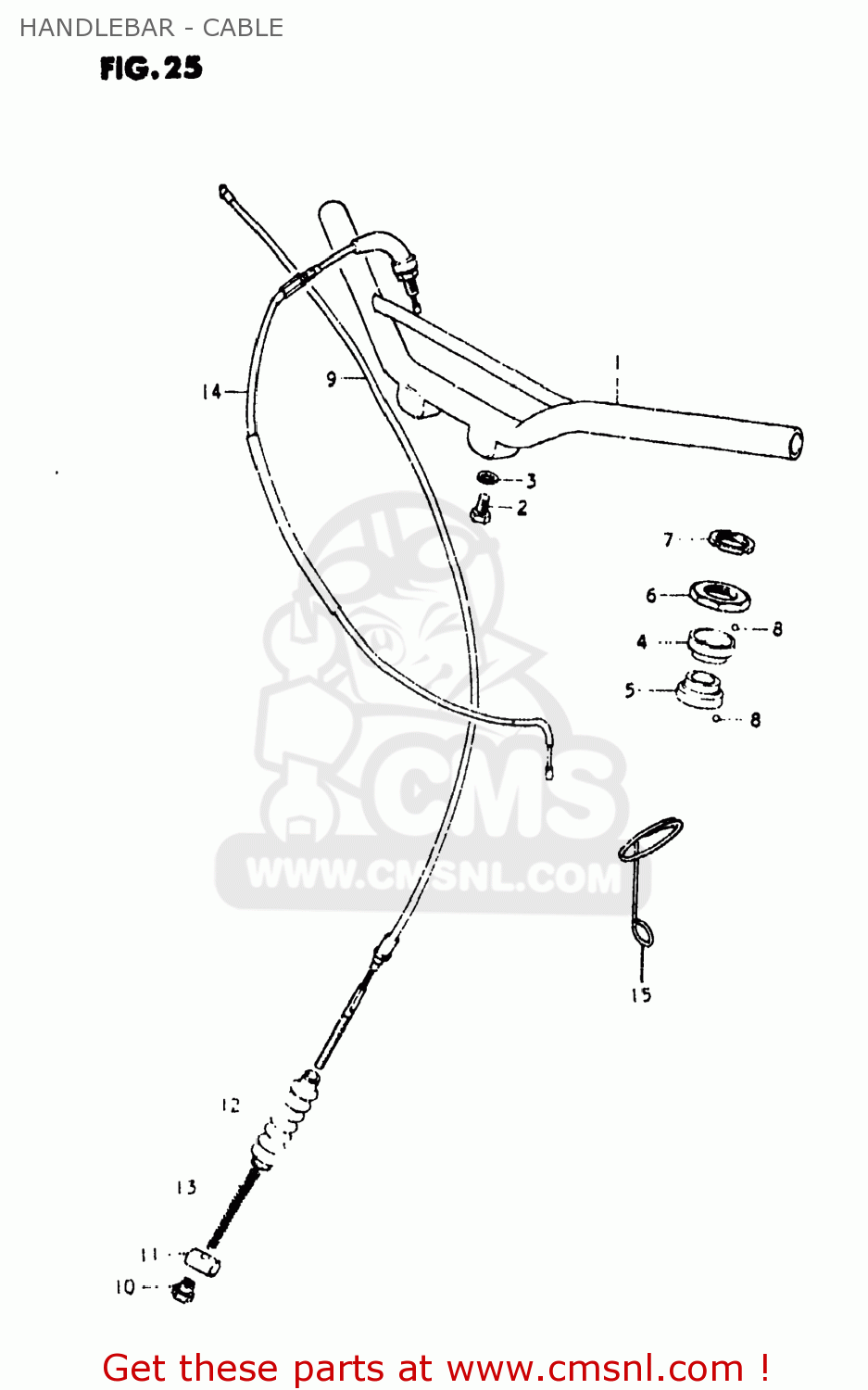

Handlebar - cable diagram JR50 1979 (N) USA (E03)
HANDLEBAR - CABLE JR50 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611004410
ref: 1-1
56110-04411-291
HANDLEBAR
€ 28.50
1-2
5611004411
ref: 1-2
56110-04411-291
HANDLEBAR
€ 28.50
2
0110708168
ref: 2
01500-0816B
BOLT
€ 2.00
3
0832121088
ref: 3
08321-01087
LOCK WASHER
€ 2.00
4
5161104400
ref: 4
51611-16A00
RACE,STEERING,INNER,UPPER
€ 6.50
5
5161204400
ref: 5
51612-29C00
RACE,STEERING,INNER,LOWER
€ 7.50
6
5162104401
ref: 6
RACE,STEERING,OUTER,UPPER
€ 7.00
7
5163104410
ref: 7
99800-10420
NUT,STEERING STEM
€ 7.50
8
0611105004
ref: 8
BALL
€ 1.50
9
5810004410A
ref: 9
58110-04430
CABLE ASSEMBLY,FRONT BRAKE
€ 30.50
10
0915005101
ref: 10
NUT
€ 3.00
11
0920910001
ref: 11
PIN,10X19
€ 2.00
12
0928707001
ref: 12
SEAL,DUST(7X16X75)
€ 2.00
13
0944006003
ref: 13
SPRING
€ 2.00
14
5830004401
ref: 14
58300-04432
CABLE ASSEMBLY,THROTTLE
€ 57.00
15
5862604410
ref: 15
CLIP
€ 0.00
