FRAME - FOOTREST
JR50 1980 (G) USA (E03)

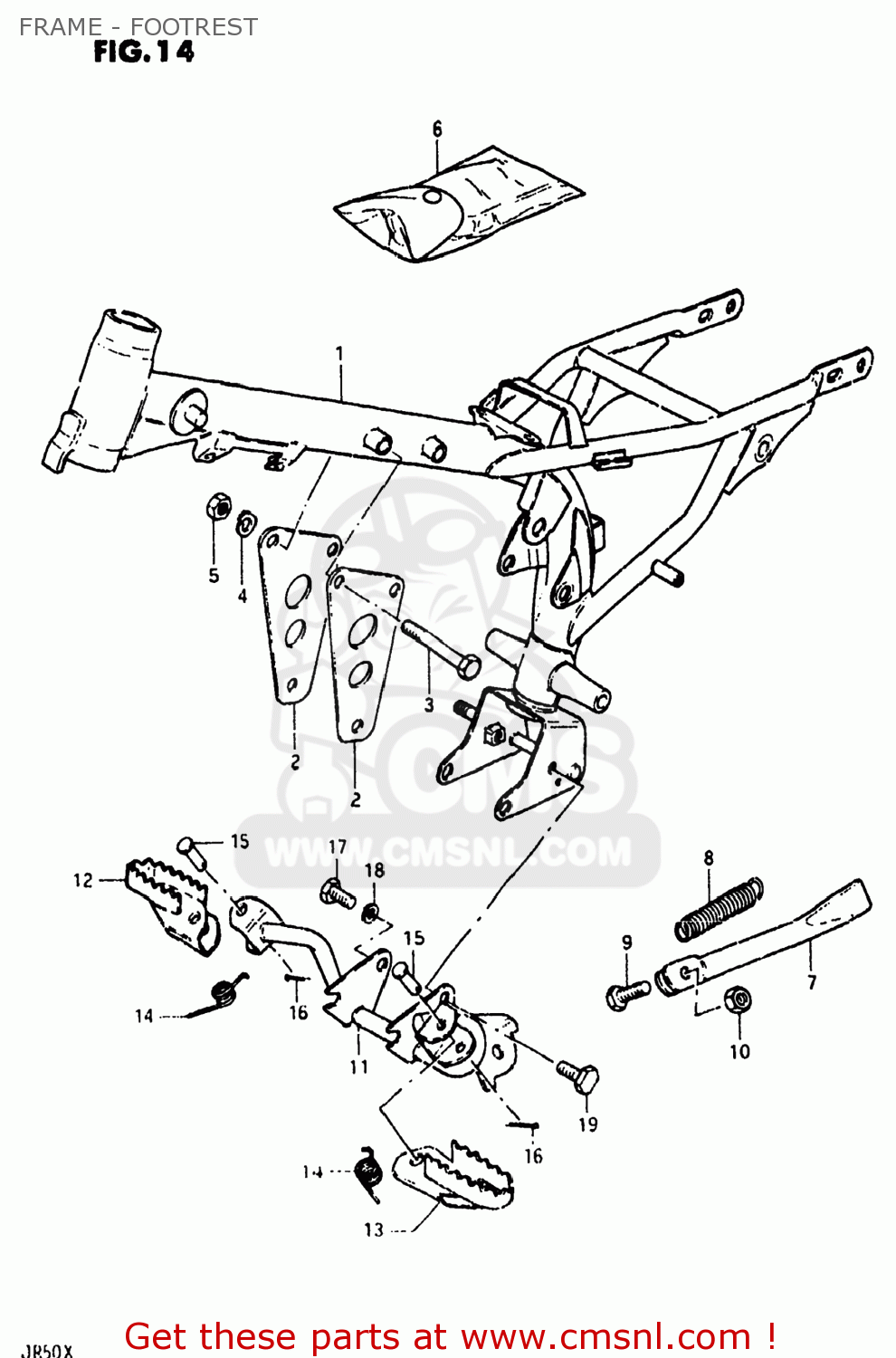

Frame - footrest diagram JR50 1980 (G) USA (E03)
FRAME - FOOTREST JR50 1980 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110004410019
ref: 1
FRAME
€ 99.00
2
4199104410
ref: 2
PLATE,ENG MTG
€ 0.00
3
0110708708
ref: 3
01500-0870B
BOLT
€ 2.50
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
0831012088
ref: 5
08310-00087
NUT
€ 2.00
6
0980000132
ref: 6
09800-21026
TOOL ASSY
€ 9.00
7
4231004410
ref: 7
STAND,SIDE
€ 9.00
8-1
0944314005
ref: 8-1
09443-14017
SPRING
€ 6.50
8-2
0944314017
ref: 8-2
SPRING
€ 6.50
9
0910008145
ref: 9
09100-08274
BOLT 8X22
€ 3.00
10
0831012088
ref: 10
08310-00087
NUT
€ 2.00
11
4351004410
ref: 11
43510-04411
BAR,FRONT FOOTREST
€ 22.50
12
4355046000
ref: 12
43550-46000-019
FOOTREST,FRONT,RIGHT
€ 9.00
13
4356046000
ref: 13
43560-46000-019
FOOTREST
€ 9.00
14
0944814012
ref: 14
SPRING
€ 3.00
15
0920008002
ref: 15
PIN
€ 2.00
16
0411120208
ref: 16
04111-2020A
PIN 20X20
€ 1.50
17
0110708168
ref: 17
01500-0816B
BOLT
€ 2.00
18
0832121088
ref: 18
08321-01087
LOCK WASHER
€ 2.00
19
0910008143
ref: 19
BOLT(8X14)
€ 2.50
