FRONT FORK (JR50T
JR50 1980 (G) USA (E03)

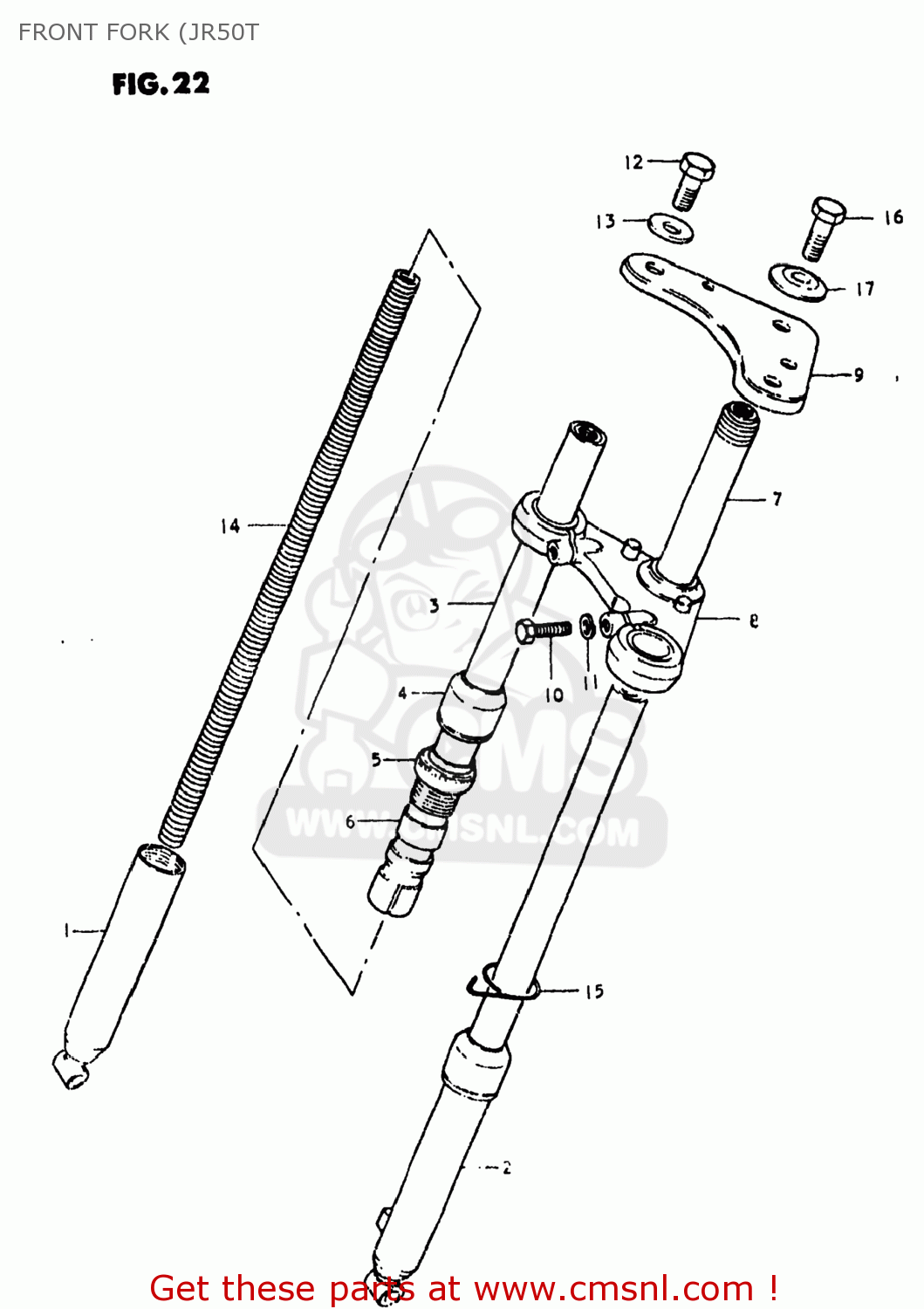

Front fork (jr50t diagram JR50 1980 (G) USA (E03)
FRONT FORK (JR50T JR50 1980 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110004411291
ref:
51100-04412-291
FORK ASSEMBLY,FRONT
€ 119.50
5110004412291
ref:
FORK ASSEMBLY,FRONT
€ 119.50
1-1
5113004410
ref: 1-1
51130-04411-13L
TUBE,OUTER,RIGHT
€ 0.00
1-2
5113004411
ref: 1-2
51130-04411-13L
TUBE,OUTER,RIGHT
€ 0.00
2-1
5114004410
ref: 2-1
51140-04411-13L
TUBE,OUTER,LEFT
€ 0.00
2-2
5114004411
ref: 2-2
51140-04411-13L
TUBE,OUTER,LEFT
€ 0.00
3
5111004410
ref: 3
51110-04420
TUBE,FORK,INNER
€ 39.50
4
5117304410
ref: 4
SEAL,DUST
€ 7.50
5
5115004410
ref: 5
NUT,OUTER
€ 10.50
6
5119304410
ref: 6
STOPPER
€ 2.50
7
5141004411
ref: 7
STEM,STEERING
€ 31.00
8
5162204400
ref: 8
51622-29C20
RACE,STEERING,OUTER,LOWER
€ 4.50
9
5131004410
ref: 9
HEAD,STEERING STEM
€ 14.00
10
0110708258
ref: 10
01500-08257
BOLT
€ 2.50
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
5135204411
ref: 12
BOLT,FRONT FORK,UPPER
€ 2.50
13
5135607010
ref: 13
WASHER,STEERING STEM HEAD
€ 5.00
14
5117104410
ref: 14
SPRING
€ 6.00
15
5157204410
ref: 15
CLIP
€ 0.00
16
5135104410
ref: 16
CAP,FORK INNER TUBE
€ 2.00
17
5135604410
ref: 17
WASHER
€ 0.00
