FRONT FORK (JR50C)
JR50 1981 (X) USA (E03)

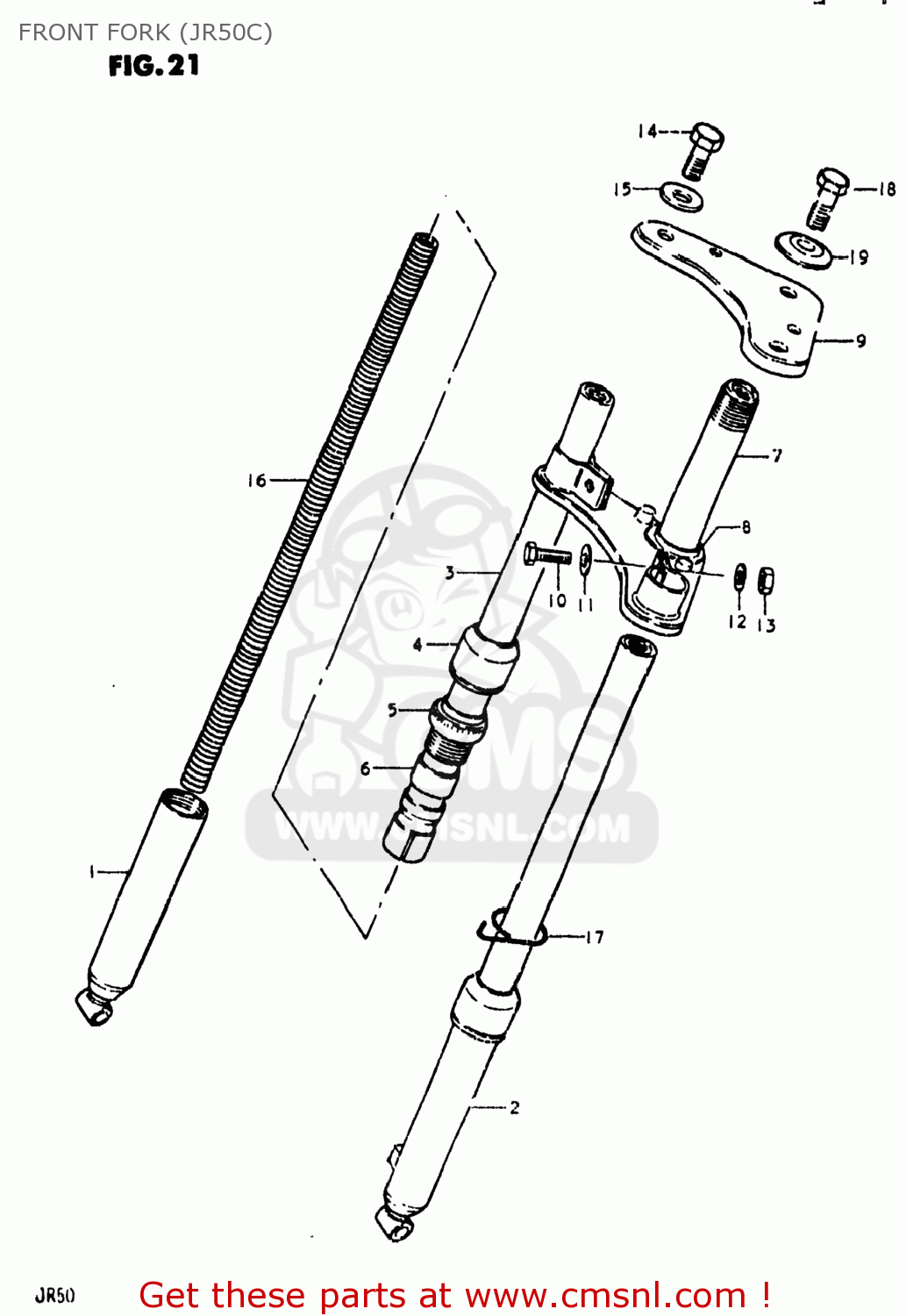

Front fork (jr50c) diagram JR50 1981 (X) USA (E03)
FRONT FORK (JR50C) JR50 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110004410291
ref:
51100-04412-291
FORK ASSEMBLY,FRONT
€ 119.50
1
5113004410
ref: 1
51130-04411-13L
TUBE,OUTER,RIGHT
€ 0.00
2
5114004410
ref: 2
51140-04411-13L
TUBE,OUTER,LEFT
€ 0.00
3
5111004410
ref: 3
51110-04420
TUBE,FORK,INNER
€ 39.50
4
5117304410
ref: 4
SEAL,DUST
€ 7.50
5
5115004410
ref: 5
NUT,OUTER
€ 10.50
6
5119304410
ref: 6
STOPPER
€ 2.50
7
5141004410
ref: 7
51410-04411
STEM,STEERING
€ 31.00
8
5162204400
ref: 8
51622-29C20
RACE,STEERING,OUTER,LOWER
€ 4.50
9
5131004410
ref: 9
HEAD,STEERING STEM
€ 14.00
10
0110706168
ref: 10
01500-06167
BOLT, UPPER
€ 3.00
11
0832211068
ref: 11
08322-0106B
WASHER 6MM
€ 2.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
0831011068
ref: 13
08310-00067
NUT
€ 2.50
14
5135204411
ref: 14
BOLT,FRONT FORK,UPPER
€ 2.50
15
5135607010
ref: 15
WASHER,STEERING STEM HEAD
€ 5.00
16
5117104410
ref: 16
SPRING
€ 6.00
17
5157204410
ref: 17
CLIP
€ 0.00
18
5135104410
ref: 18
CAP,FORK INNER TUBE
€ 2.00
19
5135604410
ref: 19
WASHER
€ 0.00
