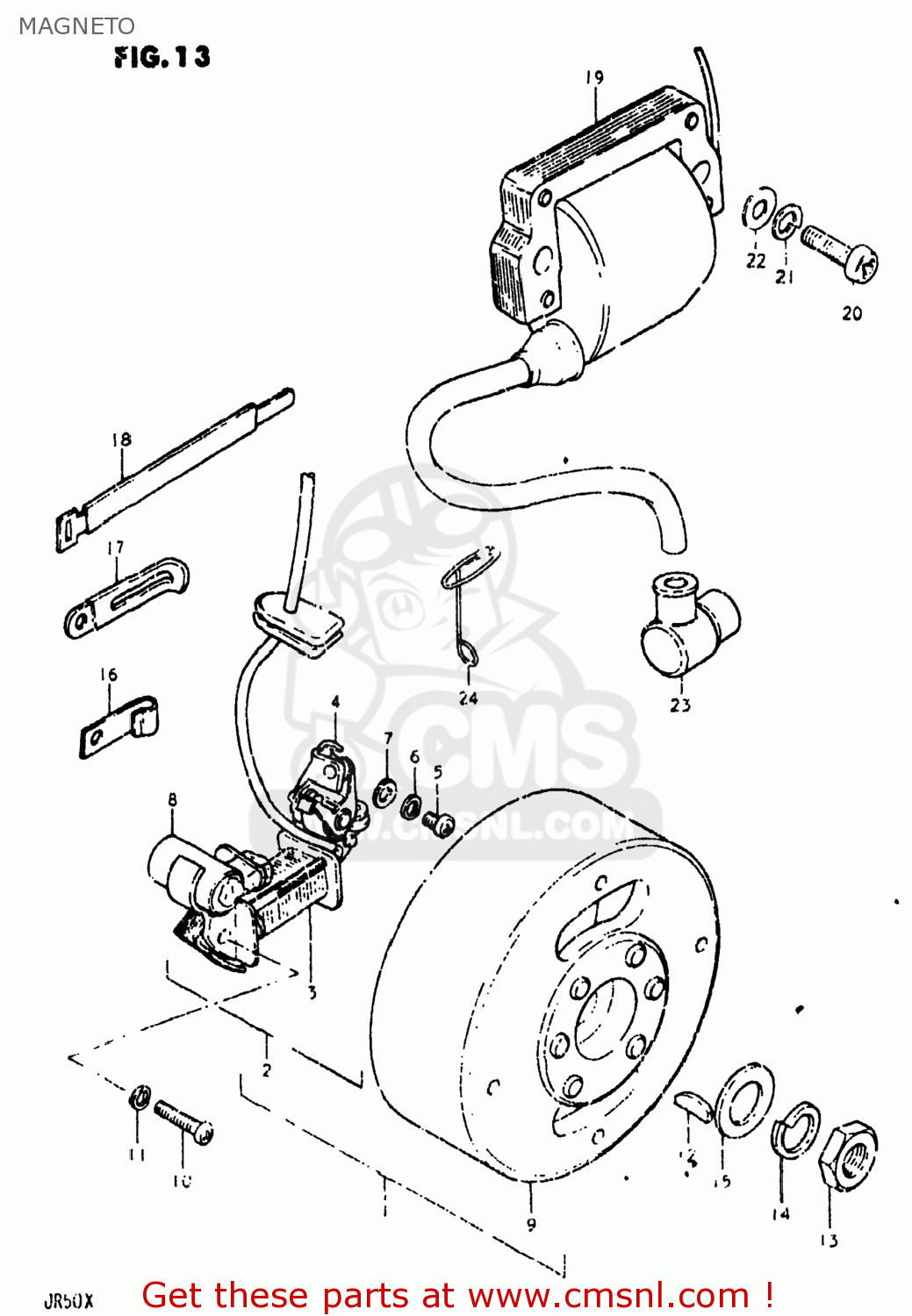

MAGNETO

ref

part #

description

quantity

1

3210004420
ref: 1

MAGNETO ASSEMBLY

€ 54.50

2

3210104420
ref: 2

STATOR ASSEMBLY

€ 54.50

3

3214004020
ref: 3

COIL ASSY,IGNITION PRIMARY

€ 46.00

4

3224004420
ref: 4

POINT ASSY,CONTACT

€ 17.00

5

0912504001
ref: 5

SCREW(4X10)

€ 4.50

6

0832121048
ref: 6
08321-0104A

LOCK WASHER

€ 2.00

7

0832221048
ref: 7
08322-01047

WASHER

€ 2.00

8

3234104020
ref: 8

CONDENSER,MAGNETO

€ 20.00

9

3210204020
ref: 9

ROTOR ASSEMBLY

€ 70.50

10

0211204258
ref: 10
02112-0425B

SCREW 4X25

€ 2.00

11

0832121048
ref: 11
08321-0104A

LOCK WASHER

€ 2.00

12

0834131039
ref: 12

KEY

€ 2.00

13

0914010003
ref: 13
09140-10041

NUT (10MM)

€ 3.50

14

0832121108
ref: 14
08321-01107

LOCK WASHER

€ 2.00

15

0832221108
ref: 15
08322-01107

WASHER

€ 2.50

16

0940305303
ref: 16

CLAMP

€ 2.00

17

0940406401
ref: 17
09404-06432

CLAMP L:35

€ 2.50

18

0940718301
ref: 18

CLAMP

€ 6.00

19

3341043020
ref: 19
33410-43011

COIL ASSEMBLY,IGNITION

€ 89.50

20-1

0211206258
ref: 20-1
02112-06257

SCREW

€ 2.00

20-2

0211206208
ref: 20-2
02112-06207

SCREW

€ 2.00

21

0832121068
ref: 21
08321-01067

LOCK WASHER

€ 2.50

22

0832221068
ref: 22
08322-01067

WASHER

€ 2.00

23

3351041111
ref: 23
33510-20A02

CAP,SPARK PLUG

€ 23.00

24-1

3494930001
ref: 24-1
34949-30002

CLIP,TACHOMETER CABLE

€ 15.50

24-2

3494930002
ref: 24-2

CLIP

€ 15.50

all assemblies
