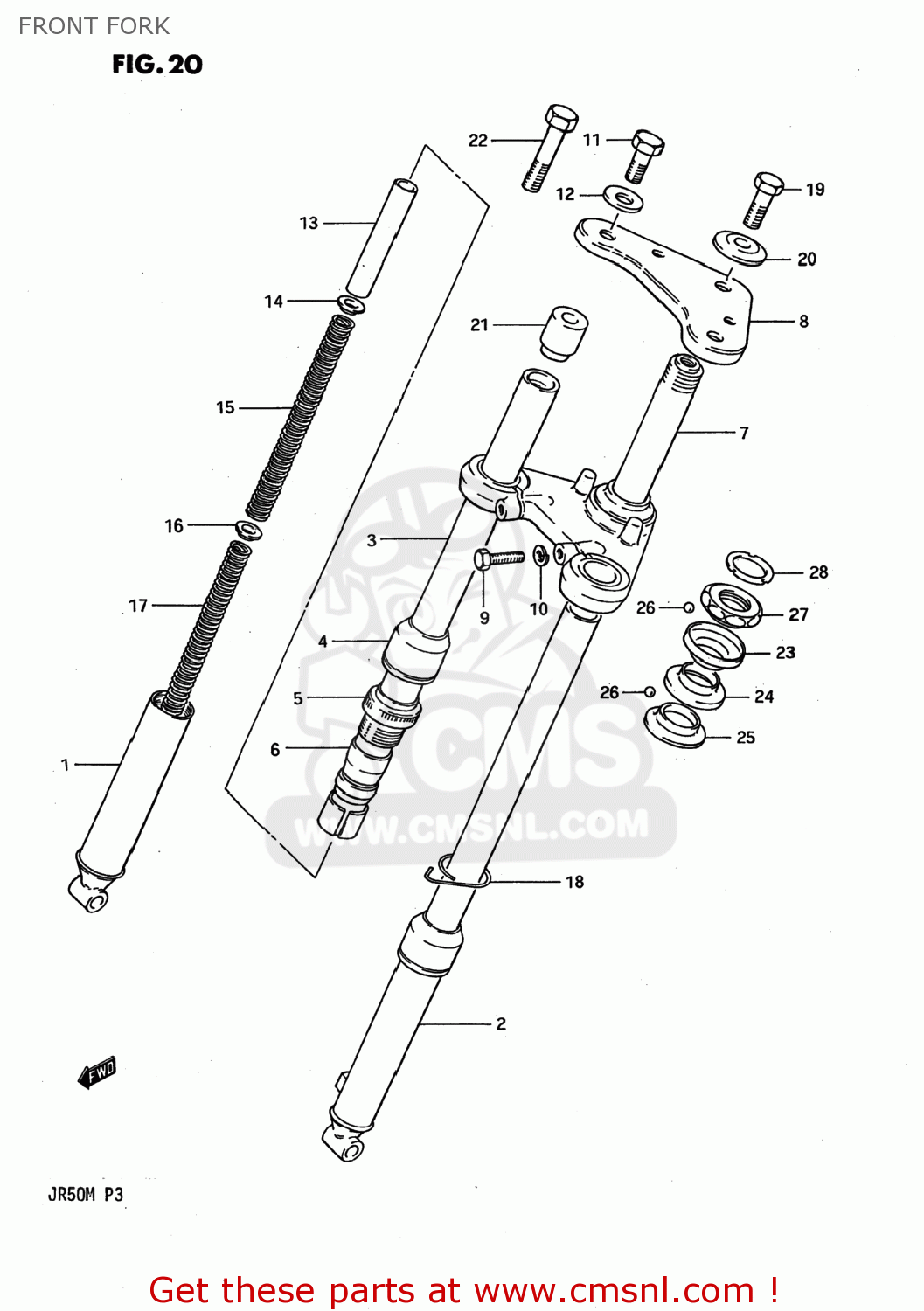

FRONT FORK

ref

part #

description

quantity

5110004430126
ref:
51100-04430-13L

FORK ASSEMBLY,FRONT

€ 288.50

5110004430126
ref:
51100-04430-13L

FORK ASSEMBLY,FRONT

€ 288.50

1

5113004411
ref: 1
51130-04411-13L

TUBE,OUTER,RIGHT

€ 0.00

2

5114004411
ref: 2
51140-04411-13L

TUBE,OUTER,LEFT

€ 0.00

3

5111004420
ref: 3

TUBE,INNER

€ 39.50

4

5117304410
ref: 4

SEAL,DUST

€ 7.50

5

5115004410
ref: 5

NUT,OUTER

€ 10.50

6

5119304410
ref: 6

STOPPER

€ 2.50

7

5141004430
ref: 7

STEM,STEERING

€ 54.00

8

5131004430
ref: 8

HEAD,STEERING STEM

€ 16.00

9

0110708258
ref: 9
01500-08257

BOLT

€ 2.50

10

0832121088
ref: 10
08321-01087

LOCK WASHER

€ 2.00

11

5135204420
ref: 11

BOLT

€ 2.50

12

5135607010
ref: 12

WASHER,STEERING STEM HEAD

€ 5.00

13

5117604420
ref: 13

SPACER

€ 0.00

14

5117204420
ref: 14

GUIDE,SPRING

€ 0.00

15

5117104420
ref: 15

SPRING,NO.1

€ 0.00

16

5117204410
ref: 16

GUIDE,SPRING NO.2

€ 4.00

17

5118404420
ref: 17

SPRING,NO.2

€ 0.00

18

5157204410
ref: 18

CLIP

€ 0.00

19

5135104420
ref: 19

BOLT

€ 3.50

20

5135604420
ref: 20

WASHER(33.5X10.5X4.2)

€ 3.00

21

5233104420
ref: 21

SPACER,FR FORK INNER TUBE

€ 8.50

22

5233204420
ref: 22
09100-10302

BOLT,FRONT FORK INNER TUBE

€ 3.50

23

5161102200
ref: 23
51611-16A00

RACE,STEERING,INNER,UPPER

€ 6.50

24

5161202200
ref: 24
51612-29C00

RACE,STEERING,INNER,LOWER

€ 7.50

25

5162229C00
ref: 25
51622-29C20

RACE,STEERING,OUTER,LOWER

€ 4.50

26

0611105004
ref: 26

BALL

€ 1.50

27

5162102200
ref: 27
51621-16A01

RACE,STEERING,OUTER,UPPER

€ 7.00

28

5163104410
ref: 28
99800-10420

NUT,STEERING STEM

€ 7.50
