MAGNETO
JR50 1987 (H) USA (E03)

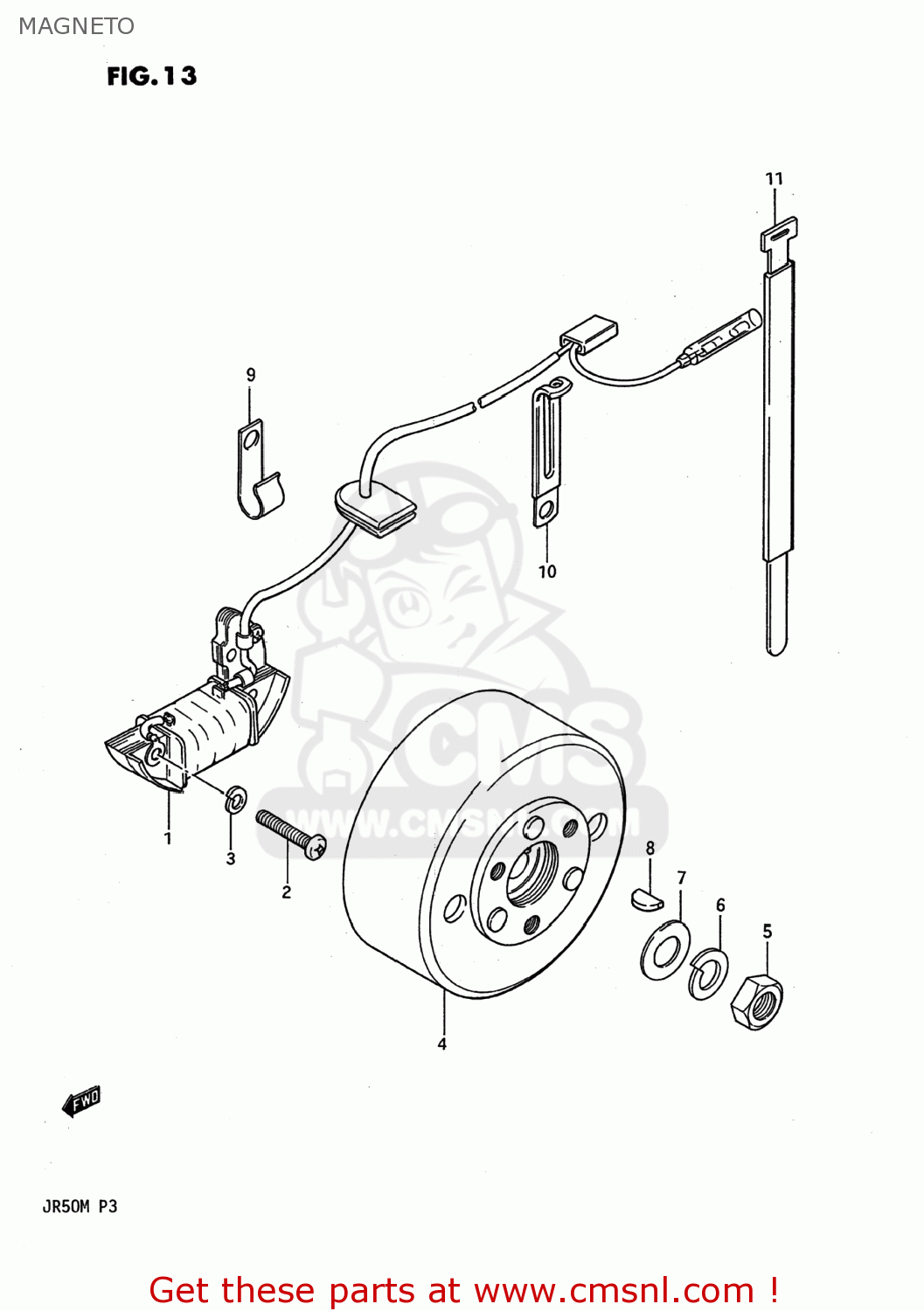

Magneto diagram JR50 1987 (H) USA (E03)
MAGNETO JR50 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210104430
ref: 1-1
32101-04432
STATOR ASSEMBLY
€ 95.50
1-2
3210104431
ref: 1-2
32101-04432
STATOR ASSEMBLY
€ 95.50
2
0211204258
ref: 2
02112-0425B
SCREW 4X25
€ 2.00
3
0832121047
ref: 3
08321-0104A
WASHER,LOCK 4M
€ 2.00
4
3210204430
ref: 4
ROTOR ASSY
€ 275.00
5
0831012108
ref: 5
08310-00107
NUT
€ 2.50
6
0832121107
ref: 6
08321-01107
WASHER,LOCK,10
€ 2.00
7
0832221108
ref: 7
08322-01107
WASHER
€ 2.50
8
0834131039
ref: 8
KEY
€ 2.00
9
0940305303
ref: 9
CLAMP
€ 2.00
10
0940406401
ref: 10
09404-06432
CLAMP L:35
€ 2.50
11-1
0940718301
ref: 11-1
CLAMP
€ 6.00
11-2
0940714301
ref: 11-2
09407-18301
CLAMP
€ 6.00
