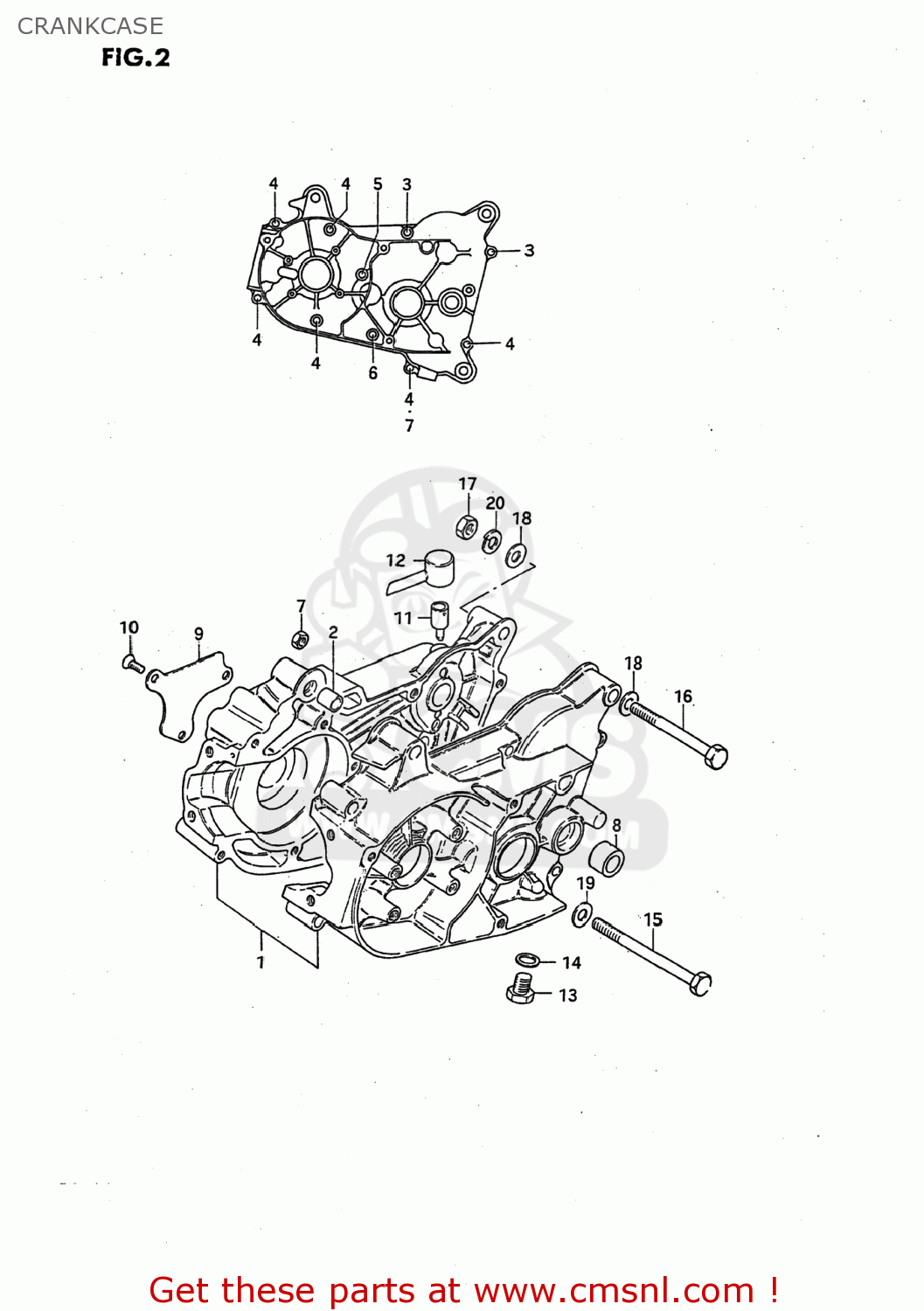

CRANKCASE

ref

part #

description

quantity

1

1130004840
ref: 1
11300-04843

CRANKCASE ASSEMBLY

€ 291.00

2

0421111129
ref: 2

PIN

€ 2.00

3-1

0211206308
ref: 3-1
02112-06307

SCREW 6X30

€ 2.50

3-2

0211206303
ref: 3-2
02112-0630A

SCREW 6X30

€ 2.50

4-1

0211206357
ref: 4-1

SCREW

€ 2.50

4-2

0211206353
ref: 4-2
02112-0635B

SCREW

€ 2.50

5-1

0211206407
ref: 5-1

SCREW

€ 2.00

5-2

0211206403
ref: 5-2
02112-0640A

SCREW

€ 2.00

6-1

0211206558
ref: 6-1
02112-06557

SCREW

€ 2.50

6-2

0211206553
ref: 6-2
02112-0655B

SCREW

€ 2.00

7-1

0831012068
ref: 7-1
08310-00067

NUT

€ 2.50

7-2

0831000063
ref: 7-2
08310-0006A

NUT 6MM

€ 2.00

8

0930410005
ref: 8

BUSH

€ 6.00

9

1252104000
ref: 9

PLATE,OIL RESERVOIR

€ 6.50

10-1

0212204108
ref: 10-1
02122-0410A

SCREW

€ 2.50

10-2

0212204103
ref: 10-2
02122-0410A

SCREW,UPPER

€ 2.50

11

2482109001
ref: 11

PLUG,T/M BREATHER

€ 5.50

12

2482220000
ref: 12

GASKET (NAS)

€ 16.00

13

0924710001
ref: 13

PLUG

€ 3.00

14

0916810002
ref: 14

GASKET(10X14X3.6) (NAS)

€ 2.00

15-1

0110708858
ref: 15-1
01500-08853

BOLT

€ 2.50

15-2

0150008853
ref: 15-2

BOLT

€ 2.50

15-3

0150008903
ref: 15-3

BOLT

€ 3.50

16-1

0110708708
ref: 16-1
01500-0870B

BOLT

€ 2.50

16-2

0150008703
ref: 16-2
01500-0870B

BOLT

€ 2.50

17-1

0831012088
ref: 17-1
08310-00087

NUT

€ 2.00

17-2

0831000083
ref: 17-2
08310-0008A

NUT

€ 1.50

18-1

0832211088
ref: 18-1
08322-01087

WASHER

€ 2.00

18-2

0832201083
ref: 18-2
08322-0108A

WASHER

€ 1.50

19-1

0916008030
ref: 19-1
09160-08128

WASHER

€ 2.50

19-2

0916008080
ref: 19-2
09160-08128

WASHER (8.2X22X3.2)

€ 2.50

20-1

0832121088
ref: 20-1
08321-01087

LOCK WASHER

€ 2.00

20-2

0832101083
ref: 20-2
08321-0108A

LOCK WASHER

€ 2.50
