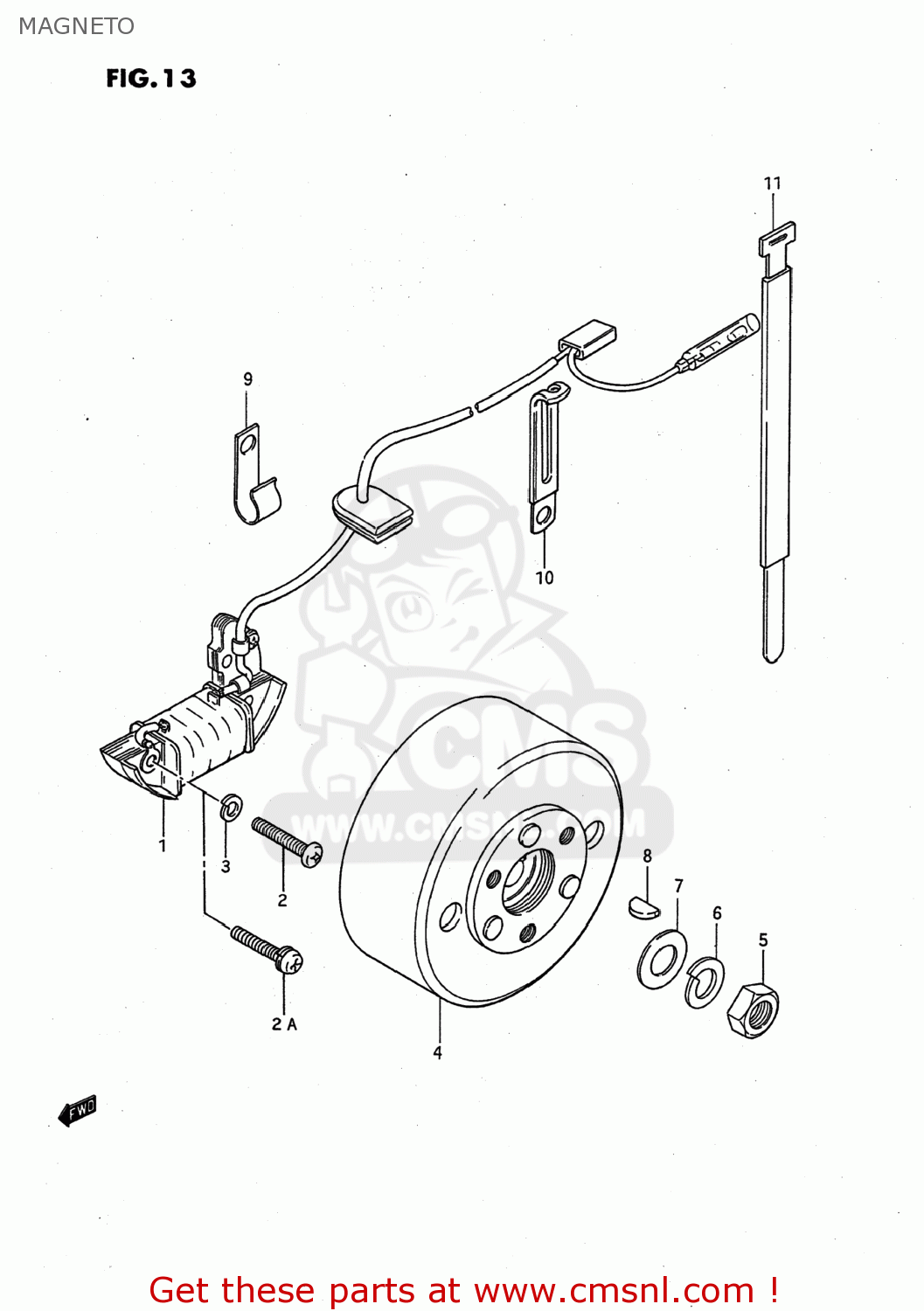

MAGNETO

ref

part #

description

quantity

1-1

3210104431
ref: 1-1
32101-04432

STATOR ASSEMBLY

€ 95.50

1-2

3210104432
ref: 1-2

COIL ASSY,IGNITION PRIMARY

€ 95.50

2

0211204258
ref: 2
02112-0425B

SCREW 4X25

€ 2.00

2A

0211234253
ref: 2A
02112-3425B

SCREW

€ 2.00

3

0832121047
ref: 3
08321-0104A

WASHER,LOCK 4M

€ 2.00

4

3210204430
ref: 4

ROTOR ASSY

€ 275.00

5-1

0831012108
ref: 5-1
08310-00107

NUT

€ 2.50

5-2

0831000103
ref: 5-2
08310-0010A

NUT

€ 2.00

6-1

0832121107
ref: 6-1
08321-01107

WASHER,LOCK,10

€ 2.00

6-2

0832101103
ref: 6-2
08321-0110A

WASHER

€ 3.00

7-1

0832221108
ref: 7-1
08322-01107

WASHER

€ 2.50

7-2

0832201103
ref: 7-2
08322-0110A

WASHER

€ 2.50

8

0834131039
ref: 8

KEY

€ 2.00

9

0940305303
ref: 9

CLAMP

€ 2.00

10-1

0940406402
ref: 10-1
09404-06432

CLAMP

€ 2.50

10-2

0940406429
ref: 10-2

CLAMP(L:45)

€ 2.50

11

0940714301
ref: 11
09407-18301

CLAMP

€ 6.00
