CLUTCH COVER - OIL PUMP

JR50 1998 (W) USA CANADA (E03 E28)

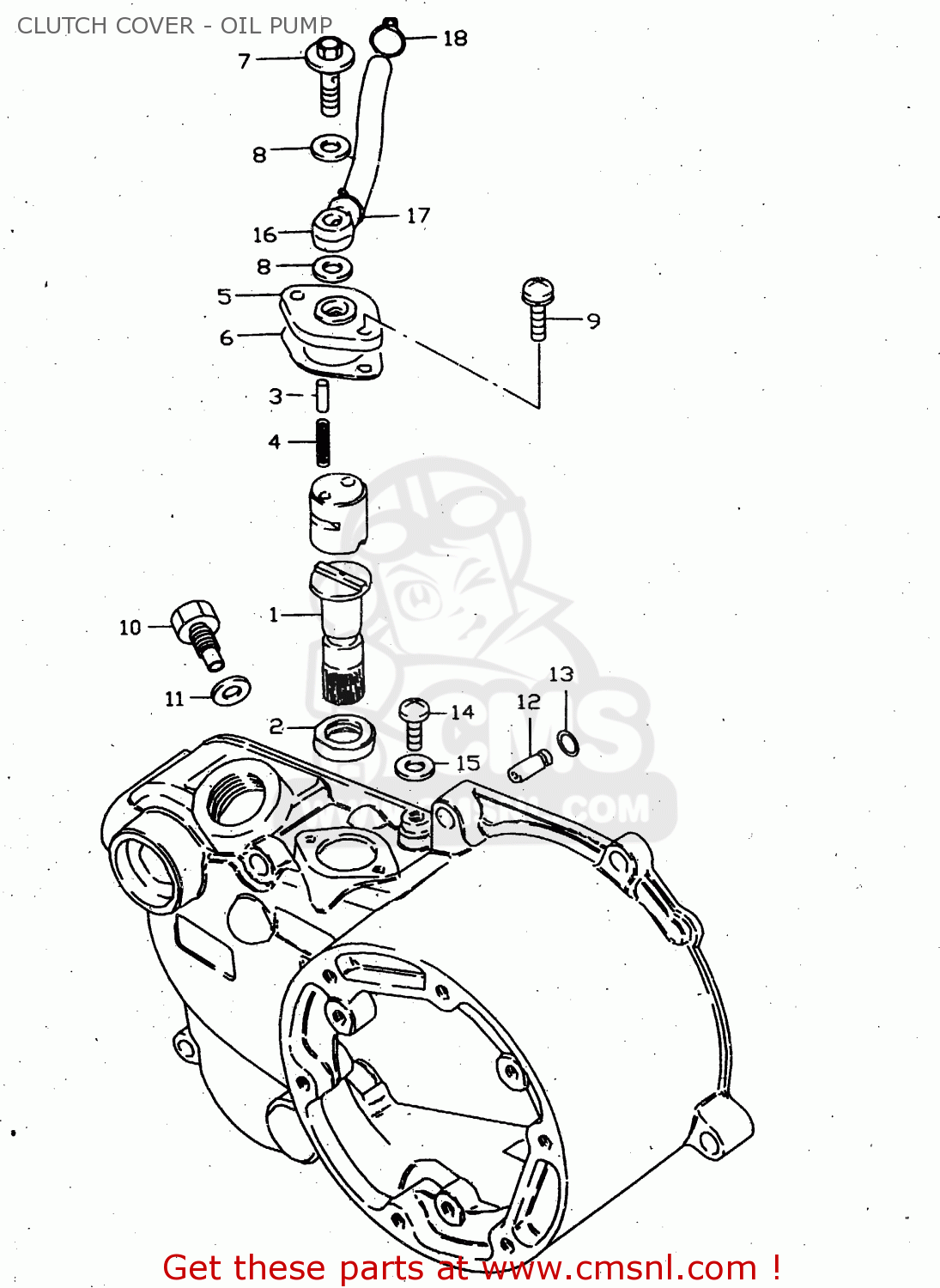

Clutch cover - oil pump diagram JR50 1998 (W) USA CANADA (E03 E28)

prices are in EUR

ref

part #

description

quantity

1130004852
ref: 0
INC. CLUTCH COVER

COVER SET,CLUTCH

€ 148.00

1616104000
ref: 1
NT:23

GEAR,OIL PUMP DRIVE

€ 27.50

0928412004
ref: 2

SEAL,OIL(12X18.5X3)

€ 11.00

0926102006
ref: 3

PIN(2.3X7.5)

€ 2.00

0944001001
ref: 4

SPRING

€ 2.00

1625104000
ref: 5

CAM,OIL PUMP

€ 16.50

1673104000H17
ref: 6

GASKET,OIL PUMP (NAS)

€ 3.50

0936006003
ref: 7

UNION BOLT

€ 5.00

0916306004
ref: 8

GASKET (NAS)

€ 0.00

0211234123
ref: 9

SCREW

€ 2.00

0913506007
ref: 10

BOLT(6X10)

€ 3.00

0916406003
ref: 11

WASHER

€ 2.50

1671004010
ref: 12

VALVE,CRANK CHECK

€ 9.50

0928003003
ref: 13

O RING(D:1.05,ID:3.1)

€ 2.50

0211205083
ref: 14

SCREW

€ 2.00

0916805001
ref: 15

GASKET(5X9.5X1) (NAS)

€ 2.00

1681007520
ref: 16

HOSE,INLET

€ 17.50

0940108401
ref: 17

CLIP

€ 1.50

0940108401
ref: 18

CLIP

€ 1.50

CLUTCH COVER - OIL PUMP

all assemblies
