KICK STARTER
JR50 1999 (X) USA CANADA (E03 E28)

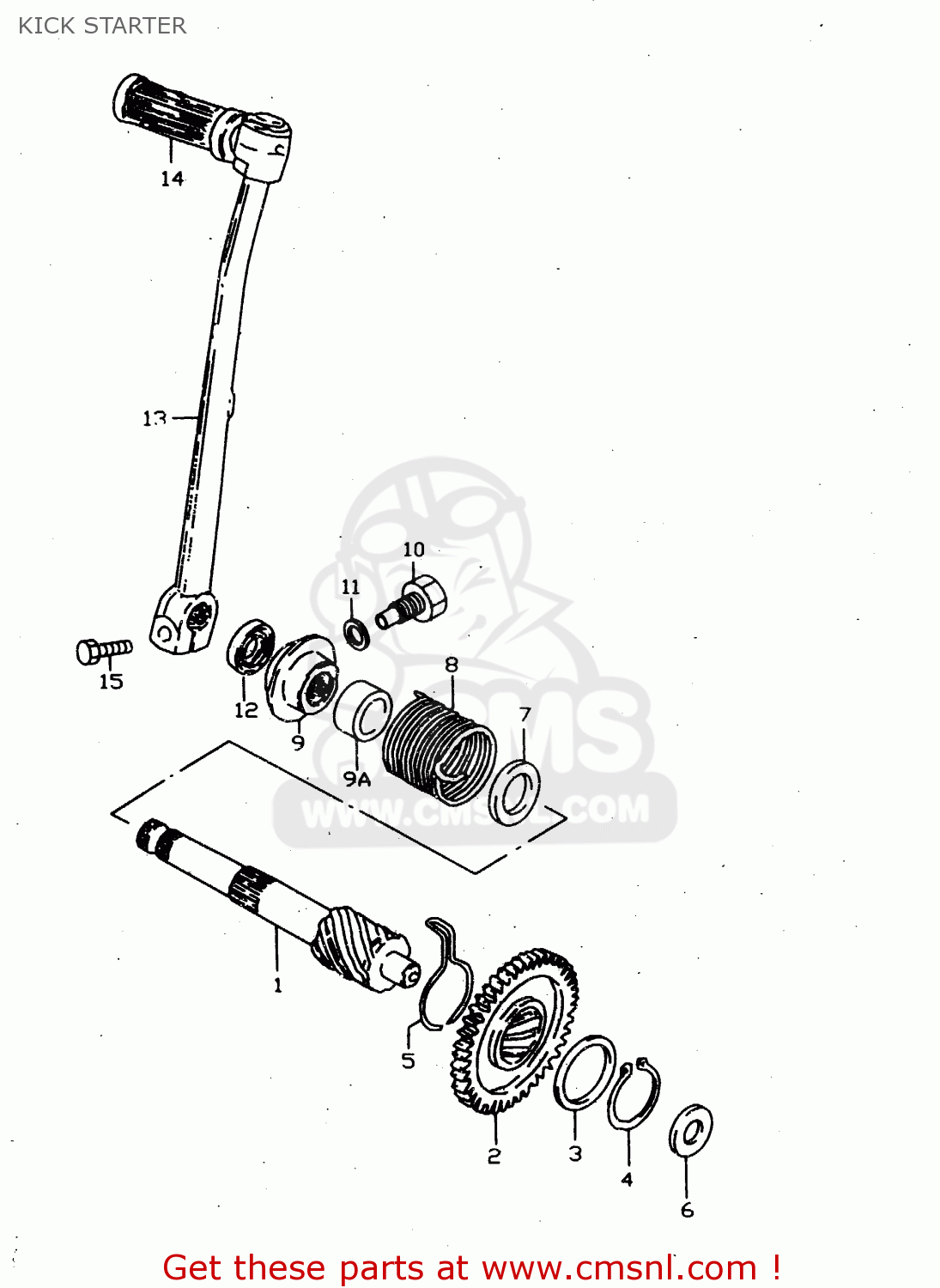

Kick starter diagram JR50 1999 (X) USA CANADA (E03 E28)
KICK STARTER JR50 1999 (X) USA CANADA (E03 E28)
×
prices are in EUR
ref
part #
description
quantity
1
2621104000
ref: 1
SHAFT,KICK STARTER
€ 33.50
2
2624104001
ref: 2
MODEL T/V
GEAR,KICK STARTER DRIVE
€ 50.00
2
2624104002
ref: 2
MODEL W/X
GEAR,KICK STARTER DRIIVE
€ 50.00
3
0821125321
ref: 3
WASHER
€ 3.00
4
0938025009
ref: 4
CIRCLIP
€ 1.50
5
0938430001
ref: 5
RETAINER,SNAP
€ 3.00
6
0821112261
ref: 6
WASHER
€ 2.50
7
0916016003
ref: 7
WASHER(16X30X1)
€ 2.50
8
0944841001
ref: 8
SPRING
€ 4.00
9
2623204400
ref: 9
MODEL T/V
LIFTER,KICK STARTER
€ 29.00
9
2623204401
ref: 9
MODEL W/X
LIFTER,KICK STARTER
€ 29.00
9A
2622104400
ref: 9A
MODEL W/X
GUIDE,KICK RETURN SPRING
€ 0.00
10
0913510003
ref: 10
BOLT(10X17)
€ 2.50
11
0916810002
ref: 11
GASKET(10X14X3.6) (NAS)
€ 2.00
12
0928514001
ref: 12
SEAL,OIL(14X24X6)
€ 9.00
13
2630004402
ref: 13
LEVER ASSY,KICK STARTER
€ 96.50
14
2635201000
ref: 14
RUBBER,KICK STARTER PEDAL
€ 3.50
15
0150006203
ref: 15
BOLT
€ 2.00
