CRANKCASE COVER
JR80 2001 (K1) USA (E03)

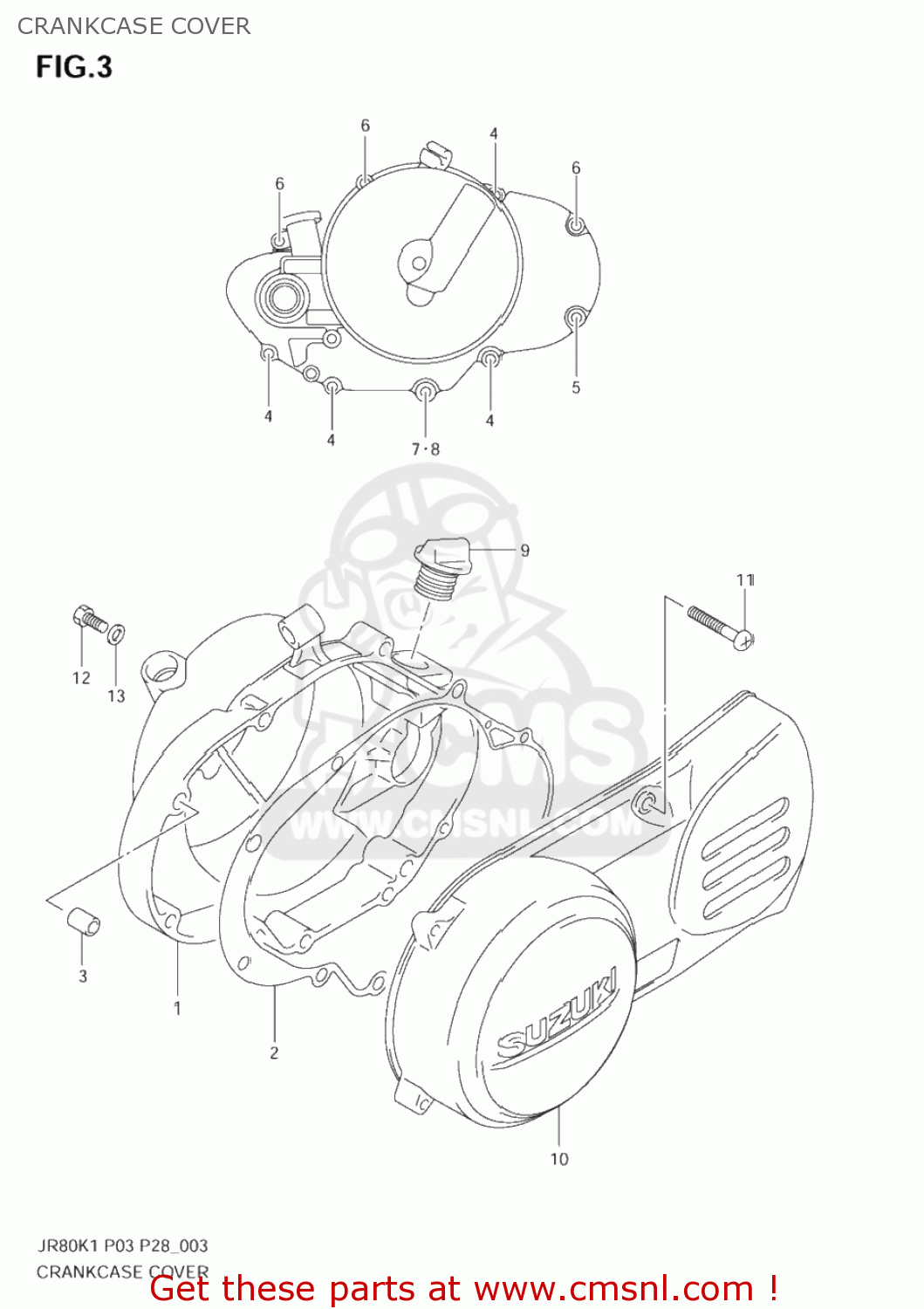

Crankcase cover diagram JR80 2001 (K1) USA (E03)
CRANKCASE COVER JR80 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134146001
ref: 1
COVER,CLUTCH
€ 111.50
2
1148246010
ref: 2
GASKET,CLUTCH COVER (NAS)
€ 9.00
3
0421109129
ref: 3
PIN
€ 2.00
4
0211206253
ref: 4
02112-0625A
SCREW
€ 1.50
5
0211206303
ref: 5
02112-0630A
SCREW 6X30
€ 2.50
6
0211206403
ref: 6
02112-0640A
SCREW
€ 2.00
7
0211206353
ref: 7
02112-0635B
SCREW
€ 2.50
8
0916806004
ref: 8
GASKET(6.2X11X1).2 (NAS)
€ 1.50
9
0925919001
ref: 9
PLUG
€ 6.00
10
1135146401
ref: 10
COVER,MAGNETO
€ 77.50
11
0211206253
ref: 11
02112-0625A
SCREW
€ 1.50
12
0912806044
ref: 12
SCREW(6X10)
€ 1.50
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
€ 2.00
