FRAME COVER

JR80 2001 (K1) USA (E03)

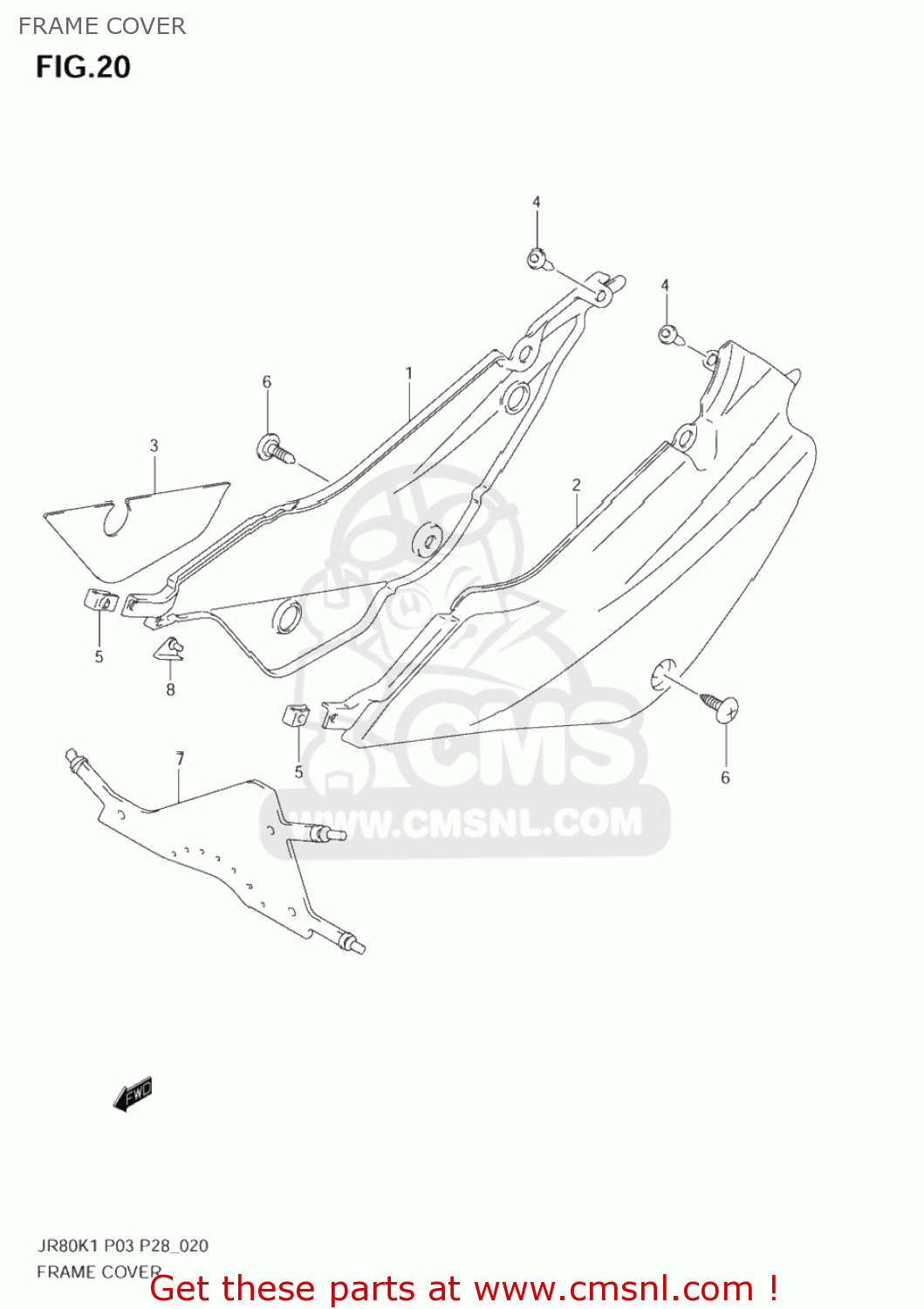

Frame cover diagram JR80 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

47111034A0YR1
ref: 1-1
47111-034A0-YU1

COVER, FRAME RH (YELLOW)

€ 48.50

1-2

47111034A0YU1
ref: 1-2

COVER,FRAME,R(YELLOW)

€ 48.50

1-3

47111034A030H
ref: 1-3

COVER,FRAME,R(WHITE)

€ 50.50

2-1

47211034A0YR1
ref: 2-1
47211-034A0-YU1

COVER, FRAME LH (YELLOW)

€ 48.50

2-2

47211034A0YU1
ref: 2-2

COVER,FRAME,L(YELLOW)

€ 48.50

2-3

47211034A030H
ref: 2-3

COVER,FRAME,L(WHITE)

€ 50.50

68136034A0291
ref: 3

TAPE,FRAME COVER,R

€ 0.00

09409063145PK
ref: 4

CLIP(BLACK)

€ 3.50

0914805038
ref: 5

NUT

€ 2.50

0913906083
ref: 6

SCREW(6X16)

€ 2.50

47219034A0
ref: 7

MUDGUARD,FRAME COVER

€ 0.00

47115034A0
ref: 8

CUSHION,FRAME COVER

€ 0.00
