FUEL COCK

LS650F 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

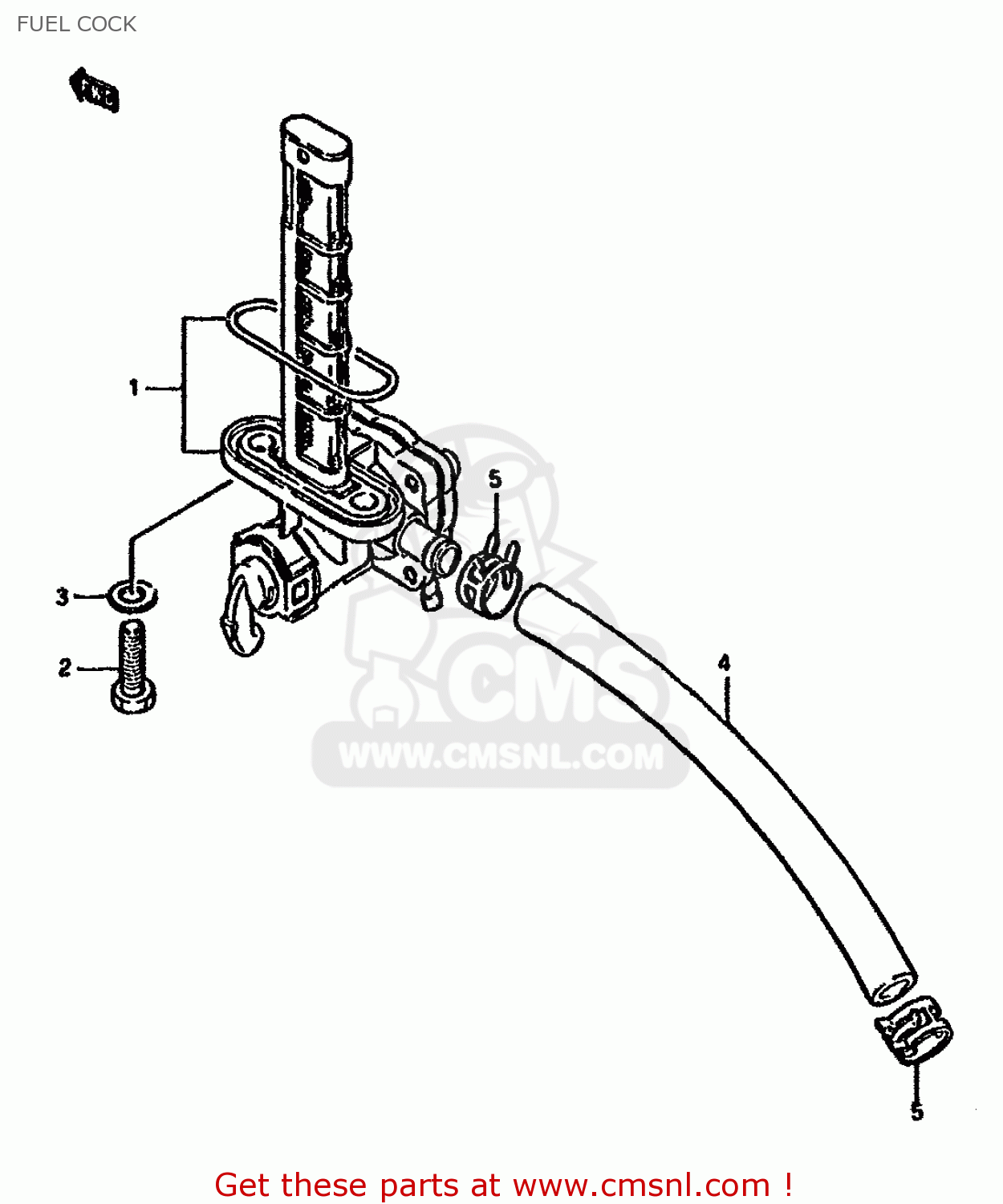

Fuel cock diagram LS650F 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

prices are in EUR

ref

part #

description

quantity

4430024B00
ref: 1

COCK ASSY,FUEL

€ 92.00

2-1

0912806057
ref: 2-1
MODEL G/J

BOLT(6X20)

€ 2.00

2-2

0912806006
ref: 2-2
MODEL K/L/M/R

BOLT(6X20)

€ 2.00

3-1

0916806026
ref: 3-1

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

3-2

0916806023
ref: 3-2
E17

GASKET(5.8X13X1.2) (NAS)

€ 2.00

4-1

0934307195
ref: 4-1
MODEL G/J

HOSE

€ 26.00

4-2

0935470123300
ref: 4-2
MODEL K/L/M/R

HOSE (7X12X300)

€ 26.00

0940112406
ref: 5

CLAMP

€ 2.50
