TURN SIGNAL LAMP (MODEL R)

LS650F 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

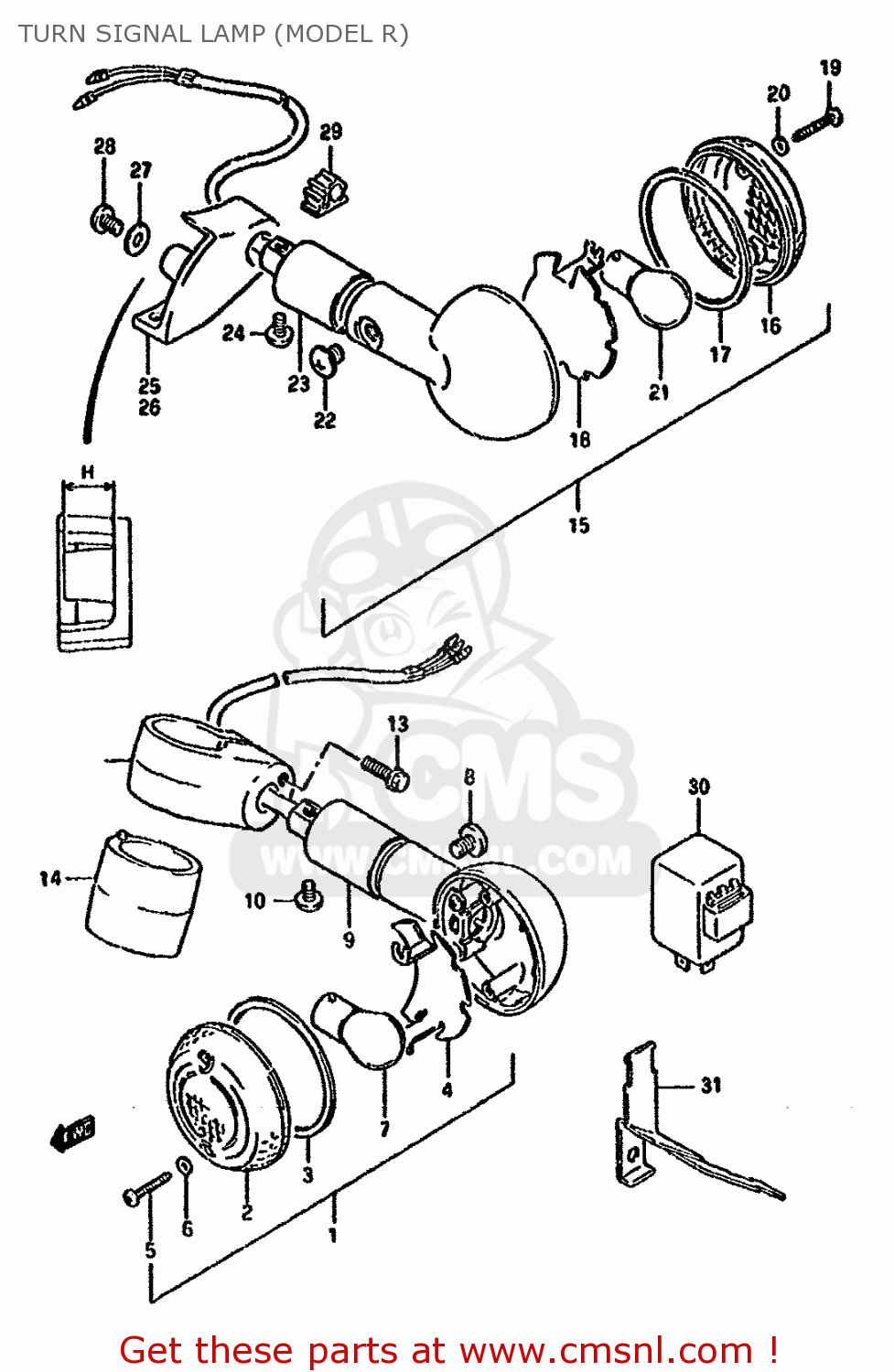

Turn signal lamp (model r) diagram LS650F 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)

TURN SIGNAL LAMP (MODEL R) LS650F 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
TURN SIGNAL LAMP (MODEL R) LS650F 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
TURN SIGNAL LAMP (MODEL R) LS650F 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E24 E25 E34 39)
prices are in EUR
ref
part #
description
quantity
1
3560138A22
ref: 1
LAMP ASSY,FR TURN SIGNAL
3560138A22
€ 93.50
2
3561238A01
ref: 2
LENS
3561238A01
€ 10.50
3
3561338A00
ref: 3
GASKET (NAS)
3561338A00
€ 11.50
4
3562438A20
ref: 4
REFLECTOR
3562438A20
€ 71.00
5
0321104253
ref: 5
SCREW
0321104253
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
3562338A01
ref: 8
SCREW
3562338A01
€ 5.50
9
3561938A01
ref: 9
STAY,TURNSIGNAL LAMP
3561938A01
€ 35.50
10
0214206107
ref: 10
SCREW
0214206107
€ 2.00
11
3567124B00
ref: 11
BRACKET,FR TURNSIGNAL LAMP,R
€ 45.50
12
3568124B00
ref: 12
BRACKET,FR TURNSIGNAL LAMP,L
3568124B00
€ 45.50
13
0154705257
ref: 13
BOLT
0154705257
€ 2.00
14
3569524B20
ref: 14
E17,E18,E22,E39
SPACER,FR TURNSIGNAL LAMP BRKT
3569524B20
€ 23.00
15
3560338A22
ref: 15
LAMP ASSY,RR TURNSIGNAL,R
3560338A22
€ 98.00
16
3565238A21
ref: 16
LENS
3565238A21
€ 16.50
17
3561338A00
ref: 17
GASKET (NAS)
3561338A00
€ 11.50
18
3565438A20
ref: 18
REFLECTOR
3565438A20
€ 83.50
19
0321104253
ref: 19
SCREW
0321104253
€ 2.00
20
3562743010
ref: 20
GASKET (NAS)
3562743010
€ 2.00
21
0947112045
ref: 21
BULB(12V21W)
0947112045
€ 5.00
22
3562338A01
ref: 22
SCREW
3562338A01
€ 5.50
23
3561938A01
ref: 23
STAY,TURNSIGNAL LAMP
3561938A01
€ 35.50
24-1
0214206167
ref: 24-1
SCREW
0214206167
€ 2.00
24-2
0211206107
ref: 24-2
E18,E22,E39
SCREW
0211206107
€ 1.50
25
3562124B21
ref: 25
E18,E22,E39
BRACKET,RR TURNSIGNAL,R
3562124B21
€ 31.50
26
3564124B21
ref: 26
E18,E22,E39
BRACKET,RR TURNSIGNAL,L
€ 38.50
27
0916006066
ref: 27
E18,E22,E39
WASHER(6.5X20X1.6)
0916006066
€ 2.00
28
0214206127
ref: 28
E18,E22,E39
SCREW 6X12
0214206127
€ 1.50
29
0940307315
ref: 29
CLAMP
€ 3.50
30
3861045D01
ref: 30
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
31
3862124B10
ref: 31
BRACKET,TURNSIGNAL RELAY
€ 0.00
25
3562124B20
ref: 25
E16,E18,E22,E39,E77,
BRACKET,REAR RH
3562124B20
€ 31.50
25A
3562124B21
ref: 25A
E16,E18,E22,E39,E77,
BRACKET,RR TURNSIGNAL,R
3562124B21
€ 31.50
26
3564124B20
ref: 26
E16,E18,E22,E39,E77,
BRACKET,REAR LH
3564124B20
€ 38.50
26A
3564124B21
ref: 26A
E16,E18,E22,E39,E77,
BRACKET,RR TURNSIGNAL,L
€ 38.50
27
0916006020
ref: 27
E16,E18,E22,E39,E77
WASHER
0916006020
€ 2.00
28
0214206127
ref: 28
E16,E18,E22,E39,E77
SCREW 6X12
0214206127
€ 1.50
29
0940307315
ref: 29
CLAMP
€ 3.50
30
3861045091
ref: 30
E22,MODEL G E2
RELAY ASSY,TUR
€ 67.50
31
3861031310
ref: 31
E1,E4,E15,E16,E17,E1
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
32
3862124B01
ref: 32
MODEL G
BRACKET,TURN SIGNAL RELAY
€ 2.00
33
3862124B10
ref: 33
MODEL J/K/L/M
BRACKET,TURNSIGNAL RELAY
€ 0.00
