CLUTCH

LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)

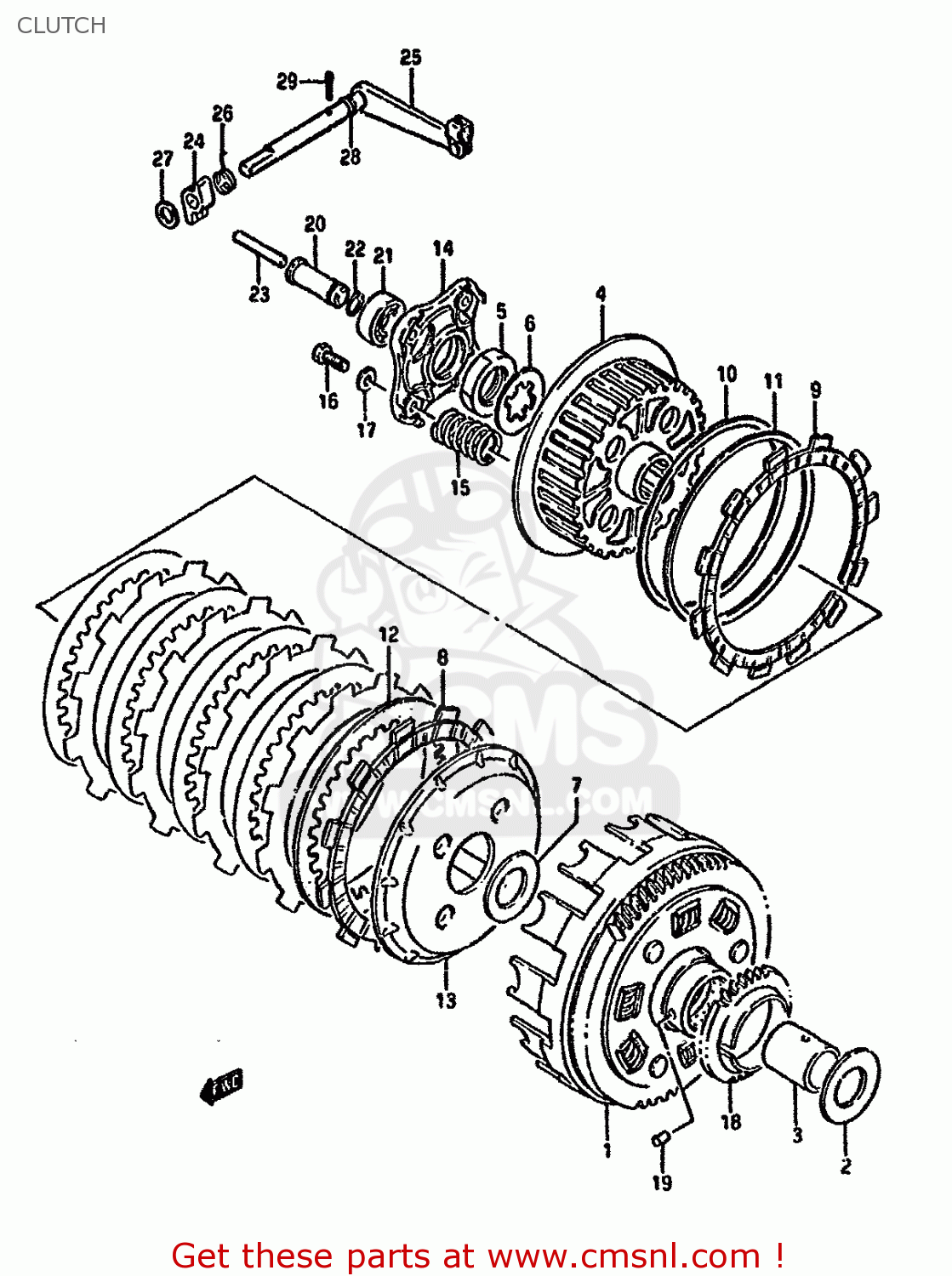

Clutch diagram LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)

CLUTCH LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)
CLUTCH LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)
CLUTCH LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)
prices are in EUR
ref
part #
description
quantity
1-1
2120024B01
ref: 1-1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 263.50
1-2
2120024B11
ref: 1-2
MODEL M/R E2,E15,E16
GEAR ASSEMBLY,PRIMARY DRIVE
€ 285.00
2
0821122443
ref: 2
WASHER
0821122443
€ 3.00
3
0918022023
ref: 3
SPACER(22X28X32.5)
0918022023
€ 15.50
4
2141137401
ref: 4
HUB,CLUTCH SLEEVE
2141137401
€ 78.00
5
0914022009
ref: 5
NUT
0914022009
€ 6.00
6
0916722005
ref: 6
WASHER,LOCK
0916722005
€ 2.50
7
0821122403
ref: 7
WASHER
0821122403
€ 4.00
8
2144137400
ref: 8
PLATE,CLUTCH DRIVE (NAS)
2144137400
€ 20.50
9
2144237401
ref: 9
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
2144237401
€ 11.50
10
2147137400
ref: 10
SEAT,WAVE WASHER(T:1.4)
2147137400
€ 8.00
11
0916400004
ref: 11
WASHER
0916400004
€ 9.00
12
2145114A00
ref: 12
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
2145114A00
€ 6.50
13
2146237400
ref: 13
DISC,CLUTCH PRESSURE
2146237400
€ 41.00
14
2146537400
ref: 14
PLATE,RELEASE
2146537400
€ 11.50
15
0944020016
ref: 15
SPRING
0944020016
€ 5.00
16
0110706207
ref: 16
BOLT
0110706207
€ 2.00
17
0832221067
ref: 17
WASHER
0832221067
€ 2.00
18
1632124B00
ref: 18
GEAR,ENG OIL PUMP DRIVE
1632124B00
€ 32.50
19
0926106002
ref: 19
PIN(6X6)
0926106002
€ 1.50
20
2312124B02
ref: 20
PIECE,CLUTCH PUSH
2312124B02
€ 14.00
21
0811060010
ref: 21
BEARING
0811060010
€ 15.00
22
0928009005
ref: 22
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
23-1
2311124B00445
ref: 23-1
ROD,CLUTCH PUSH
2311124B00445
€ 5.50
23-2
2311124B00455
ref: 23-2
ROD,CLUTCH PUSH
2311124B00455
€ 5.50
23-3
2311124B00465
ref: 23-3
ROD,CLUTCH PUSH
2311124B00465
€ 5.50
24
2326324B01
ref: 24
CAM,CLUTCH RELEASE
2326324B01
€ 7.00
25
2327024B03
ref: 25
ARM ASSY,CLUTCH RELEASE
2327024B03
€ 72.00
26
0944813010
ref: 26
SPRING
0944813010
€ 14.50
27
0821110141
ref: 27
WASHER,THRUST
€ 2.00
28
0928007004
ref: 28
O RING(D:1.9,ID:6.8)
0928007004
€ 1.50
29
0411120208
ref: 29
PIN 20X20
0411120208
€ 1.50
