Buy Suzuki LS Parts Online


HANDLEBAR-CONTROL CABLE (LS650PG/PJ/PK/PL,MODEL M/R)

LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)

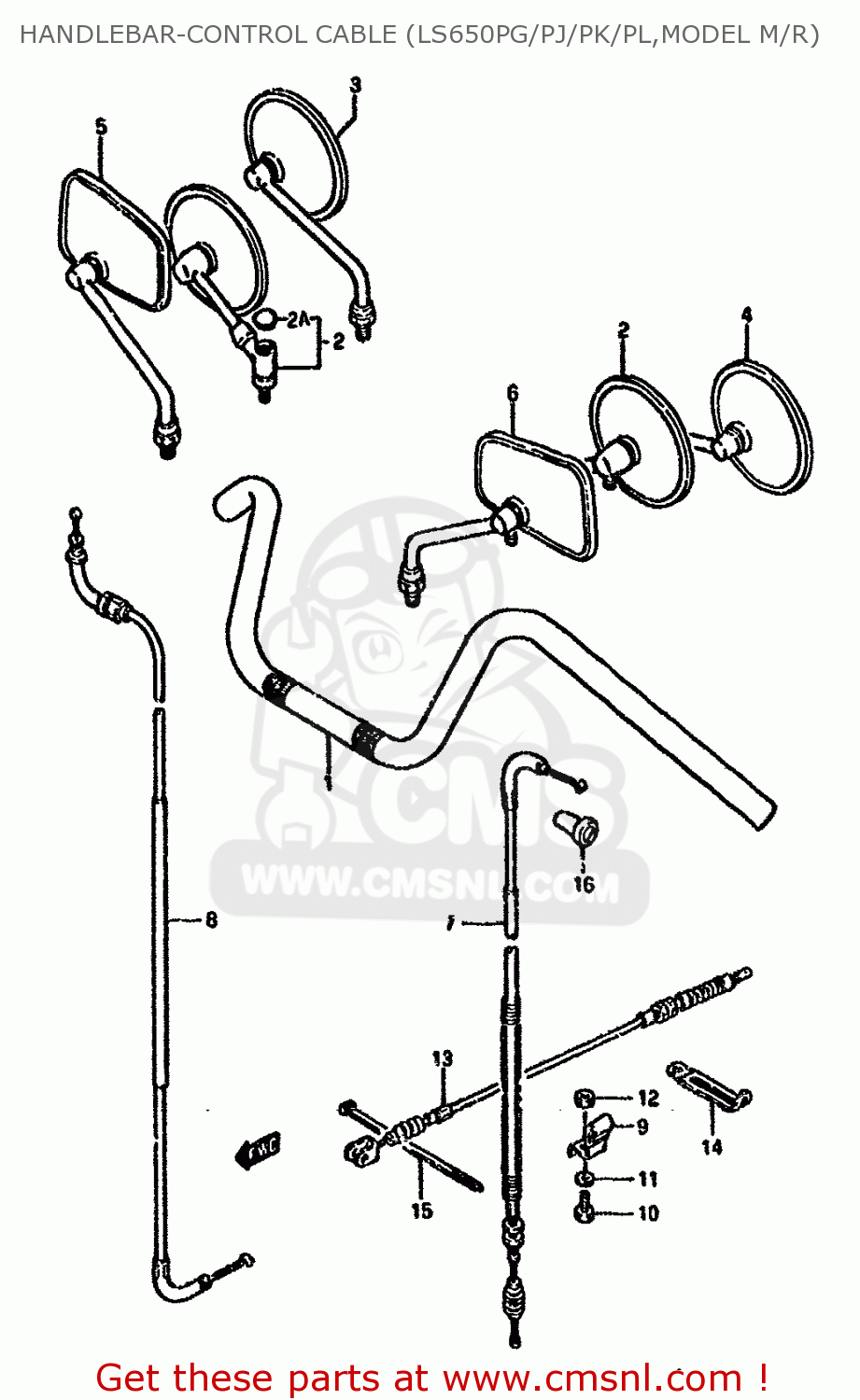

Handlebar-control cable (ls650pg/pj/pk/pl,model m/r) diagram LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)

HANDLEBAR-CONTROL CABLE (LS650PG/PJ/PK/PL,MODEL M/R) LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)
HANDLEBAR-CONTROL CABLE (LS650PG/PJ/PK/PL,MODEL M/R) LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)
HANDLEBAR-CONTROL CABLE (LS650PG/PJ/PK/PL,MODEL M/R) LS650P 1991 (M) (E01 E02 E04 E15 E16 E17 E18 E22 E25 E39 E53)
prices are in EUR
ref
part #
description
quantity
1-1
5611024B00
ref: 1-1
MODEL G, 56110-24B20
HANDLEBAR
€ 205.50
1-2
5611024B20
ref: 1-2
MODEL G/J/K/L/M
HANDLEBAR
€ 205.50
1-3
5611024B40
ref: 1-3
MODEL J/K, 56110-24B
HANDLEBAR
€ 205.50
1-4
5611024B41
ref: 1-4
MODEL R
HANDLEBAR
€ 205.50
2
5650038A60
ref: 2
E2,E4,E17,E21,E22,E3
MIRROR ASSY,RH
5650038A60
€ 297.50
2A
5652428600
ref: 2A
CAP
5652428600
€ 4.00
3
5650045670
ref: 3
E16,E24
MIRROR ASSY,REAR VIEW RH
€ 47.00
4
5660045670
ref: 4
E16,E24
MIRROR ASSY,REAR VIEW LH
5660045670
€ 47.00
5
5650024B00
ref: 5
E1,E15,E18,E25,E39
MIRROR ASSEMBLY,REAR VIEW
5650024B00
€ 51.00
6
5660024B00
ref: 6
E1,E15,E18,E25,E39
MIRROR ASSEMBLY,REAR VIEW
5660024B00
€ 189.00
7
5820024B12
ref: 7
CABLE ASSY,CLUTCH
5820024B12
€ 46.50
8
5830024B12
ref: 8
CABLE ASSY,THROTTLE
5830024B12
€ 43.50
9
5862124B00
ref: 9
GUIDE,CABLE
€ 4.50
10-1
0110706165
ref: 10-1
MODEL G/J/K/L/M
BOLT 6X16
0110706165
€ 2.00
10-2
0157006163
ref: 10-2
MODEL R
BOLT
0157006163
€ 2.50
11
0832121064
ref: 11
MODEL G/J/K/L/M
WASHER,LOCK
0832121064
€ 2.00
12-1
0831011065
ref: 12-1
MODEL G/J/K/L/M
NUT
€ 2.00
12-2
0831000063
ref: 12-2
MODEL R
NUT 6MM
0831000063
€ 2.00
13
5883024B00
ref: 13
CABLE COMP,STOP LAMP SWITCH
5883024B00
€ 24.00
14
0940408405
ref: 14
CLAMP
€ 3.50
15
0940709402
ref: 15
CLAMP
0940709402
€ 3.00
16
5827331000
ref: 16
BOOT,CLUTCH CABLE
5827331000
€ 2.50
