CYLINDER HEAD
LS650P SAVAGE 1986 (G) USA (E03)

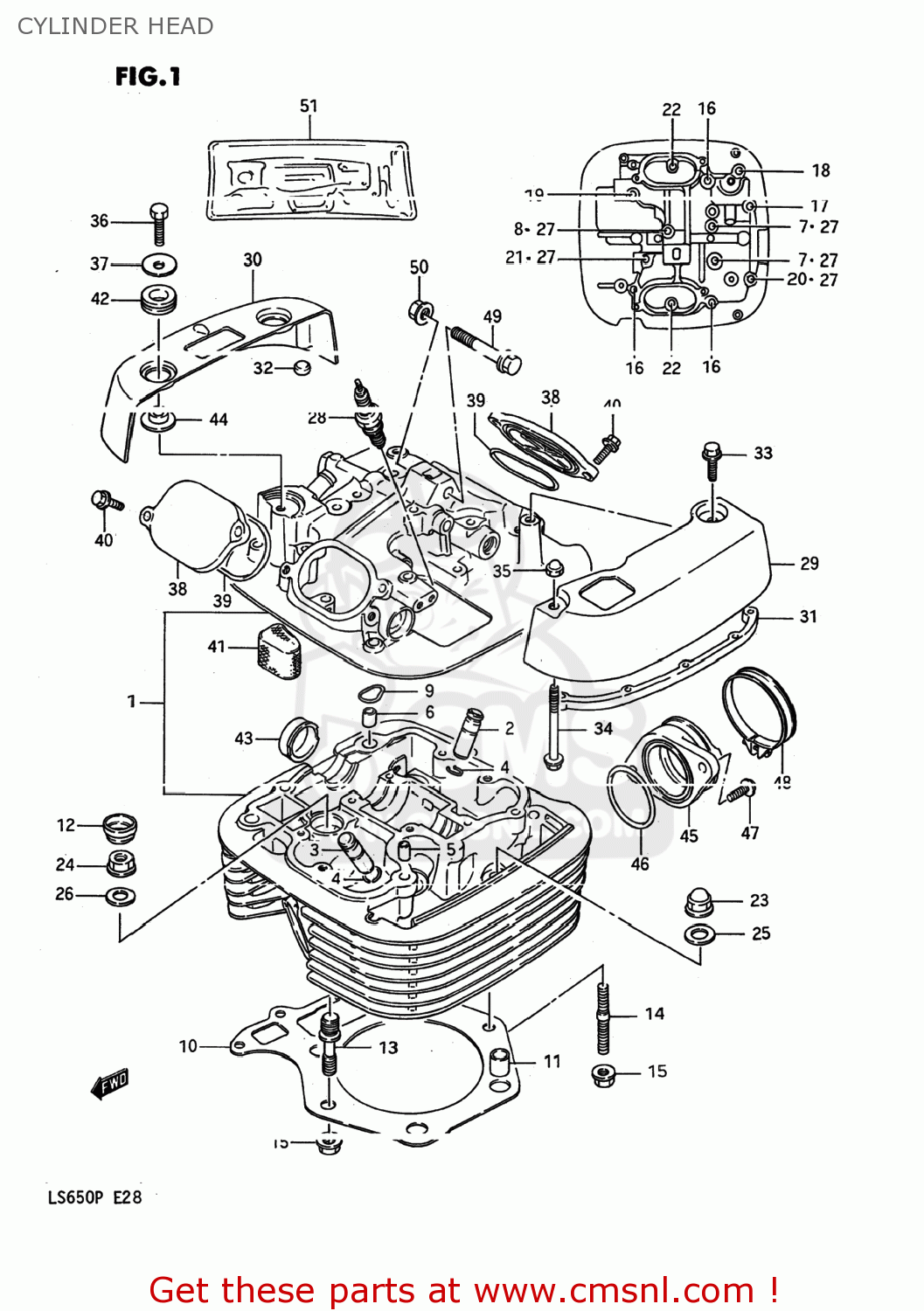

Cylinder head diagram LS650P SAVAGE 1986 (G) USA (E03)
CYLINDER HEAD LS650P SAVAGE 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110024B06
ref: 1
HEAD ASSY,CYLINDER
€ 1,018.50
2
1111544B70
ref: 2
GUIDE,VALVE
€ 19.00
3
1111537470
ref: 3
GUIDE,VALVE
€ 20.00
4
0938110003
ref: 4
RING,SNAP
€ 2.50
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6
0920611011
ref: 6
09206-11004
PIN(11X14)
€ 6.00
7
0910306064
ref: 7
BOLT(6X60)
€ 2.50
8
0910306103
ref: 8
BOLT(6X70)
€ 2.50
9
1117824B00
ref: 9
O RING,CYL HEAD COVER
€ 2.00
10
1114124B02
ref: 10
11141-24B03
GASKET,CYLINDER HEAD (NAS)
€ 38.00
11
0920613001
ref: 11
04211-13189
PIN
€ 2.50
12
1114537400
ref: 12
11145-41B01
NUT,CYLINDER HEAD SEAL
€ 12.00
13
0910808205
ref: 13
BOLT,STUD
€ 10.50
14
0910808206
ref: 14
BOLT,STUD(8X31)
€ 3.50
15
0831616088
ref: 15
08316-10087
NUT
€ 2.50
16
0910306026
ref: 16
BOLT(6X39)
€ 2.00
17
0910306033
ref: 17
BOLT(6X125)
€ 3.50
18
0910306052
ref: 18
BOLT(6X115)
€ 5.00
19
0910306064
ref: 19
BOLT(6X60)
€ 2.50
20
0910306085
ref: 20
BOLT(6X130)
€ 4.50
21
0910306102
ref: 21
BOLT(6X55)
€ 2.50
22
0151706257
ref: 22
01550-06257
BOLT 6X25
€ 2.50
23
0915909003
ref: 23
NUT
€ 6.50
24
0915909004
ref: 24
NUT
€ 2.00
25
0916810017
ref: 25
GASKET(10.5X22X2) (NAS)
€ 3.50
26
0916810031
ref: 26
GASKET(10.2X20X2).3 (NAS)
€ 2.00
27
0916806023
ref: 27
GASKET(5.8X13X1.2) (NAS)
€ 2.00
28-1
0948200334
ref: 28-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
28-2
0948200335111
ref: 28-2
09482-00335
SPARK PLUG X24EPR-U9
€ 4.00
28-3
0948200354
ref: 28-3
PLUG,SPARK(DPR7EA-9)
€ 4.00
28-4
0948200355111
ref: 28-4
09482-00354
SPARK PLUG X22EPR-U9
€ 4.00
29
1117124B04
ref: 29
CAP,HEAD COVER,L
€ 132.00
30
1117224B04
ref: 30
CAP,CYLINDER HEAD COVER,R
€ 132.00
31
1127224B01
ref: 31
CUSHION,HEAD COVER CAP,L
€ 7.00
32
1127324B00
ref: 32
CUSHION,R CAP
€ 4.00
33
0151706207
ref: 33
01550-06207
BOLT 6X20
€ 2.50
34
0151706658
ref: 34
01550-06657
BOLT 6X65
€ 3.00
35
0831321067
ref: 35
08313-20067
NUT
€ 2.00
36
0110706257
ref: 36
01500-06257
BOLT
€ 2.00
37
0916006095
ref: 37
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
38
1117524B02
ref: 38
CAP,INSPECTION
€ 14.50
39
0928060004
ref: 39
O RING(D:2.4,ID:23)
€ 4.50
40
0151706207
ref: 40
01550-06207
BOLT 6X20
€ 2.50
41
1118624B02
ref: 41
SEPARATOR,OIL BREATHER COVER
€ 9.00
42
0932013015
ref: 42
CUSHION
€ 3.00
43
0924130008
ref: 43
PLUG(OD:30)
€ 7.00
44
0930106007
ref: 44
BUSH
€ 3.50
45
1311014A11
ref: 45
13101-14A10
PIPE,INTAKE
€ 38.50
46
0928046002
ref: 46
O RING(D:2.4,ID:45.7)
€ 9.50
47
0215206205
ref: 47
02112-0620A
SCREW
€ 2.00
48
0940258207
ref: 48
09402-58208
CLAMP
€ 5.50
49
0910308170
ref: 49
09103-08339
BOLT
€ 3.50
50
0831931087
ref: 50
NUT
€ 2.50
51
1140024855
ref: 51
11400-24858
GASKET SET (NAS)
€ 143.50
