REAR WHEEL
LS650P SAVAGE 1986 (G) USA (E03)

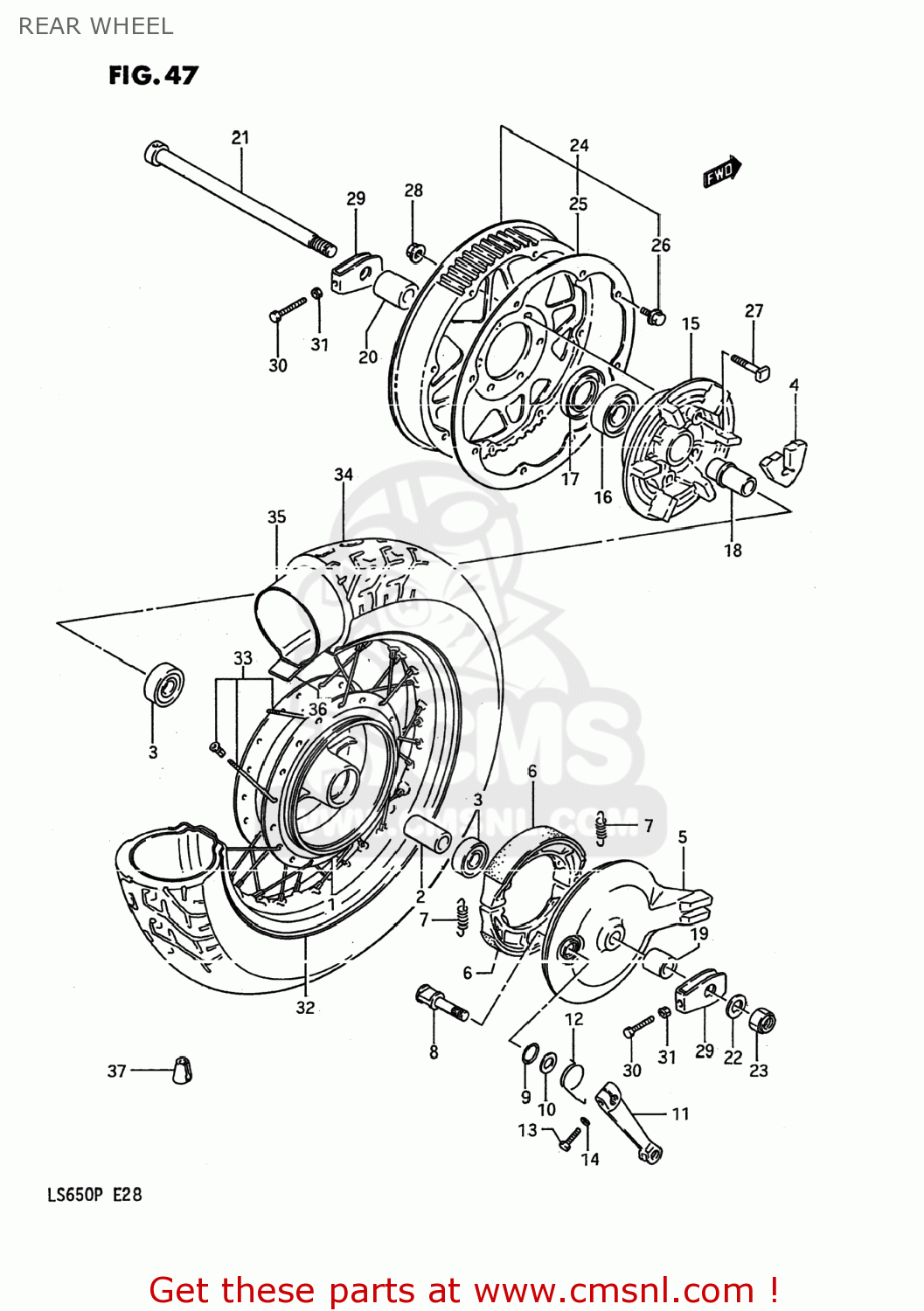

Rear wheel diagram LS650P SAVAGE 1986 (G) USA (E03)
REAR WHEEL LS650P SAVAGE 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411024B00
ref: 1
HUB,RR WHEEL
€ 461.00
2
0918017069
ref: 2
SPACER(17.5X25X70)
€ 15.00
3
0814363037
ref: 3
BEARING
€ 23.00
4
6465131001
ref: 4
ABSORBER,RR HUB SHOCK
€ 9.50
5
6421024B00
ref: 5
64210-24B01
PANEL,REAR HUB
€ 215.00
6-1
6441011301
ref: 6-1
64400-11860
SHOE,BRAKE
€ 29.50
6-2
6441044B00
ref: 6-2
64400-44810
SHOE,BRAKE
€ 44.00
7
5542030000
ref: 7
SPRING,BRAKE SHOE
€ 3.50
8
5444008004
ref: 8
CAM,BRAKE
€ 19.00
9
0928015001
ref: 9
09280-15003
O-RING,BOSS
€ 2.00
10
0916015001
ref: 10
09160-15048
WASHER (15X24X1.6)
€ 2.50
11
6445124B00
ref: 11
LEVER,RR BRAKE CAM
€ 26.50
12
0944833006
ref: 12
SPRING
€ 11.00
13-1
0110706257
ref: 13-1
01500-06257
BOLT
€ 2.00
13-2
0113706258
ref: 13-2
01570-06257
BOLT
€ 2.50
14
0832121067
ref: 14
08321-01067
WASHER,LOCK
€ 2.50
15
6461131003
ref: 15
DRUM,RR SPROCKET MOUNTING
€ 140.00
16
0926225073
ref: 16
BEARING(25X62X17)
€ 21.50
17
0928533001
ref: 17
SEAL,OIL(33X62X7)
€ 20.00
18
6473331300
ref: 18
RETAINER,RR SPROCKET DRUM
€ 16.50
19
0918017082
ref: 19
SPACER(17X28X22.3)
€ 7.00
20
0918017083
ref: 20
SPACER(17X33X35.3)
€ 11.00
21
6471124B01
ref: 21
64711-24B02
AXLE,REAR
€ 42.00
22
0916017013
ref: 22
09160-17050
WASHER (17X30X3.2)
€ 2.00
23
0915916002
ref: 23
NUT
€ 5.00
24
6451024B01
ref: 24
64510-24B02
SPROCKET,REAR
€ 370.00
25
6451224B01
ref: 25
PLATE,REAR SPROCKET
€ 35.50
26
0151706128
ref: 26
01550-06127
BOLT
€ 2.50
27
0910510005
ref: 27
BOLT(10X40)
€ 3.00
28
0831931105
ref: 28
08319-3110A
NUT 10MM
€ 3.00
29
6141024B00
ref: 29
61410-24B01
ADJUSTER,BELT
€ 10.00
30
0910408023
ref: 30
BOLT 8X35
€ 2.00
31
0831022088
ref: 31
08310-00087
NUT 8MM
€ 2.00
32-1
6531124B00
ref: 32-1
65311-24B01
RIM,REAR WHEEL
€ 247.00
32-2
6531124B01
ref: 32-2
RIM,RR WHEEL WM(2.75X15 M/C)
€ 247.00
33
6532024B00
ref: 33
SPOKE SET,RR WHEEL
€ 49.50
34-1
6510024B00
ref: 34-1
65100-24B02
TIRE
€ 126.00
34-2
6510024B01
ref: 34-2
65100-24B02
TIRE,REAR 140/80-15M/C
€ 126.00
34-2
6510024B01
ref: 34-2
65100-24B02
TIRE,REAR 140/80-15M/C
€ 126.00
35
6520024B00
ref: 35
65200-38A00
TUBE ASSEMBLY,WHEEL,INNER
€ 32.50
36
6526124B01
ref: 36
65261-26F00
PROTECTOR
€ 5.00
37-1
5541238A00
ref: 37-1
55412-41F00
BALANCER,WHEEL
€ 6.50
37-2
5541338A00
ref: 37-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
